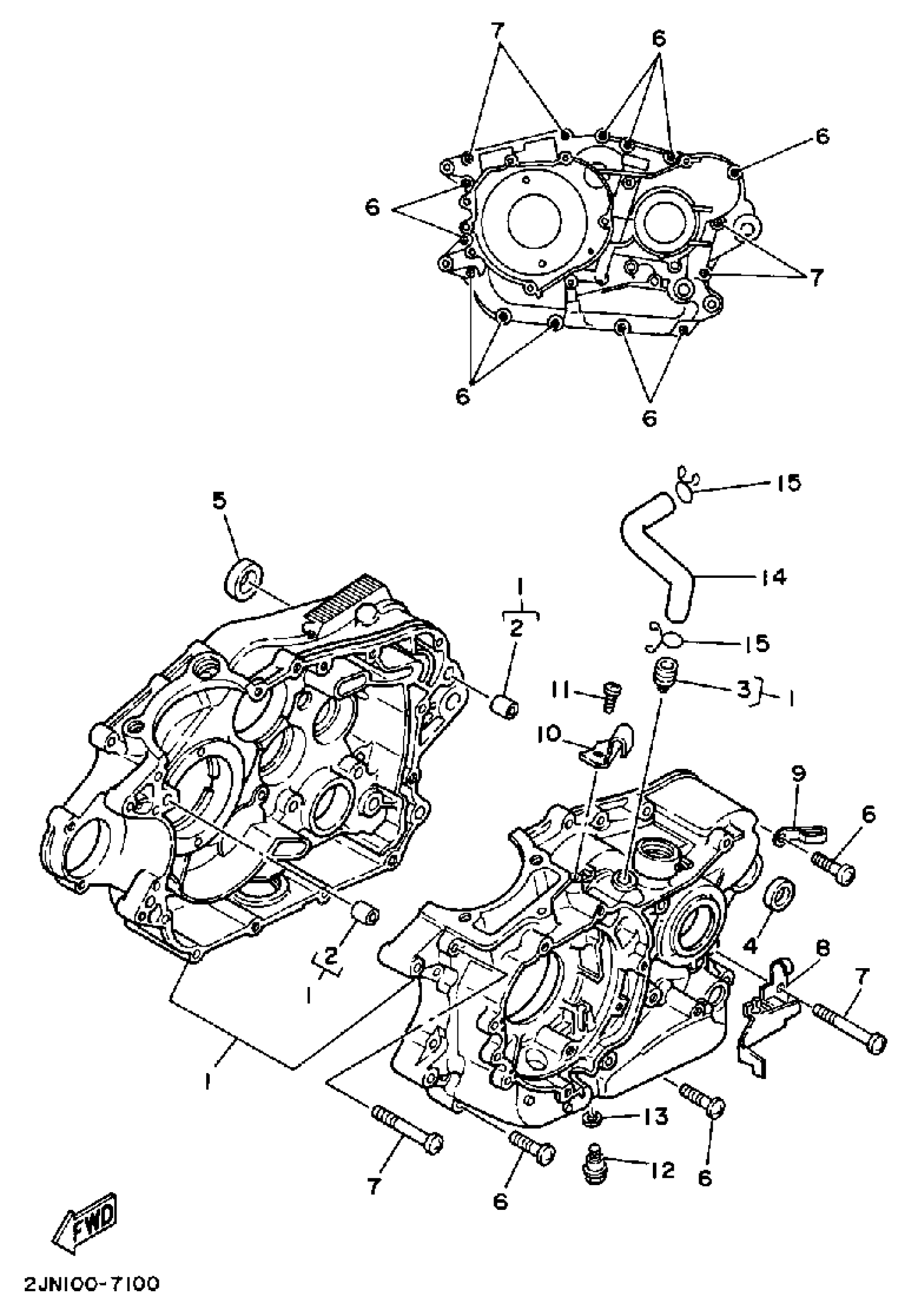

Yamaha BW350T (BIG WHEEL) 1987 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSEMBLY

2JN-15100-00-00

Unavailable

2

PIN, DOWEL

99530-12016-00

$4.89

3

PIPE, BREATHER 2

371-11167-01-00

$13.49

4

COLLAR

90387-17009-00

$15.99

5

COLLAR (3Y1)

90387-16782-00

$4.99

6

SCREW, PAN

98517-06030-00

Unavailable

7

SCREW, PAN

98507-06060-00

$7.99

8

CLAMP

90465-08060-00

Unavailable

9

CLAMP(51Y)

90465-08277-00

Unavailable

10

HOLDER, CLCH CABLE

(2JN-15441-00-00)

Unavailable

11

SCREW, PAN

98507-06014-00

$8.49

12

BOLT

90109-102E8-00

Unavailable

13

WASHER, PLATE(481)

90201-10118-00

Unavailable

14

PIPE, BREATHER 1

5G2-11166-00-00

Unavailable

15

CLIP (371)

90467-14015-00

$8.49
