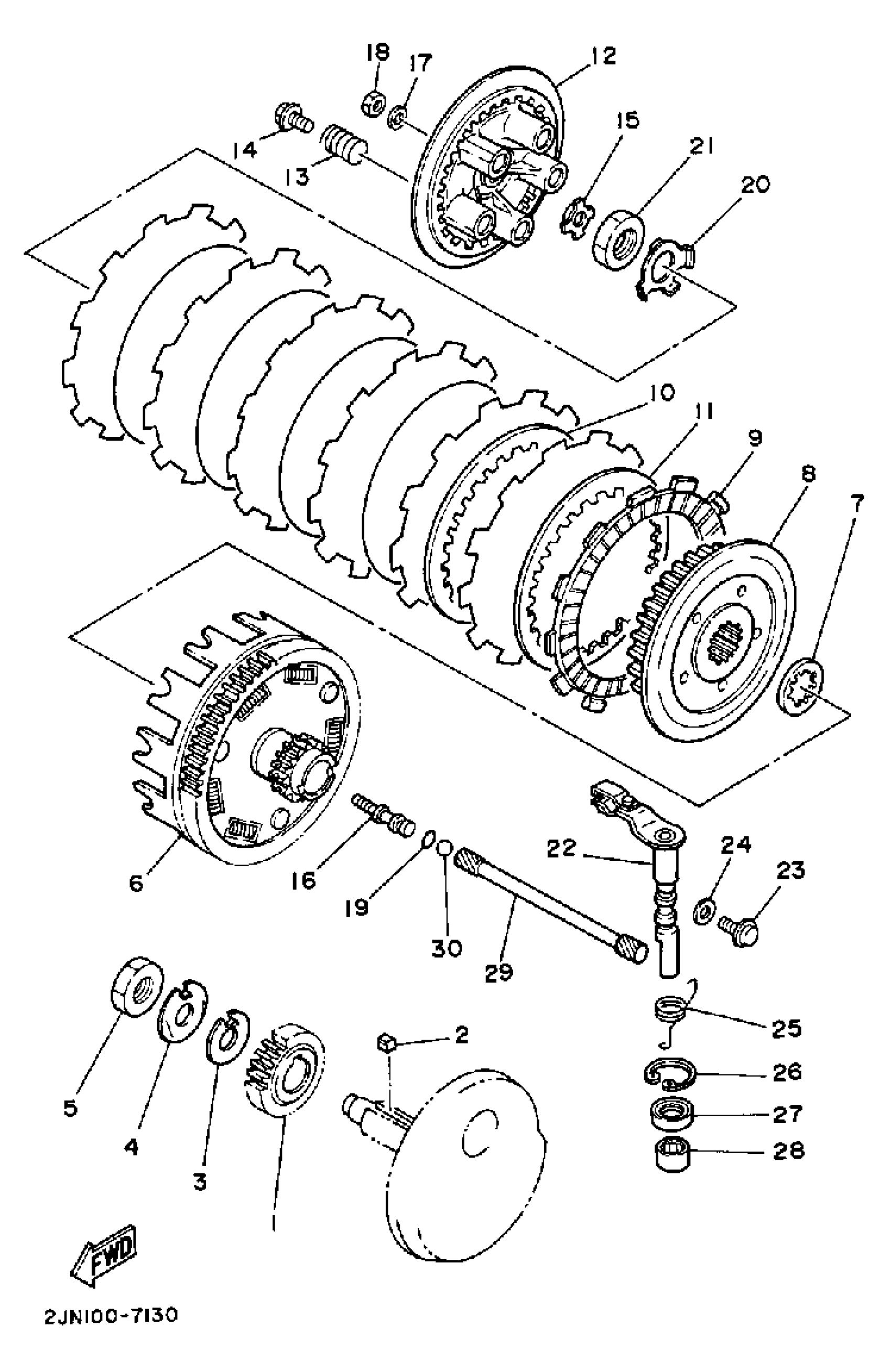

Yamaha BW350T (BIG WHEEL) 1987 CLUTCH Diagram

#

Description
Price

1

GEAR, PRI DRIVE

(2JN-16111-00-00)

Unavailable

2

KEY, STRAIGHT (3Y6)

90282-07041-00

Unavailable

3

WASHER, LOCK (3Y1)

90215-16156-00

$5.81

4

WASHER, LOCK (30X)

90215-16222-00

$7.68

5

NUT(24V)

90170-16343-00

$13.02

6

PRI DRVN GEAR

2JN-16150-00-00

Unavailable

7

PLATE, THRUST 1

2JN-16154-00-00

$17.28

8

BOSS, CLUTCH

2JN-16371-00-00

Unavailable

9

PLATE, FRICTION

5Y1-16331-01-00

$24.70

10

PLATE, CLUTCH 2

168-16325-10-00

$12.70

11

PLATE, CLUTCH 1

3J2-16324-10-00

$10.00

12

PLATE, PRESSURE 1

5Y1-16351-00-00

$49.42

13

SPRING, COMPRESSION (509)

90501-23346-00

$12.10

14

SCREW, WITH WASHER (1W4)

90159-06016-00

$2.67

15

PLATE, PUSH

1W1-16358-01-00

$19.11

16

ROD, PUSH 1

30X-16356-00-00

Unavailable

17

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

18

NUT, HEXAGON

95380-06600-00

$4.01

19

O-RING (26H)

93210-06632-00

Unavailable

20

WASHER, LOCK (34L)

90215-20231-00

Unavailable

21

NUT (34L)

90170-20327-00

Unavailable

22

PUSH LEVER ASSEMBLY

(2JN-16380-00-00)

Unavailable

23

SCREW 425163430000

90149-08067-00

Unavailable

24

WASHER, PLATE 3411117500

90201-08087-00

Unavailable

25

SPRING, TORSION (3Y1)

90508-14433-00

Unavailable

26

CIRCLIP (3Y1)

93420-28055-00

Unavailable

27

OIL SEAL (3Y1)

93102-14209-00

Unavailable

28

BEARING, CYLINDRICAL (3Y1)

93315-31428-00

Unavailable

29

ROD, PUSH 2

30X-16357-00-00

Unavailable

30

BALL (498)

93511-32027-00

Unavailable
