1985 Yamaha BIG Wheel (BW200N) Tailight Diagram

← All diagrams

Find the part on the Tailight diagram for your 1985 Yamaha BIG Wheel (BW200N), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

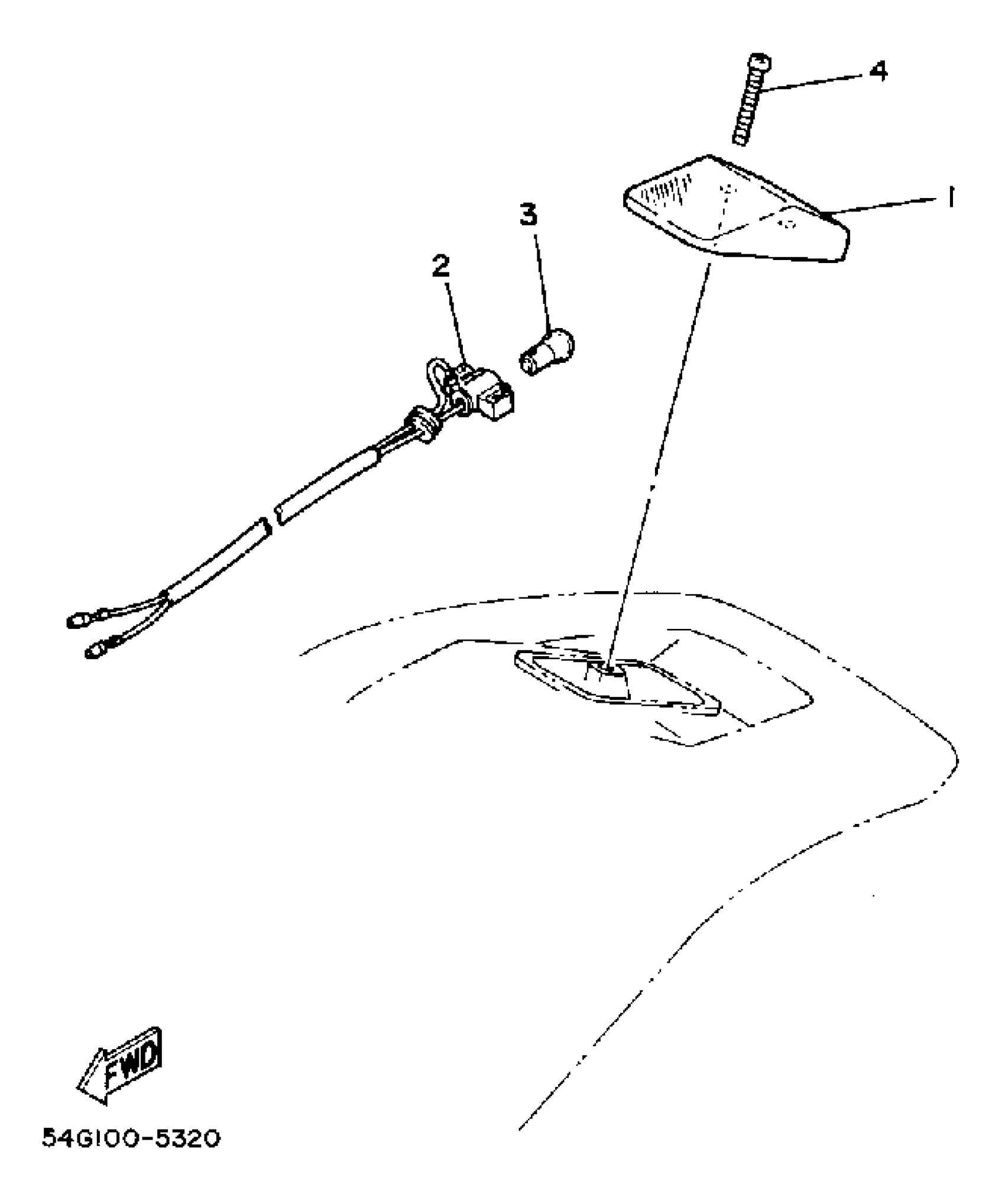

1985 Yamaha BIG Wheel (BW200N) Tailight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LENS, TAILLIGHT

4V5-84521-00-00

1
Out of stock

2

SOCKET ASSEMBLY

54G-84530-00-00

1
Out of stock

3

. BULB

809-84714-00-00

1
Out of stock

4

SCREW, PAN HEAD(MK5)

98507-04035-00

1

$6.69

In stock
