1985 Yamaha BIG Wheel (BW200N) Frame Diagram

← All diagrams

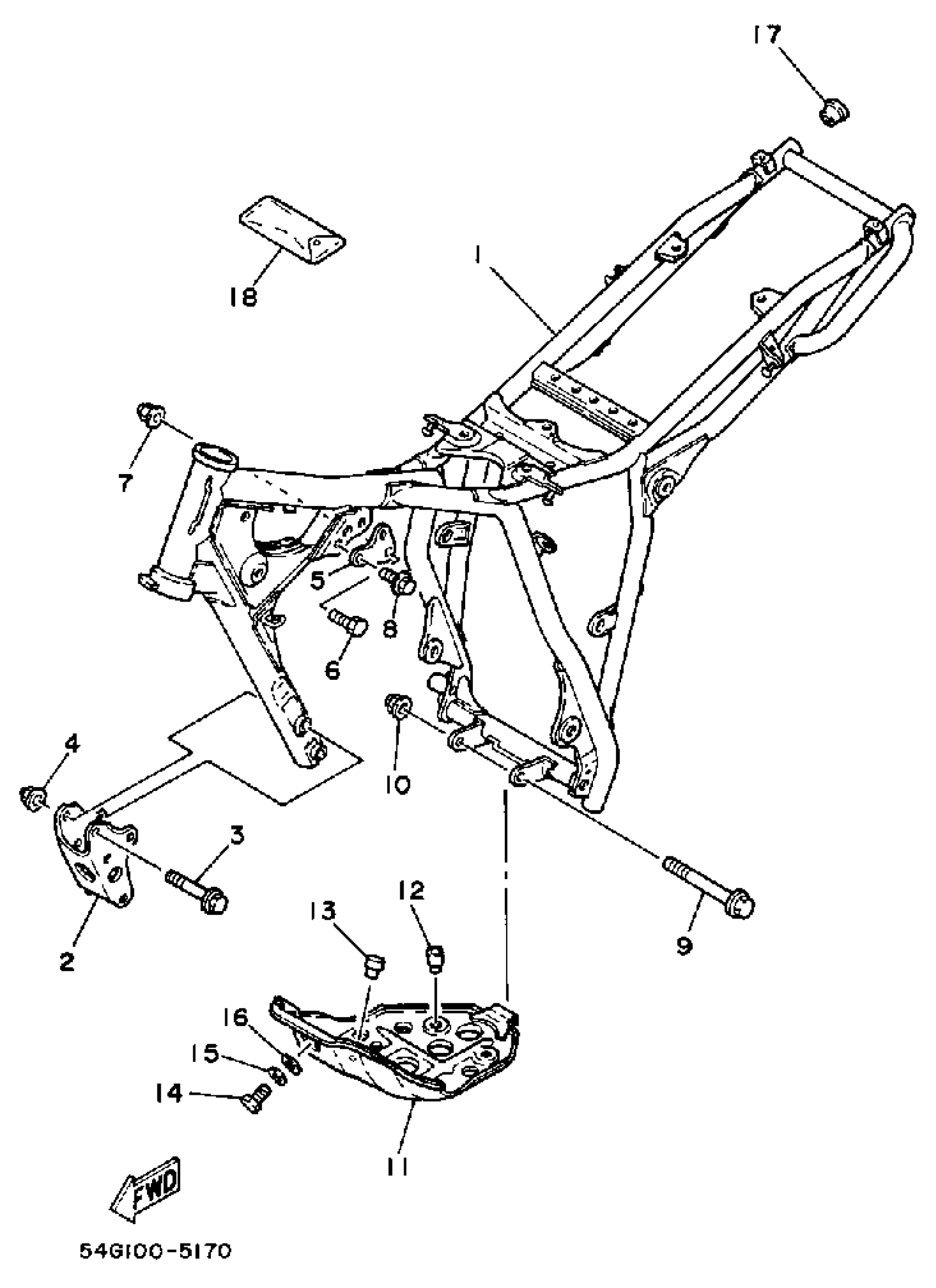

Find the part on the Frame diagram for your 1985 Yamaha BIG Wheel (BW200N), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1985 Yamaha BIG Wheel (BW200N) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(54G-21110-00-FH)

1
Out of stock

2

STAY, ENGINE 3

15A-21316-00-00

1
Out of stock

3

BOLT, FLANGE

95814-08065-00

1

$3.54

In stock

4

NUT, SELF-LOCKING

90185-08169-00

1

$7.09

In stock

5

STAY, ENGINE 2

36X-21315-00-00

—
Out of stock

6

BOLT, FLANGE

95817-08050-00

1

$3.15

In stock

7

NUT, SELF-LOCKING

90185-08169-00

1

$7.09

In stock

8

BOLT WASHER BASED (1J7)

90105-08066-00

—

$6.82

In stock

9

BOLT, FLANGE(4EM)

95817-08120-00

1

$3.83

In stock

10

NUT, SELF-LOCKING

90185-08169-00

1

$7.09

In stock

11

PROTECTOR, ENGINE

1RL-21471-00-35

—

$114.45

In stock

12

STOPPER, MAIN STAND

128-27114-00-00

1

$6.62

In stock

13

STOPPER

3Y1-24768-00-00

1
Out of stock

14

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

15

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

16

WASHER, PLATE (4H7)

90201-061A5-00

—

$5.86

In stock

17

PLUG (5R2)

90338-18122-00

—

$6.71

In stock

18

TOOL KIT

54G-28100-00-00

1
Out of stock
