1985 Yamaha BIG Wheel (BW200N) Crankcase Diagram

← All diagrams

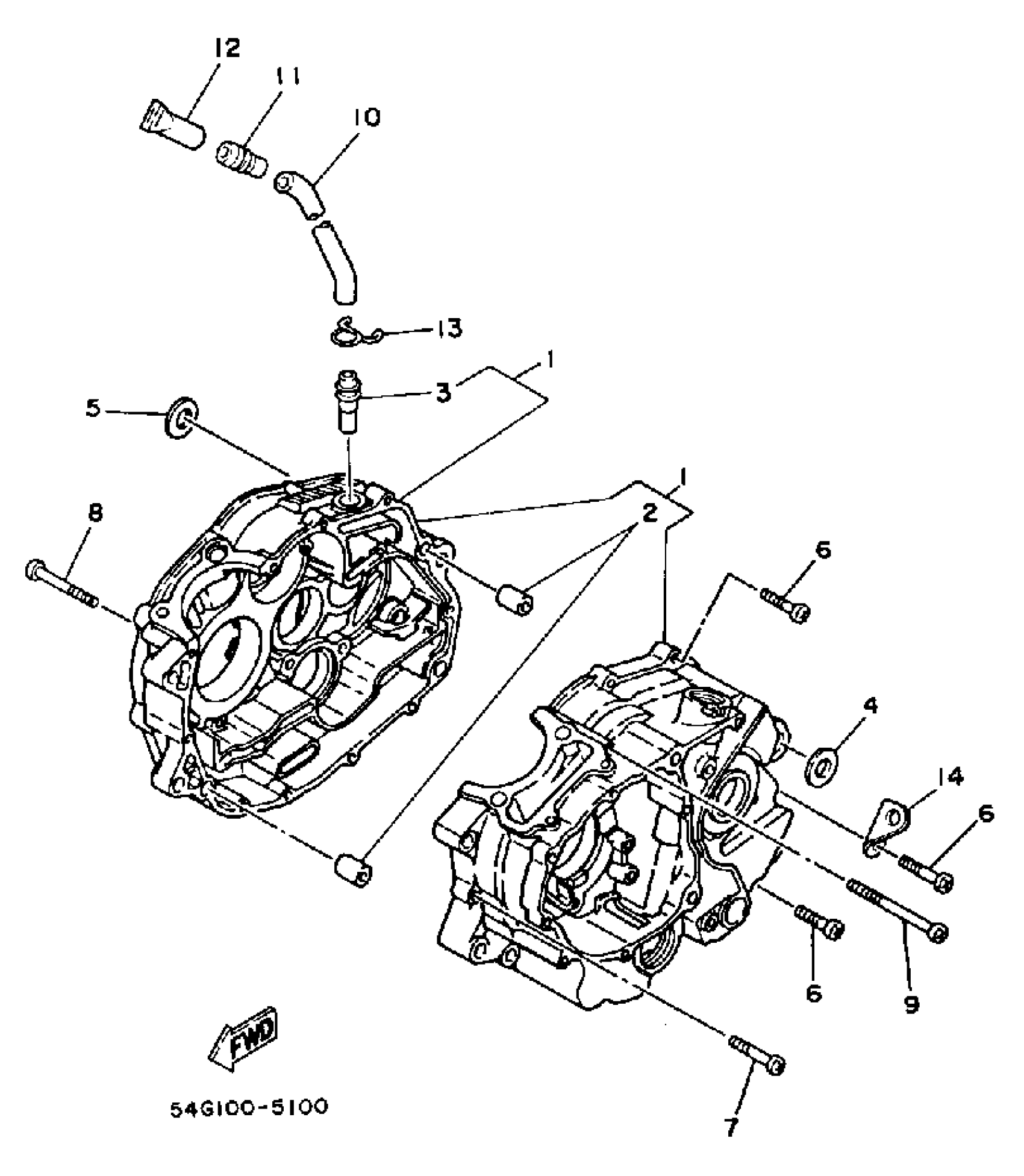

Find the part on the Crankcase diagram for your 1985 Yamaha BIG Wheel (BW200N), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1985 Yamaha BIG Wheel (BW200N) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSY

99999-03072-00

1
Out of stock

2

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

3

PIPE, BREATHER 2

371-11167-01-00

1

$10.35

In stock

4

COLLAR (15A)

90387-125F1-00

1

$3.91

In stock

5

COLLAR (15A)

90387-125F1-00

1

$3.91

In stock

6

SCREW, PAN

98517-06030-00

1
Out of stock

7

SCREW, PAN

98507-06040-00

1

$2.25

In stock

8

SCREW, PAN

98507-06060-00

1

$5.60

In stock

9

SCREW, PAN

98507-06085-00

1

$5.17

In stock

10

HOSE

90445-162A1-00

1
Out of stock

11

PIPE, BREATHER 2

371-11167-01-00

1

$10.35

In stock

12

SEAL

47J-14457-00-00

1
Out of stock

13

CLIP (371)

90467-14015-00

1

$7.51

In stock

14

CLAMP (15A)

90465-08200-00

1

$3.98

In stock
