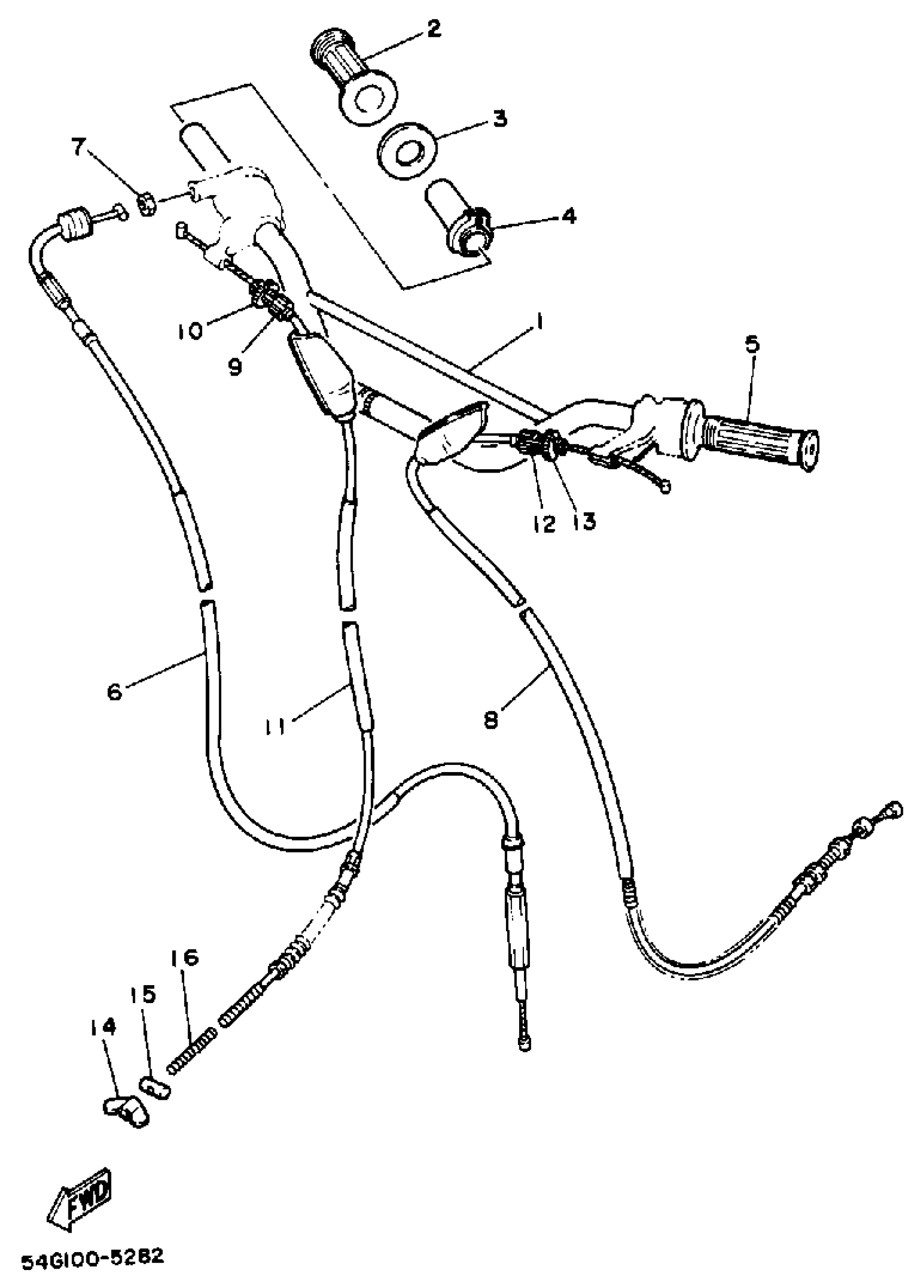

Yamaha BW200EU (BIG WHEEL ELEC START) 1988 HANDLEBAR CABLE Diagram

#

Description
Price

1

HANDLEBAR

1LN-26111-00-00

Unavailable

2

UNAVAILABLE IN PRICE BOOK

1A0-25242-01-00

Unavailable

3

RING, LEAF

1M1-26249-01-00

$5.99

4

TUBE, THRTL GUIDE

15E-26243-00-00

Unavailable

5

GRIP, HANDLE (L.H)

1E6-26241-00-00

$28.87

6

CABLE, THROTTLE 1

54G-26311-00-00

Unavailable

7

NUT, HEXAGON

90170-10038-00

$3.15

8

CABLE, CLUTCH

1RL-26335-00-00

Unavailable

9

BOLT

90123-08002-00

$8.57

10

NUT

90179-08030-00

$3.63

11

CABLE, BRAKE

54G-26341-00-00

Unavailable

12

BOLT

90123-08002-00

$8.57

13

NUT

90179-08030-00

$3.63

14

NUT (25K)

90179-06411-00

$4.89

15

PIN 1562723700

90249-12008-00

$5.75

16

SPRING, COMPRESSION (29U)

90501-10782-00

Unavailable
