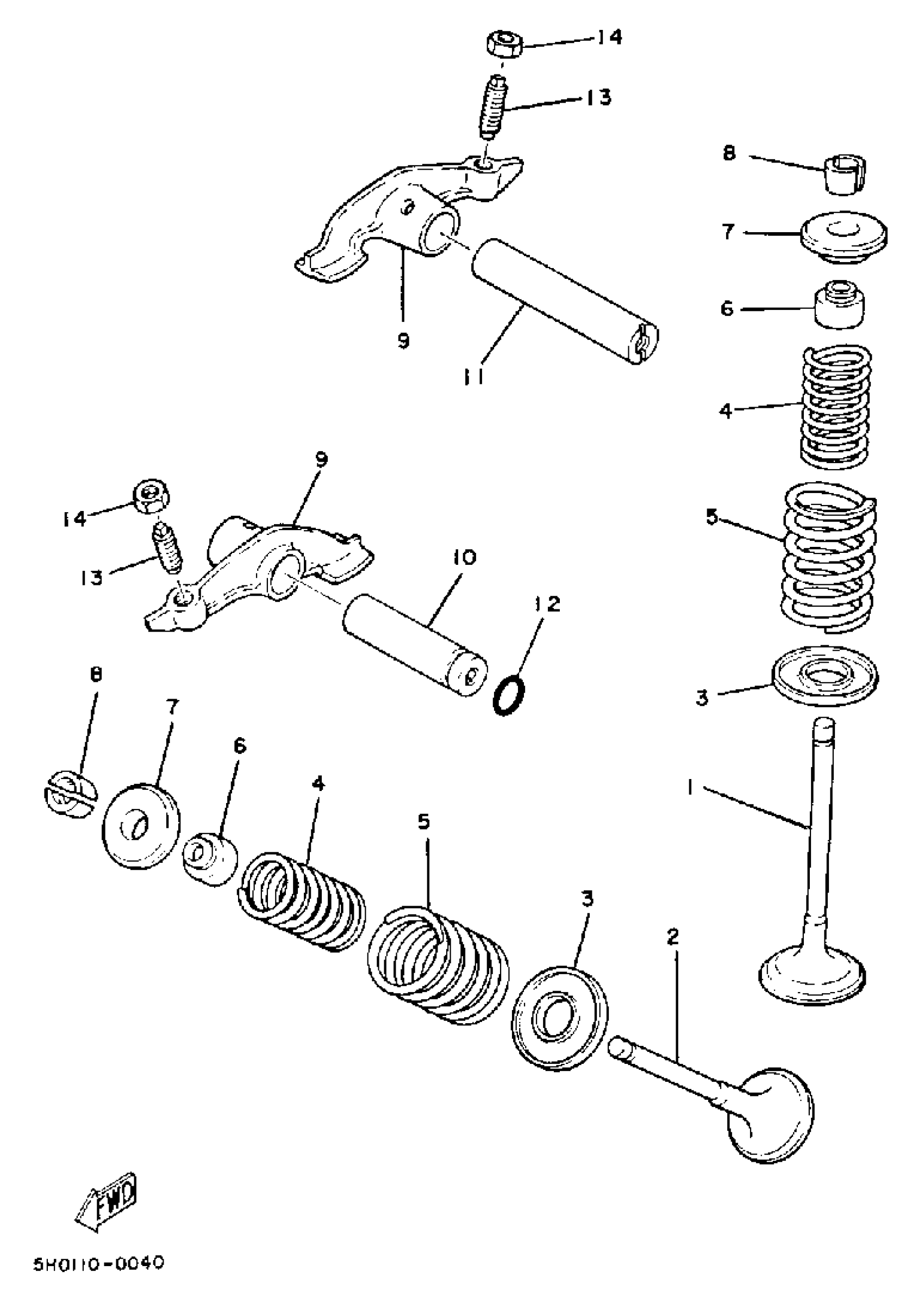

Yamaha BW200ET (BIG WHEEL ELEC START) 1987 VALVE Diagram

VALVE, INTAKE

5H0-12111-02-00

$33.57

VALVE, EXHAUST

5H0-12121-01-00

$51.61

SEAT, VALVE SPRING

4G0-12116-01-00

$12.53

SPRING, VALVE INNER

11H-12113-00-00

$19.75

SPRING, VALVE OUTER

11H-12114-00-00

$21.27

SEAL, VALVE STEM

5H0-12119-00-00

$14.29

RETAINER, VALVE SPRING

4G0-12117-00-00

$19.75

COTTER, VALVE

4G0-12118-00-00

$6.45

ARM, VALVE ROCKER

36X-12151-00-00

$38.39

SHAFT, ROCKER

5H0-12156-00-00

$33.23

SHAFT, ROCKER

5H0-12146-00-00

$24.47

O-RING (1J7)

93210-09350-00

$5.82

SCREW, VALVE ADJUSTING

2NX-12159-00-00

$10.23

NUT HEXAGON 371121580000

90170-06128-00

$6.17
