1986 Yamaha Big Wheel Elec Start (BW200ES) Frame Diagram

← All diagrams

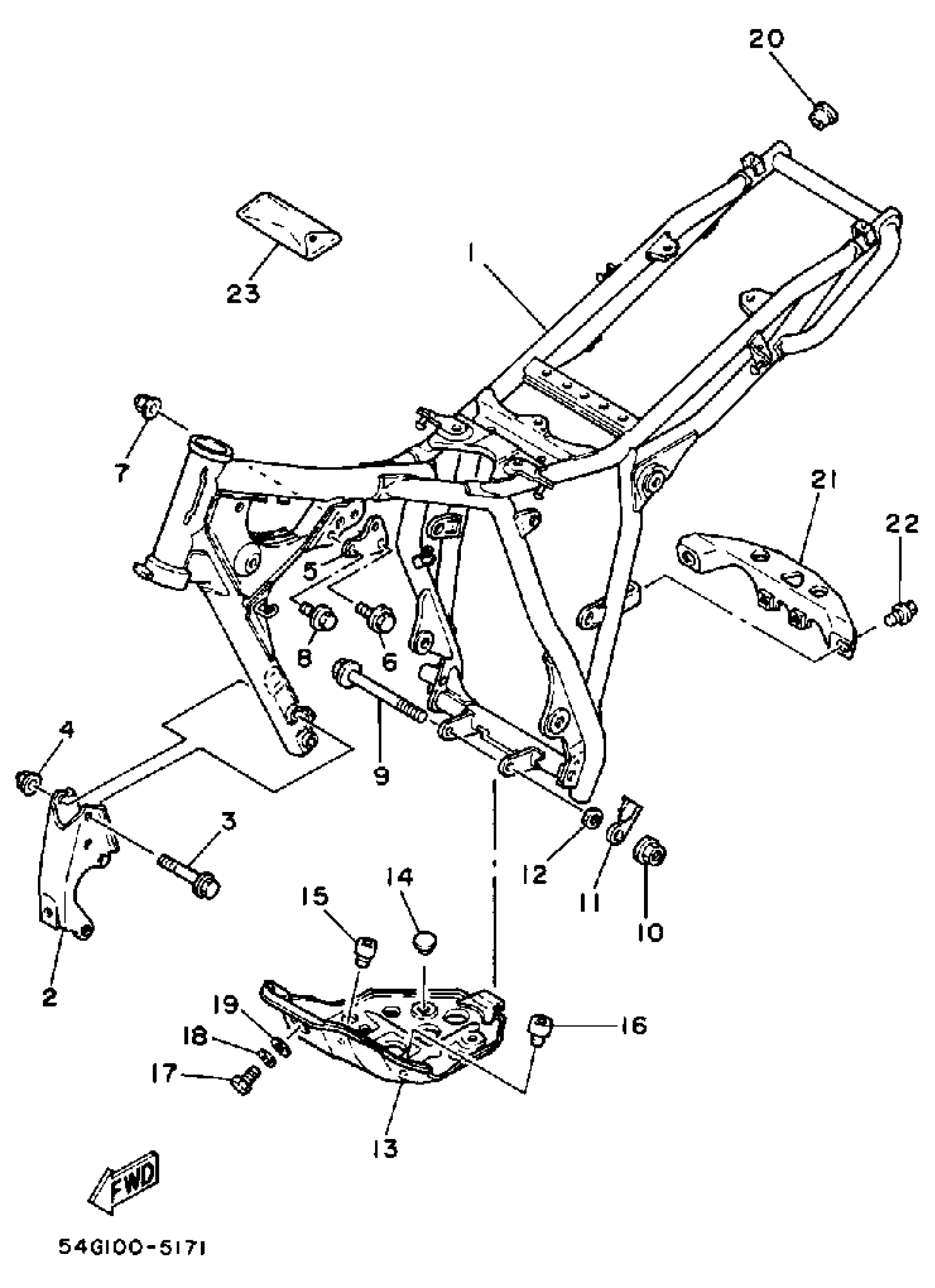

Find the part on the Frame diagram for your 1986 Yamaha Big Wheel Elec Start (BW200ES), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Yamaha Big Wheel Elec Start (BW200ES) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(1RL-21110-00-FH)

1
Out of stock

2

STAY, ENGINE 3

(1RL-21316-00-FH)

1
Out of stock

3

BOLT, FLANGE

95814-08065-00

1
Out of stock

4

NUT, SELF-LOCKING

90185-08169-00

1
Out of stock

5

STAY, ENGINE 2

36X-21315-00-00

—
Out of stock

6

BOLT, FLANGE

95817-08050-00

1
Out of stock

7

NUT, SELF-LOCKING

90185-08169-00

1
Out of stock

8

BOLT WASHER BASED (1J7)

90105-08066-00

—
Out of stock

9

BOLT, FLANGE(4EM)

95817-08120-00

1
Out of stock

10

NUT, FLANGE

95704-08500-00

1
Out of stock

11

CLAMP, CABLE

1RL-21337-00-00

1
Out of stock

12

NUT

90185-08055-00

1
Out of stock

13

PROTECTOR, ENGINE

1RL-21471-00-98

1
Out of stock

14

STOPPER, MAIN STAND

128-27114-00-00

1
Out of stock

15

STOPPER, MAIN STAND

1A0-27114-00-00

1
Out of stock

16

STOPPER, MAIN STAND

4N0-27114-00-00

—
Out of stock

17

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—
Out of stock

18

WASHER, SPRING

92995-06100-00

1
Out of stock

19

WASHER, PLAIN (646)

92990-06600-00

—
Out of stock

20

PLUG (5R2)

90338-18122-00

—
Out of stock

21

COVER 1

(1RL-2116A-00-00)

1
Out of stock

22

BOLT, FLANGE

95817-08012-00

—
Out of stock

23

TOOL KIT

54G-28100-00-00

1
Out of stock
