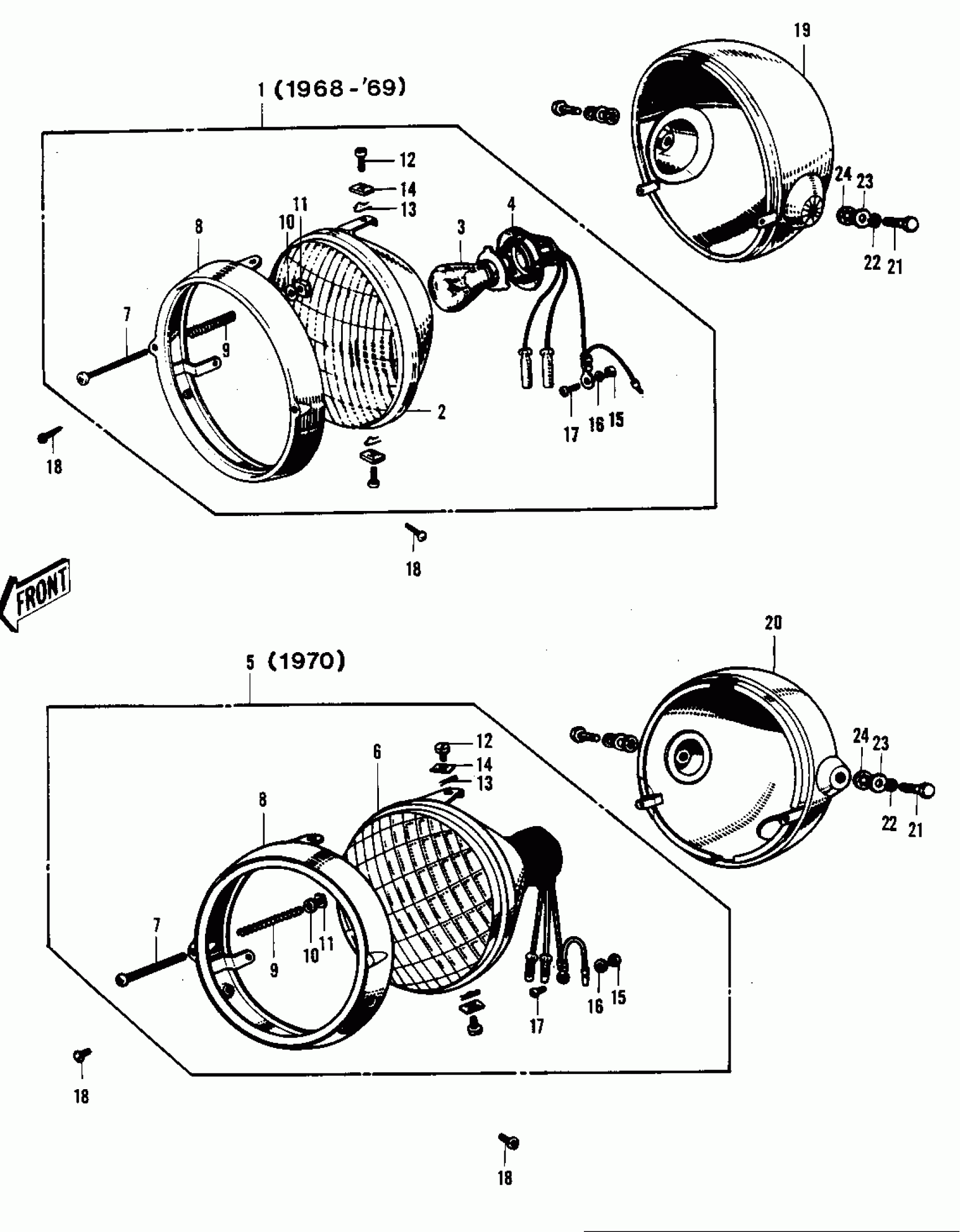

Kawasaki Bushwhacker HEADLIGHT Diagram

#

Description
Price

1

LAMP UNIT HEAD

23004-021

Unavailable

2

LENS UNIT HEAD LAMP

23007-011

$23.07

3

BULB 12V 35/25W

92069-037

$14.25

4

SOCKET HEAD LAMP

23008-011

Unavailable

5

LAMP UNIT HEAD

23003-010

Unavailable

6

SEALED BEAM UNIT

23007-026

$60.76

7

SCREW FOCUS ADJUST

23019-017

$1.34

7

SCREW,FOCUS ADJUSTING

23019-021

$4.17

8

RIM HEAD LAMP

23006-014

$22.47

9

SPRING,FOCUS ADJUSTING

23014-005

$3.19

10

WASHER,4.1X8X0.8

23021-004

Unavailable

11

NUT

23020-010

$0.29

11

NUT

23020-016

Unavailable

12

SCREW LENS UNIT FITT

23019-018

Unavailable

13

PIN LENS UNIT FITTING

23022-001

Unavailable

14

NUT LENS UNIT FITTING

23020-009

Unavailable

15

NUT-HEX

311B0300

$0.46

16

WASHER SPRING 3MM

461F0300

Unavailable

17

SCREW-PAN-CROS,3X6

220B0306

Unavailable

18

SCREW OVL CNTSNK 5X8

222E0508A

Unavailable

18

SCREW-CSK-RD-CROS

222E0510

Unavailable

19

BODY-HEAD LAMP,BLACK

23005-022-21

$94.10

20

UNAVAILABLE IN PRICE BOOK

23005-022-15

Unavailable

21

BOLT,HEX HEAD,10X25

92007-045

Unavailable

22

WASHER SPRING 10MM

461F1000

Unavailable

23

WASHER-PLAIN,10MM

411B1000

Unavailable

24

WASHER LOCK 10MM

463H1000

$0.69
