1970 Kawasaki Bushwhacker Gear Change Mechanism Diagram

← All diagrams

Find the part on the Gear Change Mechanism diagram for your 1970 Kawasaki Bushwhacker, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

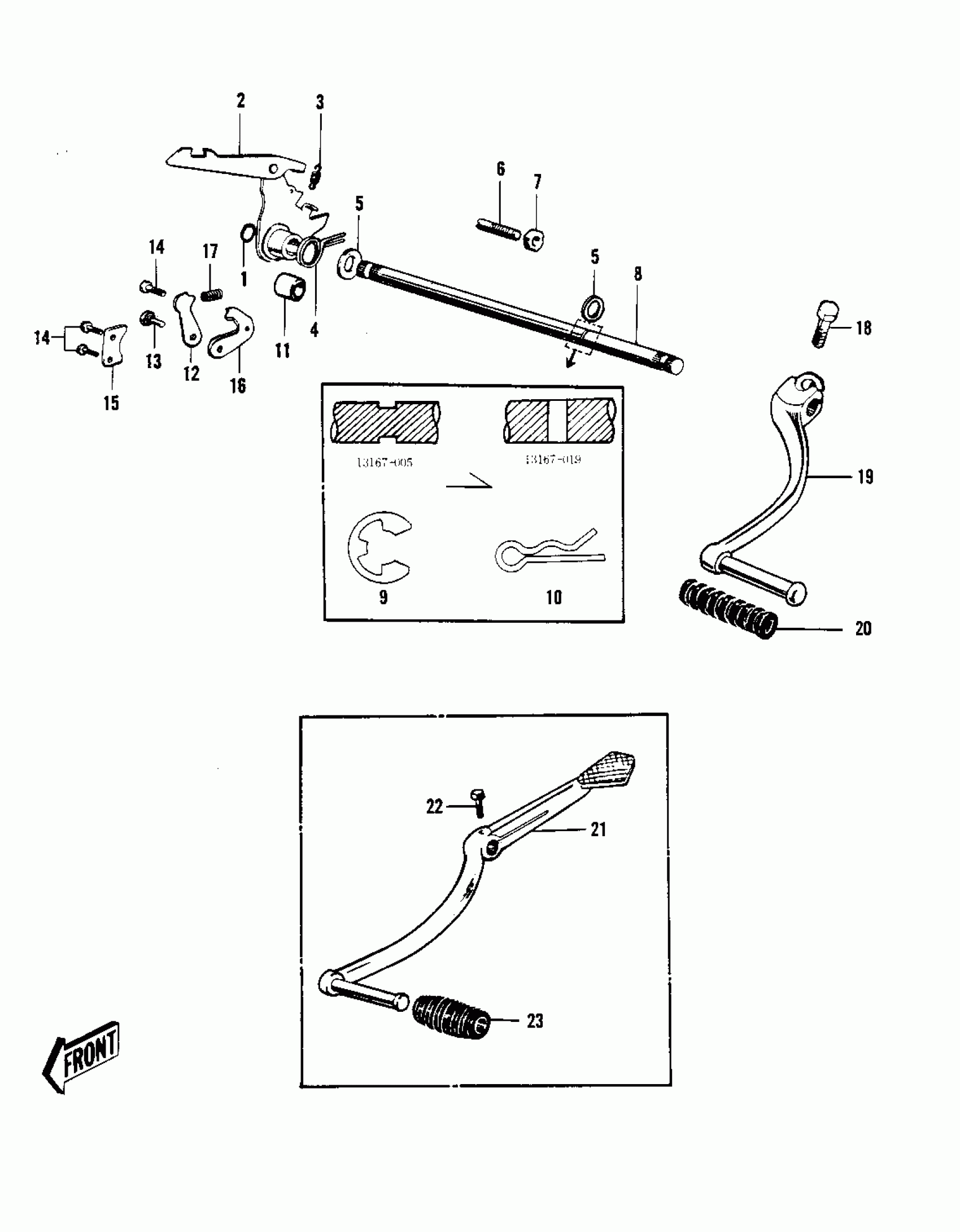

1970 Kawasaki Bushwhacker Gear Change Mechanism Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CIRCLIP 10MM

92033-002

1
Out of stock

2

LEVER-COMP-CHANGE

13161-5002

1
Out of stock

2

LEVER ASSY,GEAR CHANG

13161-037

1
Out of stock

3

SPRING GEAR CHNG LEV

92083-011

1
Out of stock

4

SPRING,TENSION

92081-1129

1
Out of stock

4

UNAVAILABLE IN PRICE BOOK

92083-1129

—
Out of stock

5

WASER 12MM

92022-003

1
Out of stock

6

BOLT,RETURN SPRING

92001-1401

1
Out of stock

6

BOLT,RETURN SPRING

92001-1401

—
Out of stock

7

NUT 8MM

312B0800

1
Out of stock

8

UNAVAILABLE IN PRICE BOOK

13167-005

—
Out of stock

8

LEVER-COMP-CHANGE

13161-5002

1
Out of stock

8

LEVER ASSY,GEAR CHANG

13161-037

1
Out of stock

9

CIRCLIP-TYPE-E,10MM

482J0100

1
Out of stock

10

COTTER PIN

92041-004

1
Out of stock

11

COLLAR,12X18X11.5

92027-121

1
Out of stock

12

LEVER GEAR CHNG DRUM

13168-003

1
Out of stock

13

SCREW CHANGE DRUM LEV

92011-001

1
Out of stock

14

SCREW-PAN-CROS,6X14

220B0614

1
Out of stock

15

PLATE DRUM LEV POSTON

13169-001

1
Out of stock

16

PLATE CHANGE DRUM LEV

13170-003

1
Out of stock

17

SPRING,CHNG DRUM LEVR

92081-004

1
Out of stock

18

BOLT-UPSET,6X20

112G0620

1
Out of stock

19

PEDAL GEAR CHANGE

13156-019

1
Out of stock

20

DAMPER,CHANGE PEDAL

13157-004

1
Out of stock

21

PEDAL GEAR CHANGE

13156-012

1
Out of stock

22

BOLT-UPSET

112G0625

1
Out of stock

23

RUBBER CHANGE PEDAL A

13157-002

1
Out of stock
