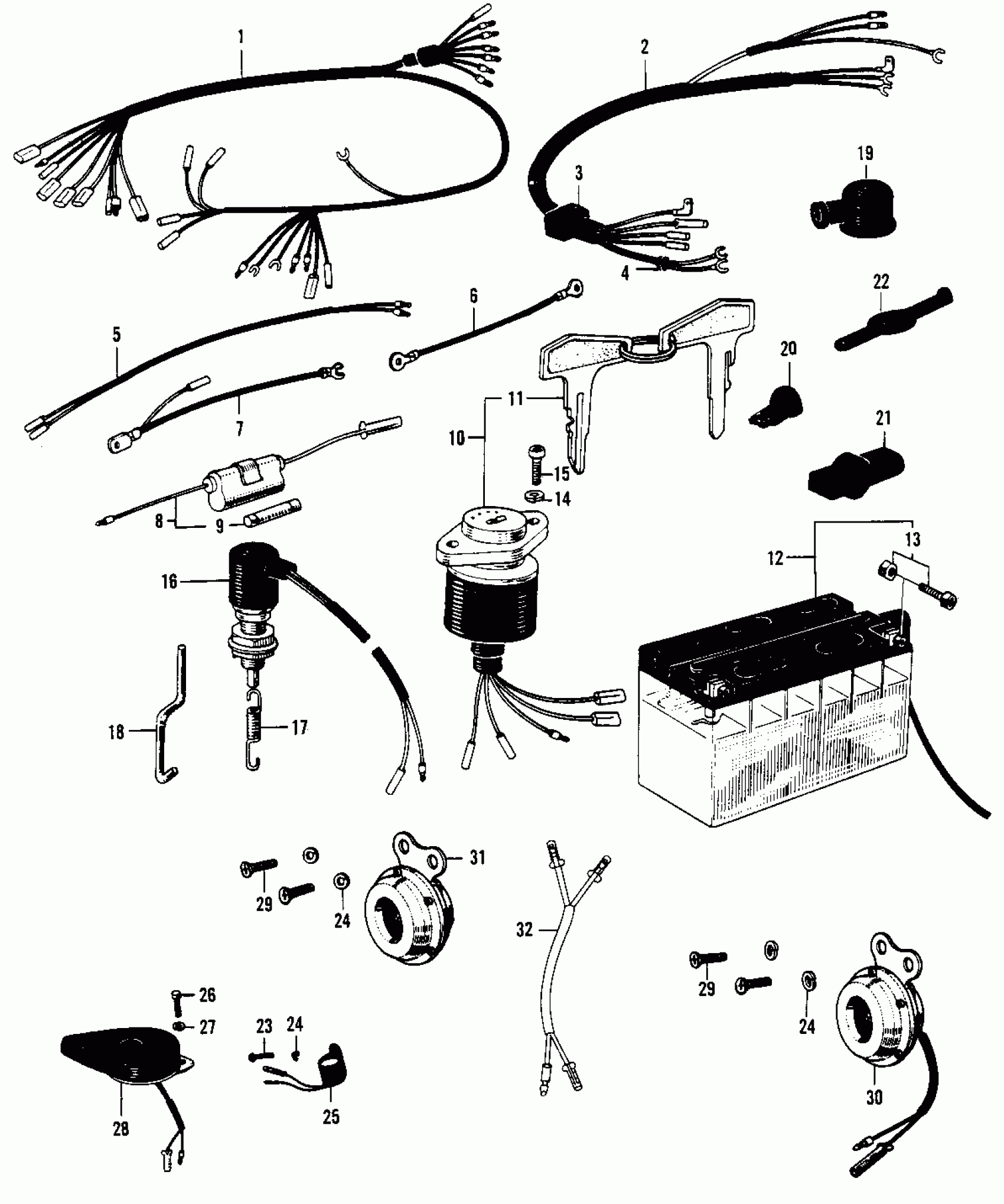

Kawasaki Bushwhacker CHASSIS ELECTRICAL EQUIPMENT Diagram

#

Description
Price

1

WIRING HARNESS MAIN

26001-023

Unavailable

1

WIRING HARNESS MAIN

26001-023

Unavailable

2

WIRING HARNESS ENGINE

26003-007

Unavailable

3

.GROMMET ENG RUBBER A

92071-014

Unavailable

4

GROMMET ENG RUBBER B

92071-013

Unavailable

5

WIRING HARNESS REAR

26002-007

$4.97

6

UNAVAILABLE IN PRICE BOOK

26010-006

Unavailable

6

WIRE BATTERY GROUND

26010-022

$8.76

7

WIRE BATTERY LEAD

26010-004

$8.37

8

FUSE ASSY

26004-026

Unavailable

9

FUSE 10A

26006-001

Unavailable

10

SWITCH ASSY IGNITION

27005-031

Unavailable

11

UNAVAILABLE IN PRICE BOOK

27008-028-11

Unavailable

11

UNAVAILABLE IN PRICE BOOK

27008-028-12

Unavailable

11

UNAVAILABLE IN PRICE BOOK

27008-028-23

Unavailable

11

UNAVAILABLE IN PRICE BOOK

27008-028-14

Unavailable

11

KEY SET NO.134

27008-022-34

$5.25

11

KEYSET NO.135

27008-022-35

$6.80

11

KEY SET NO.136

27008-022-36

Unavailable

12

YUA BAT 12N12-3B

26012-008

Unavailable

13

SCREW BATTERY TERMNAL

26013-002

Unavailable

14

WASHER SPRING 5MM

461F0500

Unavailable

15

SCREW PAN HEAD 5X8

220B0508

Unavailable

16

SWITCH-BRAKE LAMP

27010-018

Unavailable

16

SWITCH-BRAKE LAMP

27010-018

Unavailable

17

SPRING,BRAKE LAMP SWITCH

27011-004

$2.79

18

HOOK BRK LAMP SW SPRG

27012-008

$1.46

19

CAP BAT TERMINAL RUBB

92073-001

$12.80

20

CAP IGNITION COIL

92073-003

$3.15

21

CAP REGULATOR TERMINL

92073-002

$0.71

22

BAND RUBBER

92072-013

$3.12

23

SCREW PAN HEAD 6X12

220B0612

Unavailable

24

WASHER SPRING 6MM

461F0600

Unavailable

25

RELAY TURN SIGNAL

27002-008

Unavailable

26

BOLT-SMALL-UPSET,8X16

115G0816

Unavailable

27

WASHER SPRING 8MM

461F0800

Unavailable

28

HORN

27003-012

Unavailable

29

SCREW-PAN-CROS,6X14

220B0614

$1.14

30

HORN

27003-016

$26.98

31

HORN

27003-022

$21.98

32

LEAD WIRE-HORN

26002-022

$2.71
