2026 Kawasaki Brute Force® 750 Rear Suspension Diagram

← All diagrams

Find the part on the Rear Suspension diagram for your 2026 Kawasaki Brute Force® 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

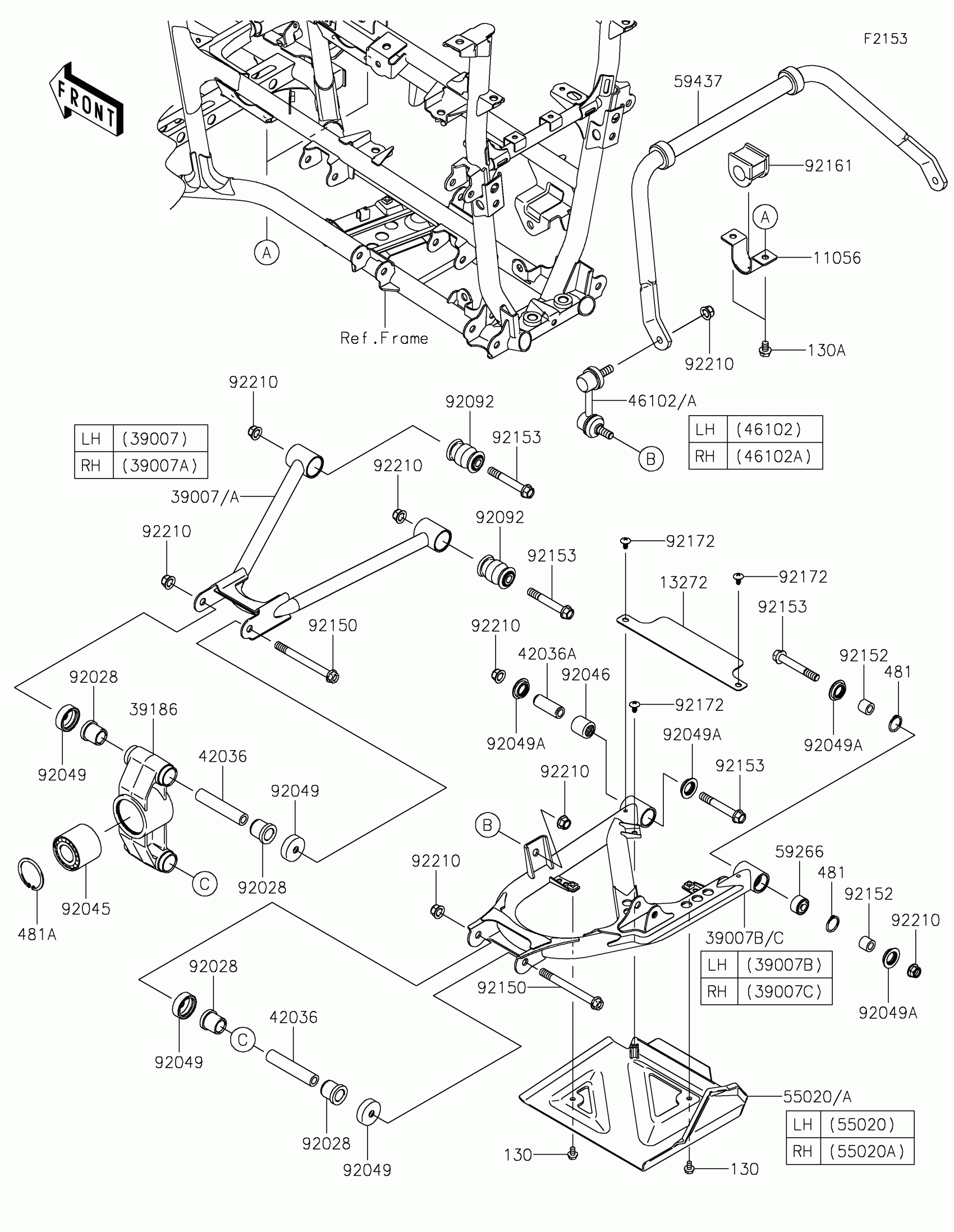

2026 Kawasaki Brute Force® 750 Rear Suspension Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET,STABILIZER

11056-1062

1
Out of stock

13272

PLATE,RR ARM

13272-0919

1

$2.03

In stock

39007

ARM-SUSP,RR,UPP,LH,BLACK

39007-0170-10

1

$85.04

In stock

39007A

ARM-SUSP,RR,UPP,RH,BLACK

39007-0171-10

1

$85.04

In stock

39007B

ARM-SUSP,RR,LWR,LH,BLACK

39007-0172-10

1

$113.55

In stock

39007C

ARM-SUSP,RR,LWR,RH,BLACK

39007-0173-10

1

$113.55

In stock

39186

KNUCKLE,RR

39186-0099

1

$202.97

In stock

42036

SLEEVE,10X17X85.6

42036-1190

1
Out of stock

42036A

SLEEVE

42036-1376

1
Out of stock

46102

ROD,STABILIZER,LH

46102-0100

1
Out of stock

46102A

ROD,STABILIZER,RH

46102-0101

1
Out of stock

55020

1

$34.38

In stock

55020A

1

$34.38

In stock

59266

JOINT-BALL

59266-0013

1
Out of stock

59437

STABILIZER,RR

59437-0307

1
Out of stock

92028

BUSHING

92028-1466

1
Out of stock

92045

BEARING-BALL,25BWD02ACA68

92045-0094

1
Out of stock

92046

BEARING-NEEDLE

92046-1046

1
Out of stock

92049

SEAL-OIL,KNUCKLE

92049-1198

1
Out of stock

92049A

SEAL-OIL,MHA17245.7F

92049-1223

1
Out of stock

92092

BUSHING-RUBBER

92092-0004

1
Out of stock

92150

BOLT,FLANGED,10X105

92150-1624

1
Out of stock

92152

COLLAR,10X17X14.5

92152-1455

1
Out of stock

92153

BOLT,FLANGED,10X70

92153-1606

1
Out of stock

92161

DAMPER

92161-0265

1
Out of stock

92172

SCREW,6X12

92172-0884

1
Out of stock

92210

NUT,LOCK,FLANGED,10MM

92210-0276

1
Out of stock

130

BOLT-FLANGED,6X10

130BA0610

1

$1.12

In stock

130A

BOLT-FLANGED,8X12

130BA0812

1

$0.92

In stock

481

CIRCLIP-TYPE-C,24MM

481J2400

1
Out of stock

481A

CIRCLIP-TYPE-C,52MM

481J5200

1
Out of stock
