2025 Kawasaki Brute Force® 750 LE EPS Valve Diagram

← All diagrams

Find the part on the Valve diagram for your 2025 Kawasaki Brute Force® 750 LE EPS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

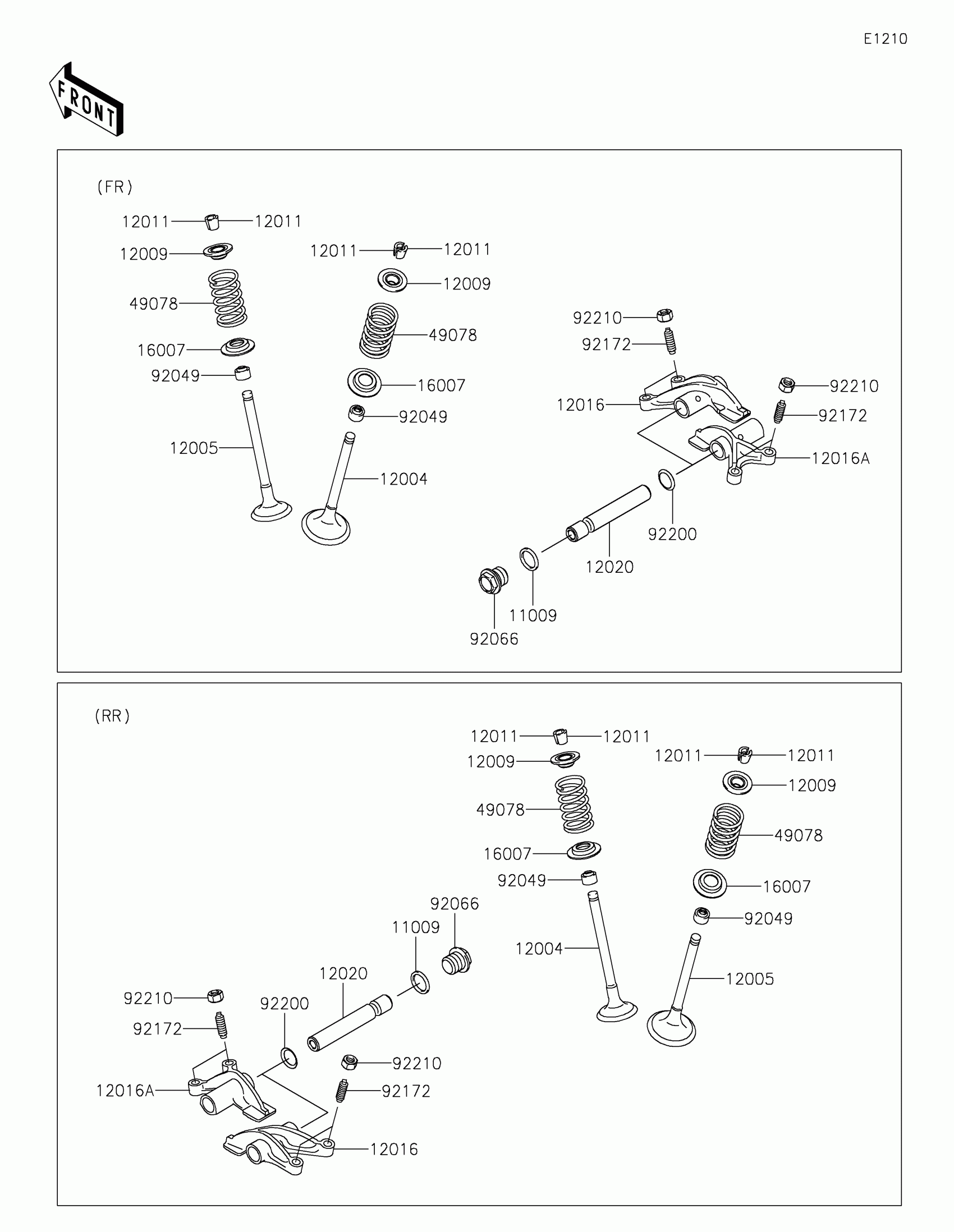

2025 Kawasaki Brute Force® 750 LE EPS Valve Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,14X18X1.5

11009-1430

1
Out of stock

12004

VALVE-INTAKE

12004-0717

1
Out of stock

12005

VALVE-EXHAUST

12005-0047

1
Out of stock

12009

RETAINER-VALVE SPRING

12009-1056

1
Out of stock

12011

COLLET

12011-1051

1
Out of stock

12016

ARM-ROCKER,EXHAUST

12016-1128

1
Out of stock

12016A

ARM-ROCKER,INTAKE

12016-1129

1
Out of stock

12020

SHAFT-ROCKER

12020-0004

1
Out of stock

16007

SEAT-SPRING

16007-0703

1
Out of stock

49078

SPRING-ENGINE VALVE

49078-0014

1
Out of stock

92049

SEAL-OIL,VSB58.558

92049-1218

1
Out of stock

92066

PLUG,DRAIN

92066-2196

1
Out of stock

92172

SCREW,6MM

92172-0737

1
Out of stock

92200

WASHER,13X17X0.3

92200-0808

1
Out of stock

92210

NUT,6MM

92210-1490

1
Out of stock
