2025 Kawasaki Brute Force® 750 LE EPS Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 2025 Kawasaki Brute Force® 750 LE EPS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

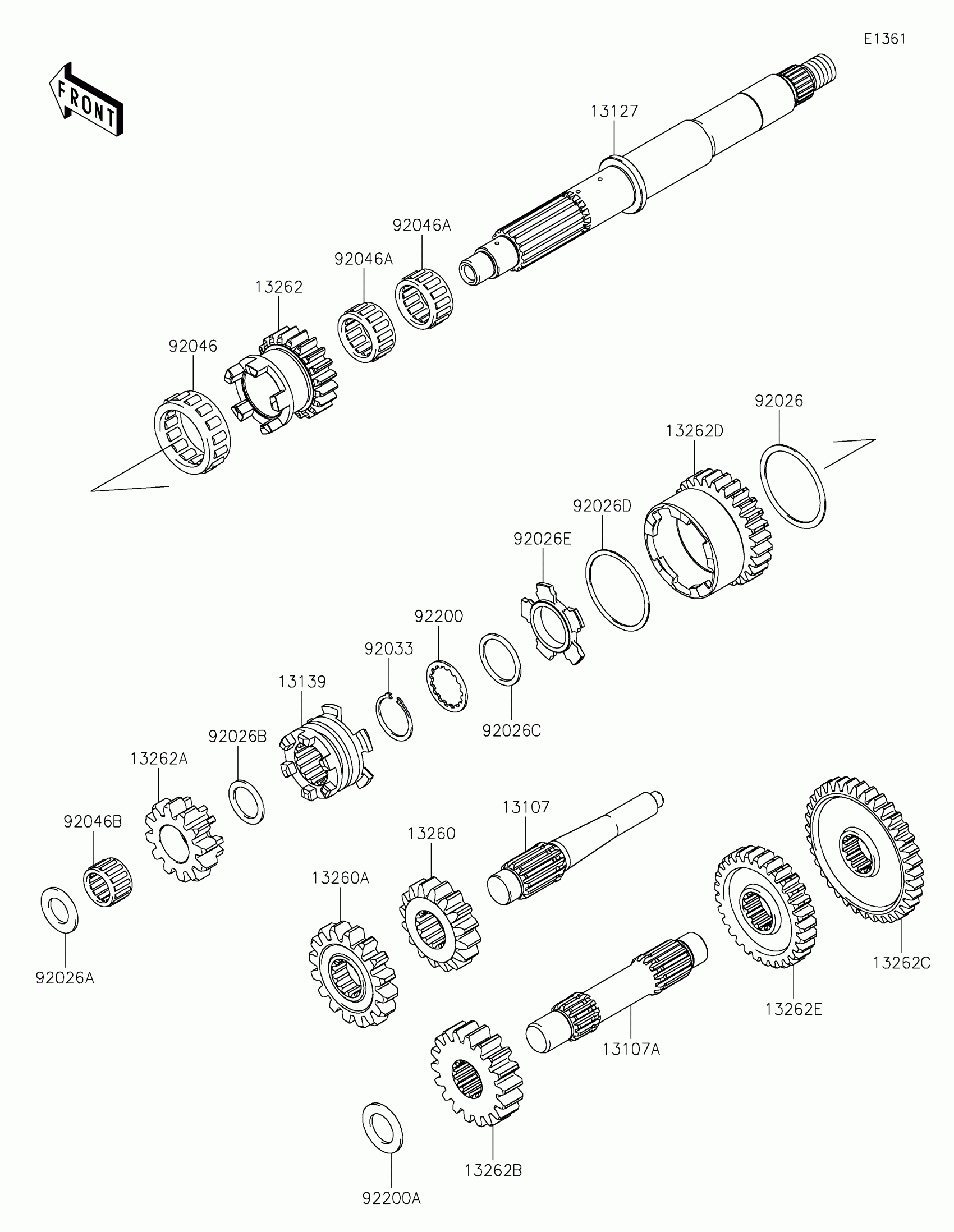

2025 Kawasaki Brute Force® 750 LE EPS Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13107

SHAFT,REVERSE,IDLE

13107-0754

1
Out of stock

13107A

SHAFT,COUNTER

13107-0755

1
Out of stock

13127

SHAFT-TRANSMISSION INPUT

13127-0053

1
Out of stock

13139

SHIFTER

13139-0626

1
Out of stock

13260

1

$118.13

In stock

13260A

1

$118.13

In stock

13262

GEAR,INPUT LOW,20T

13262-0234

1

$136.85

In stock

13262A

1

$115.65

In stock

13262B

GEAR,OUTPUT DRIVE,18T

13262-0432

1
Out of stock

13262C

GEAR,DRIVEN LOW,36T

13262-0794

1

$118.99

In stock

13262D

GEAR,INPUT HI,27T

13262-0837

1

$137.01

In stock

13262E

GEAR,DRIVEN HI,29T

13262-0838

1

$118.99

In stock

92026

SPACER,48.2X56X1.0

92026-0163

1
Out of stock

92026A

SPACER,17.3X30X2.0

92026-1415

1
Out of stock

92026B

SPACER,21.2X29X1.6

92026-1568

1
Out of stock

92026C

SPACER,28.2X34.5X1.6

92026-1587

1
Out of stock

92026D

SPACER,48.2X54.3X1.0

92026-1599

1
Out of stock

92026E

SPACER,HI&LOW

92026-1600

1
Out of stock

92033

RING-SNAP,25.9X30.6X1.2

92033-1037

1
Out of stock

92046

BEARING-NEEDLE,HIGH GEAR

92046-1276

1
Out of stock

92046A

BEARING-NEEDLE,FWF-283317

92046-1278

1
Out of stock

92046B

BEARING-NEEDLE,REVERSE GEAR

92046-1279

1
Out of stock

92200

WASHER,28.5X34.0X1.5

92200-1240

1
Out of stock

92200A

WASHER,20.3X33X2.0

92200-1351

1
Out of stock
