2025 Kawasaki Brute Force® 750 LE EPS Fuel Injection Diagram

← All diagrams

Find the part on the Fuel Injection diagram for your 2025 Kawasaki Brute Force® 750 LE EPS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

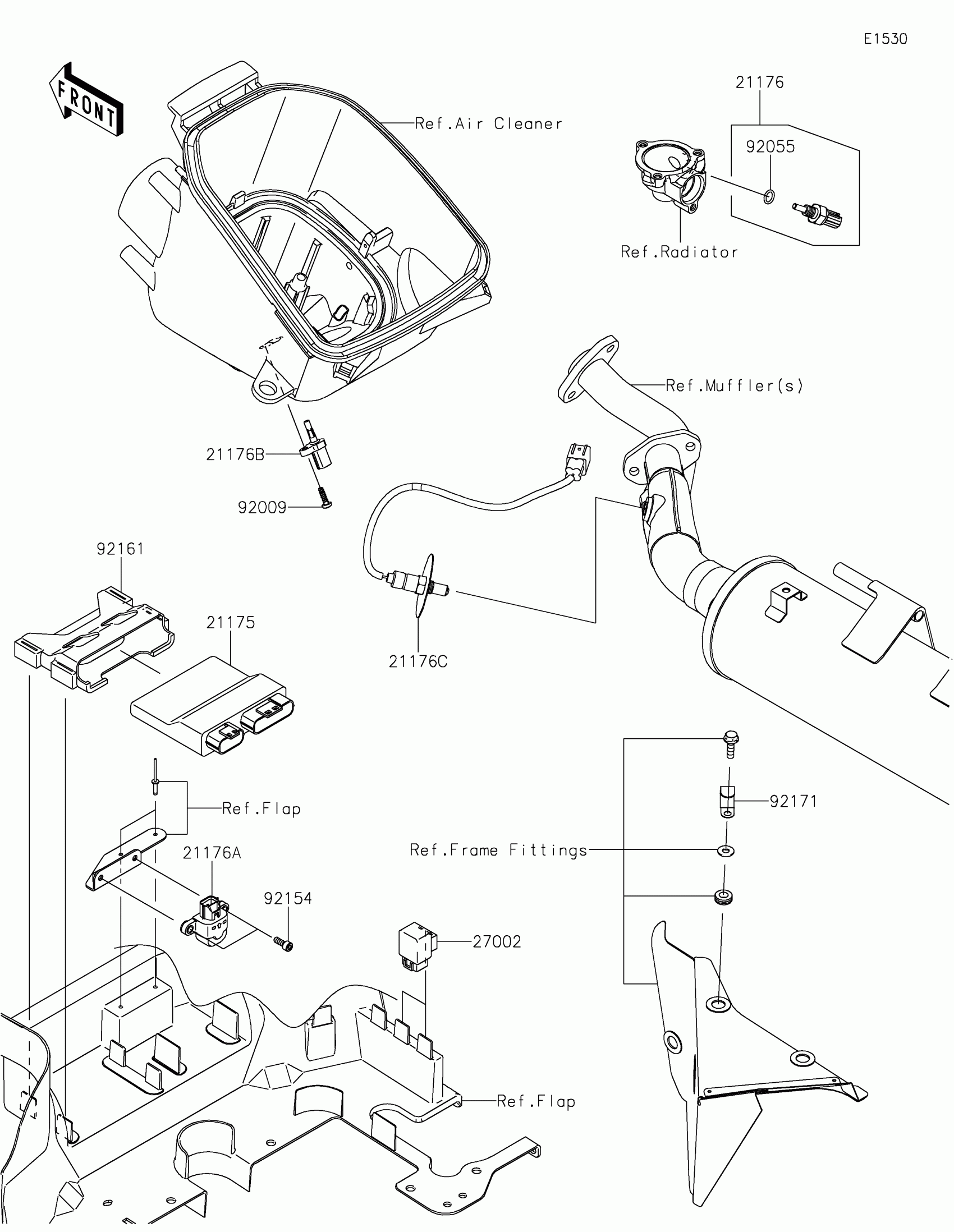

2025 Kawasaki Brute Force® 750 LE EPS Fuel Injection Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21175

CONTROL UNIT-ELECTRONIC

21175-0843

1
Out of stock

21176

SENSOR,WATER TEMP

21176-0009

1
Out of stock

21176A

SENSOR,VEHICLE-DOWN

21176-0026

1
Out of stock

21176B

SENSOR,AIR TEMPERATURE

21176-0048

1
Out of stock

21176C

SENSOR,OXYGEN

21176-0744

1
Out of stock

27002

RELAY-ASSY

27002-1062

1
Out of stock

92009

SCREW,TAPPING,5X16

92009-1984

1
Out of stock

92055

RING-O,9.5X1.9

92055-0016

1
Out of stock

92154

BOLT,SOCKET,5X14

92154-1841

1
Out of stock

92161

DAMPER

92161-0465

1
Out of stock

92171

CLAMP

92171-0739

1
Out of stock
← AIR Cleaner Fuel Pump →
