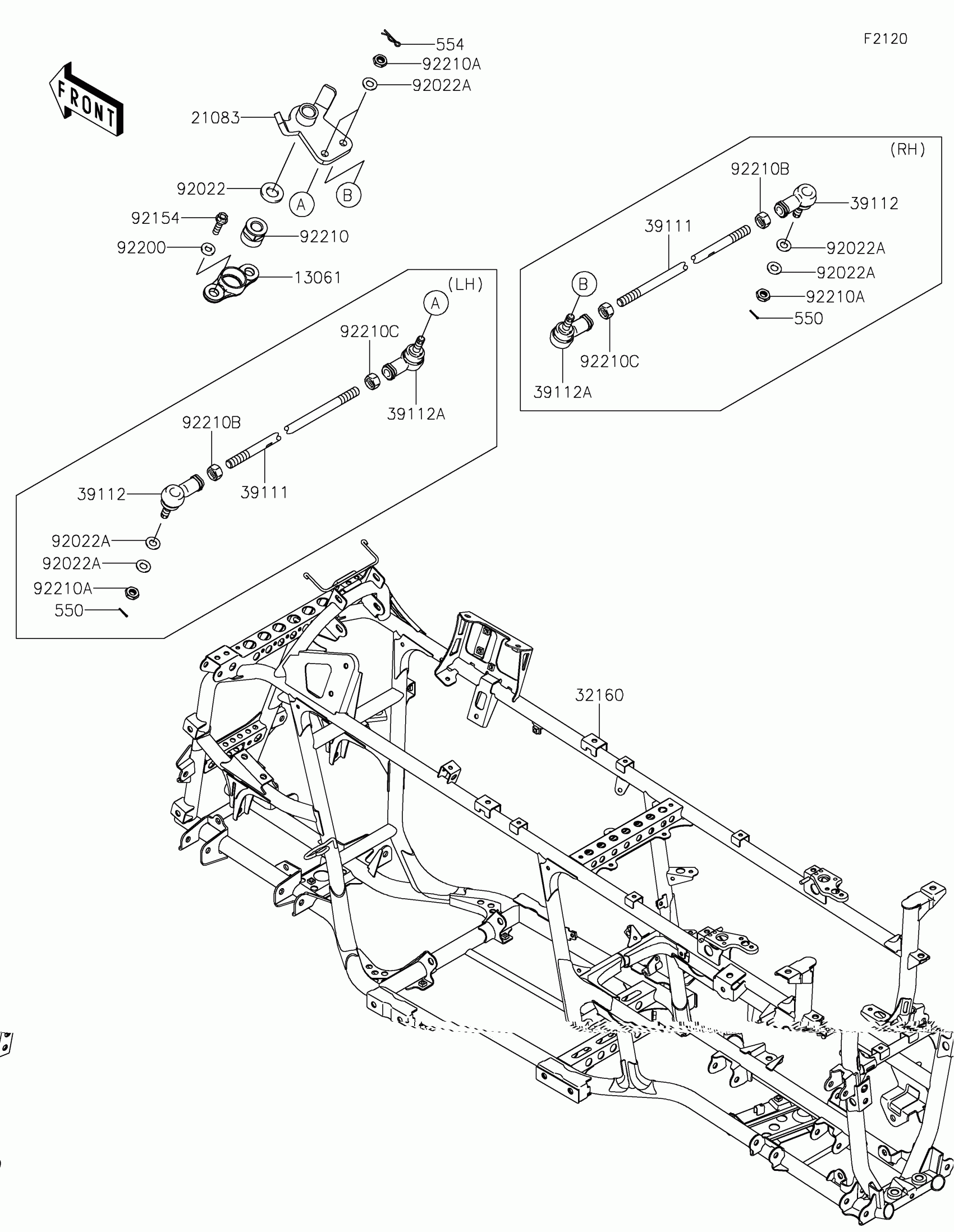

Kawasaki BRUTE FORCE® 750 LE EPS Frame Diagram

Description

Price

13061

BOSS,EPS STOPPER

13061-0611

$72.46

21083

ARM,PITMAN

21083-0053

$66.73

32160

FRAME-COMP

32160-0712

$1,260.54

39111

ROD-TIE

39111-0023

$13.62

39112

RODEND-TIE,RIGHT HANDED

39112-0009

$34.61

39112A

RODEND-TIE,LEFT HANDED

39112-0010

$34.61

92022

WASHER,16X32X3.2

92022-1701

$3.57

92022A

WASHER,10.2X20X1.5

92022-3742

$3.19

92154

BOLT,FLANGED,8X30

92154-0850

$1.89

92200

WASHER,8.2X20.0X2.5

92200-0205

$2.68

92210

NUT,16MM

92210-0751

$96.19

92210A

NUT,LOCK,10MM

92210-1184

$4.59

92210B

NUT,RIGHT HANDED

92210-1385

$5.39

92210C

NUT,LEFT HANDED

92210-1386

$5.39

550

PIN-COTTER,2.0X15

550AA2015

$0.90

554

PIN-SNAP,10MM

554DA1000

$0.73
