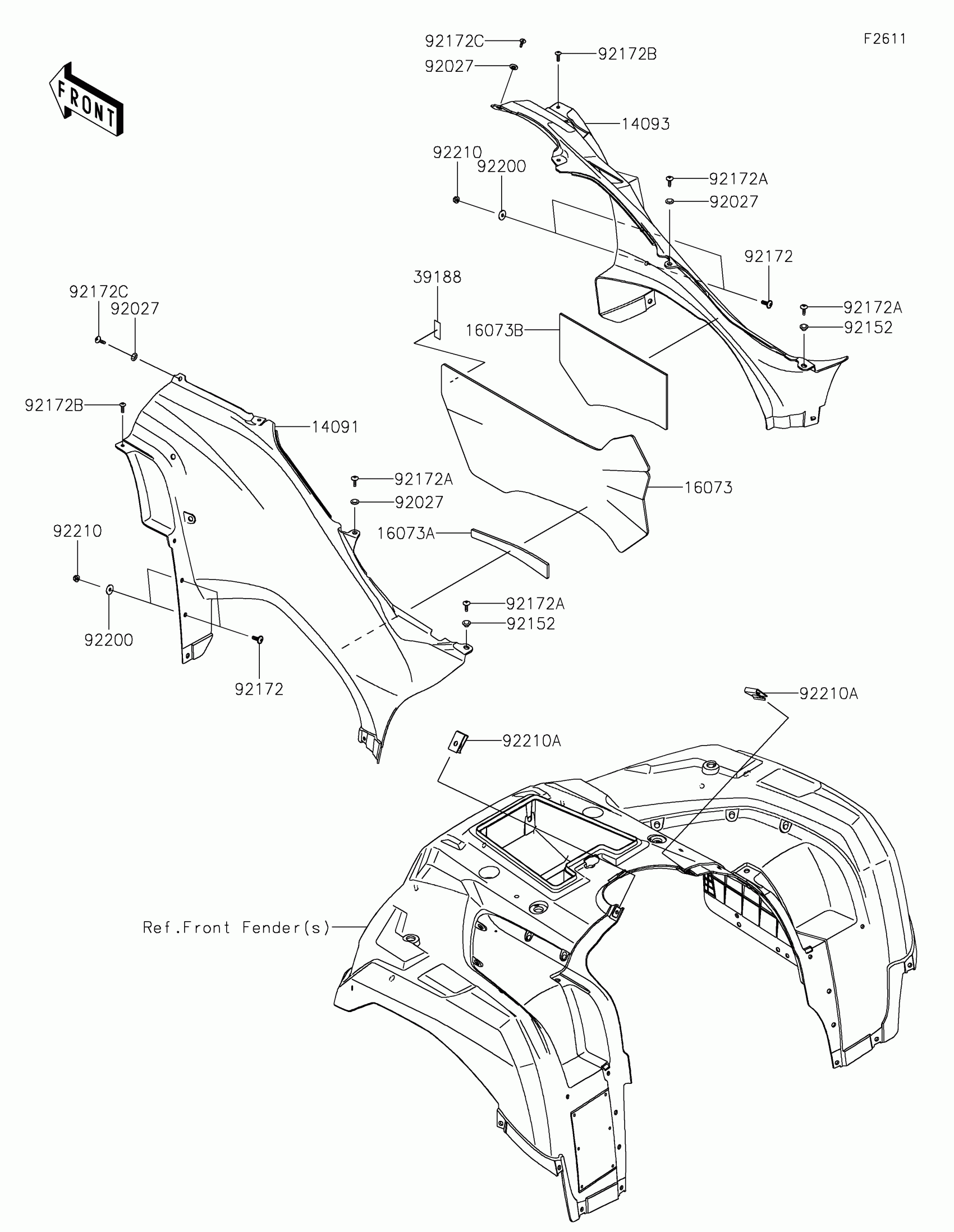

Kawasaki BRUTE FORCE® 750 EPS Side Covers Diagram

Description

Price

14091

COVER,SIDE,LH,G.BLUE

14091-0137-72W

$45.15

14093

COVER,SIDE,RH,G.BLUE

14093-1545-72W

$128.84

16073

INSULATOR,SIDE COVER,LH

16073-0723

$91.78

16073A

INSULATOR,SIDE COVER,OVERLAP

16073-0807

$4.34

16073B

INSULATOR,SIDE COVER,RH

16073-0808

$31.45

39188

TAPE,20X50

39188-0601

$8.54

92027

COLLAR

92027-4020

$3.54

92152

COLLAR,6.3X8.3X7.2

92152-1865

$0.95

92172

SCREW,6X18

92172-0002

$1.98

92172A

SCREW,6X16

92172-0236

$0.73

92172B

SCREW,5X18

92172-0428

$0.86

92172C

SCREW,TAPPING,6X20

92172-0883

$1.88

92200

WASHER,6.5X20X1.6

92200-0283

$1.08

92210

NUT,LOCK,FLANGED,6MM

92210-0303

$1.04

92210A

NUT,LEAF SPRING,6MM

92210-0624

$1.66
