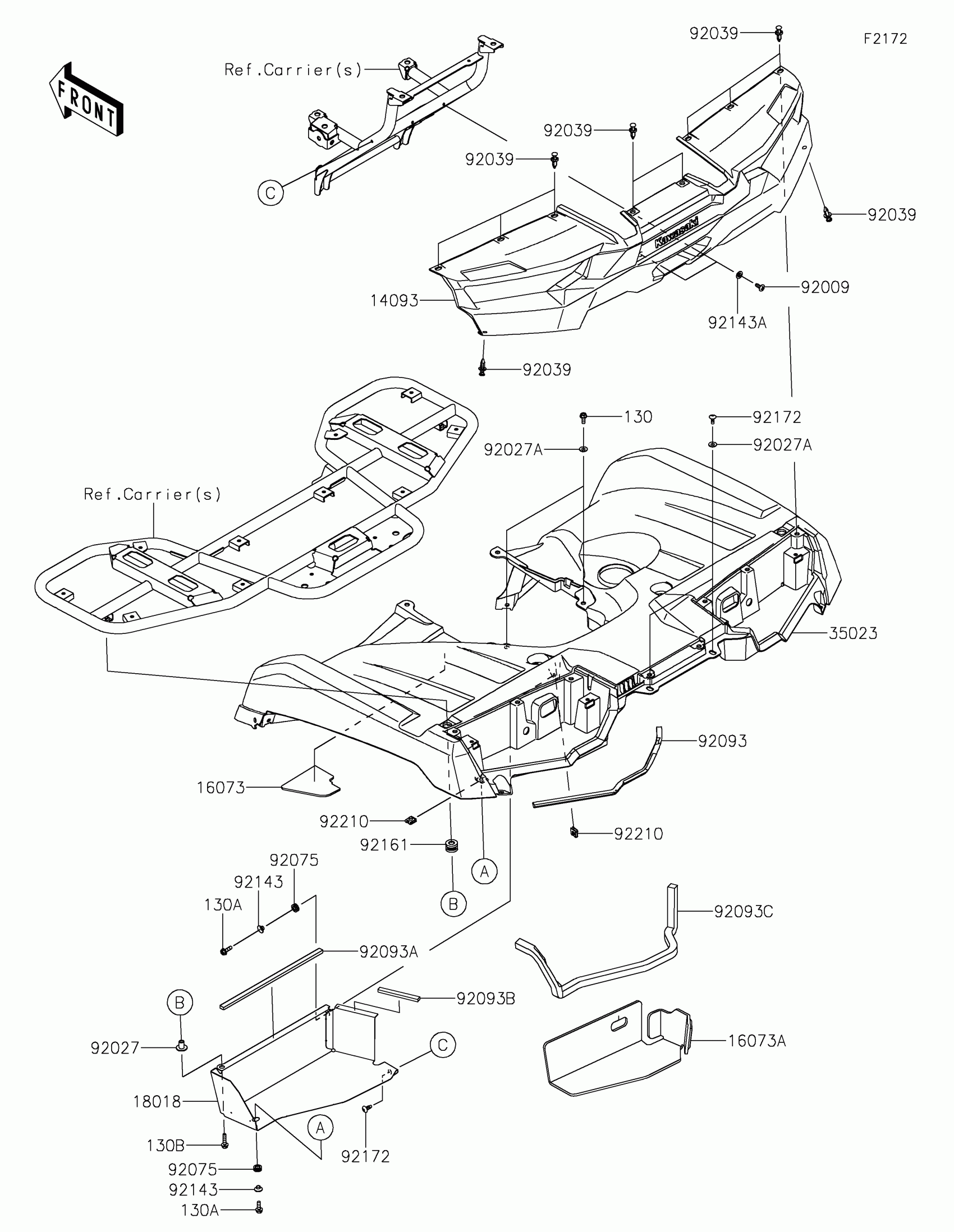

Kawasaki BRUTE FORCE® 750 EPS Rear Fender(s) Diagram

Description

Price

14093

COVER,RR

14093-1509

Unavailable

16073

INSULATOR

16073-0926

$5.88

16073A

INSULATOR,HEAT GUARD

16073-0951

$49.38

18018

PLATE-HEAT GUARD

18018-0649

$97.02

35023

FENDER-REAR,G.BLUE

35023-0498-72W

$263.73

92009

SCREW,TAPPING,6X16

92009-1166

$4.18

92027

COLLAR,L=16.1

92027-1847

$4.67

92027A

COLLAR

92027-4020

$3.54

92039

RIVET

92039-0776

$0.80

92075

DAMPER

92075-1947

$5.61

92093

SEAL,10X8X370

92093-0801

$9.02

92093A

SEAL,10X6X285

92093-0802

$5.22

92093B

SEAL,10X6X90

92093-0803

$1.97

92093C

SEAL,15X15X615

92093-0804

$20.07

92143

COLLAR

92143-1057

$3.81

92143A

COLLAR

92143-1087

$2.98

92161

DAMPER

92161-0106

$1.30

92172

SCREW,TAPPING,6X16

92172-0739

$0.73

92210

NUT

92210-0754

$1.47

130

BOLT-FLANGED,6X16

130BA0616

$0.97

130A

BOLT-FLANGED,6X18

130BA0618

$1.17

130B

BOLT-FLANGED,6X25

130BA0625

$0.97
