2026 Kawasaki Brute Force® 750 EPS Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 2026 Kawasaki Brute Force® 750 EPS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

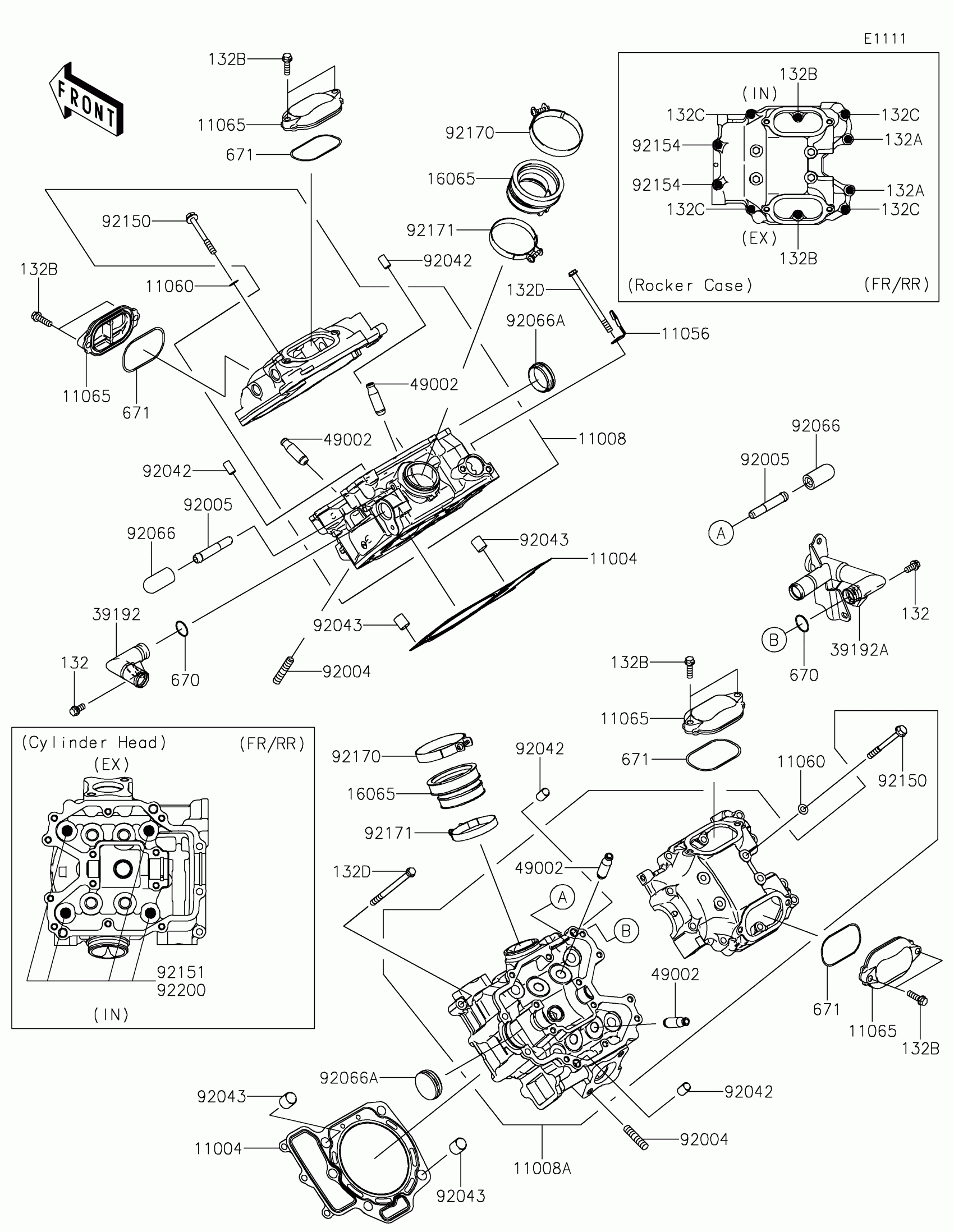

2026 Kawasaki Brute Force® 750 EPS Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11004

GASKET-HEAD

11004-0011

1
Out of stock

11008

HEAD-COMP-CYLINDER,FR

11008-1495

1
Out of stock

11008A

HEAD-COMP-CYLINDER,RR

11008-1496

1
Out of stock

11056

BRACKET

11056-1255

1
Out of stock

11060

GASKET,6.2X12X0.3

11060-1994

1
Out of stock

11065

CAP,ROCKER CASE

11065-0724

1
Out of stock

16065

HOLDER-CARBURETOR

16065-0113

1
Out of stock

39192

PIPE-WATER,FR

39192-0119

1

$37.14

In stock

39192A

PIPE-WATER,RR

39192-0120

1

$86.54

In stock

49002

GUIDE-VALVE

49002-0706

1
Out of stock

92004

STUD,8X22

92004-1217

1
Out of stock

92005

FITTING

92005-1264

1
Out of stock

92042

PIN,DOWEL,6.3X8X14

92042-007

1
Out of stock

92043

PIN,10.1X12X14

92043-4009

1
Out of stock

92066

PLUG

92066-0713

1
Out of stock

92066A

PLUG

92066-0904

1
Out of stock

92150

BOLT,6X55

92150-1302

1
Out of stock

92151

BOLT,FLANGED,10X150

92151-1917

1
Out of stock

92154

BOLT,FLANGED,6X130

92154-0993

1
Out of stock

92170

CLAMP

92170-1448

1

$6.44

In stock

92171

CLAMP

92171-0722

1
Out of stock

92200

WASHER,11.5X20.5X1.6

92200-1128

1
Out of stock

132

1

$1.12

In stock

132A

1

$2.05

In stock

132B

1

$2.29

In stock

132C

1

$2.17

In stock

132D

1

$2.05

In stock

670

O RING,16MM

670B2016

1
Out of stock

671

O RING,55MM

671D2555

1
Out of stock
