2026 Kawasaki Brute Force® 750 EPS Carrier Diagram

← All diagrams

Find the part on the Carrier diagram for your 2026 Kawasaki Brute Force® 750 EPS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

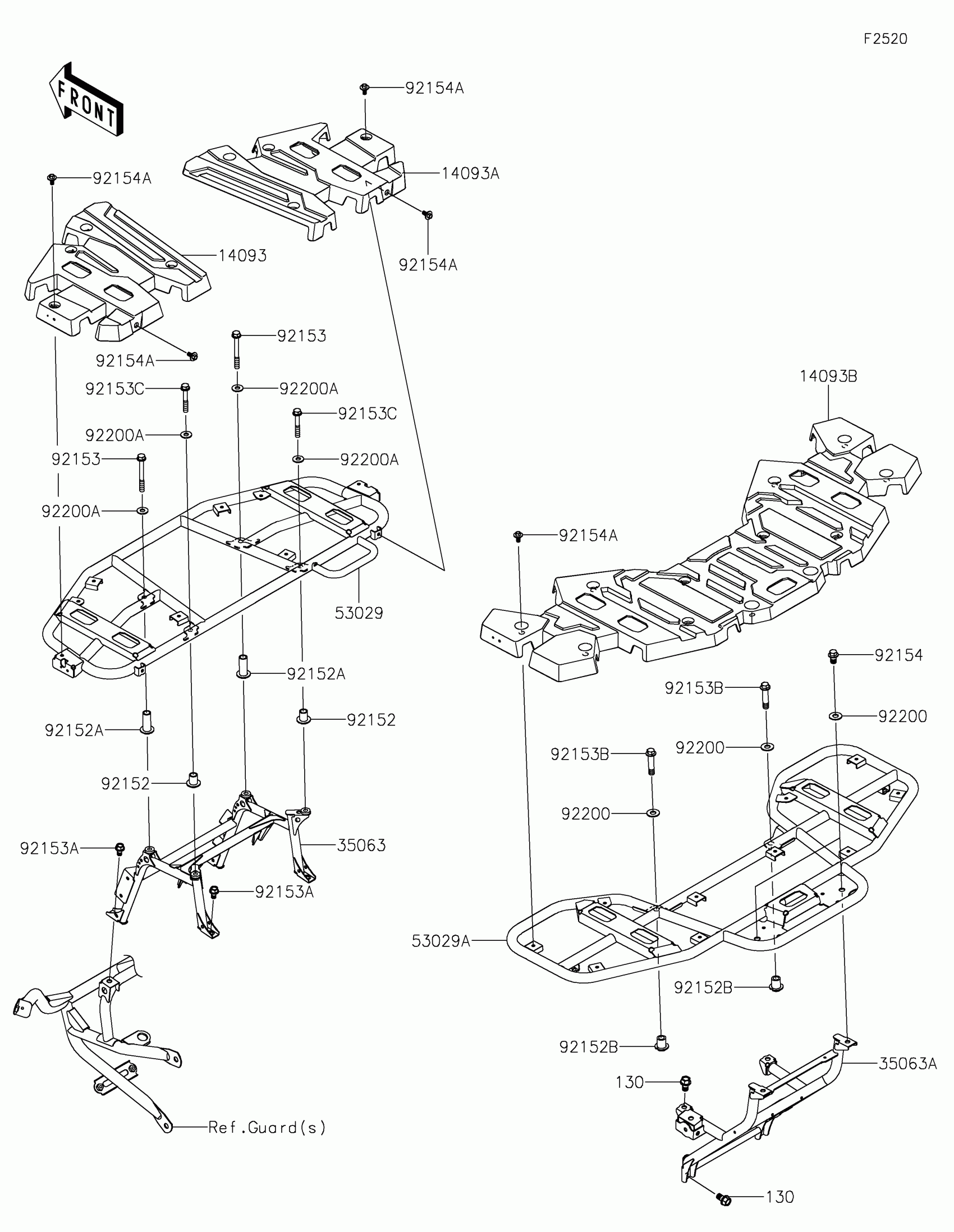

2026 Kawasaki Brute Force® 750 EPS Carrier Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14093

COVER,FR CARRIER,LH

14093-1510

1
Out of stock

14093A

COVER,FR CARRIER,RH

14093-1511

1
Out of stock

14093B

COVER,RR CARRIER

14093-1512

1
Out of stock

35063

STAY,FR CARRIER

35063-1600

1
Out of stock

35063A

STAY,RR CARRIER

35063-1601

1
Out of stock

53029

CARRIER,FR,T.BLACK

53029-0385-388

1
Out of stock

53029A

CARRIER,RR,T.BLACK

53029-0386-388

1
Out of stock

92152

COLLAR

92152-0823

1
Out of stock

92152A

COLLAR

92152-0896

1
Out of stock

92152B

COLLAR

92152-0897

1
Out of stock

92153

BOLT,FLANGED,8X70

92153-0748

1
Out of stock

92153A

BOLT,FLANGED,8X14

92153-0931

1
Out of stock

92153B

BOLT,FLANGED,10X44

92153-1374

1
Out of stock

92153C

BOLT,FLANGED,8X50

92153-1755

1
Out of stock

92154

BOLT,FLANGED,10X16

92154-0916

1
Out of stock

92154A

BOLT,FLANGED,6X9

92154-7185

1
Out of stock

92200

WASHER,10.3X23X1.6

92200-0724

1
Out of stock

92200A

WASHER,8.5X20X1.6

92200-0774

1
Out of stock

130

BOLT-FLANGED,10X16

130CA1016

1

$2.68

In stock
