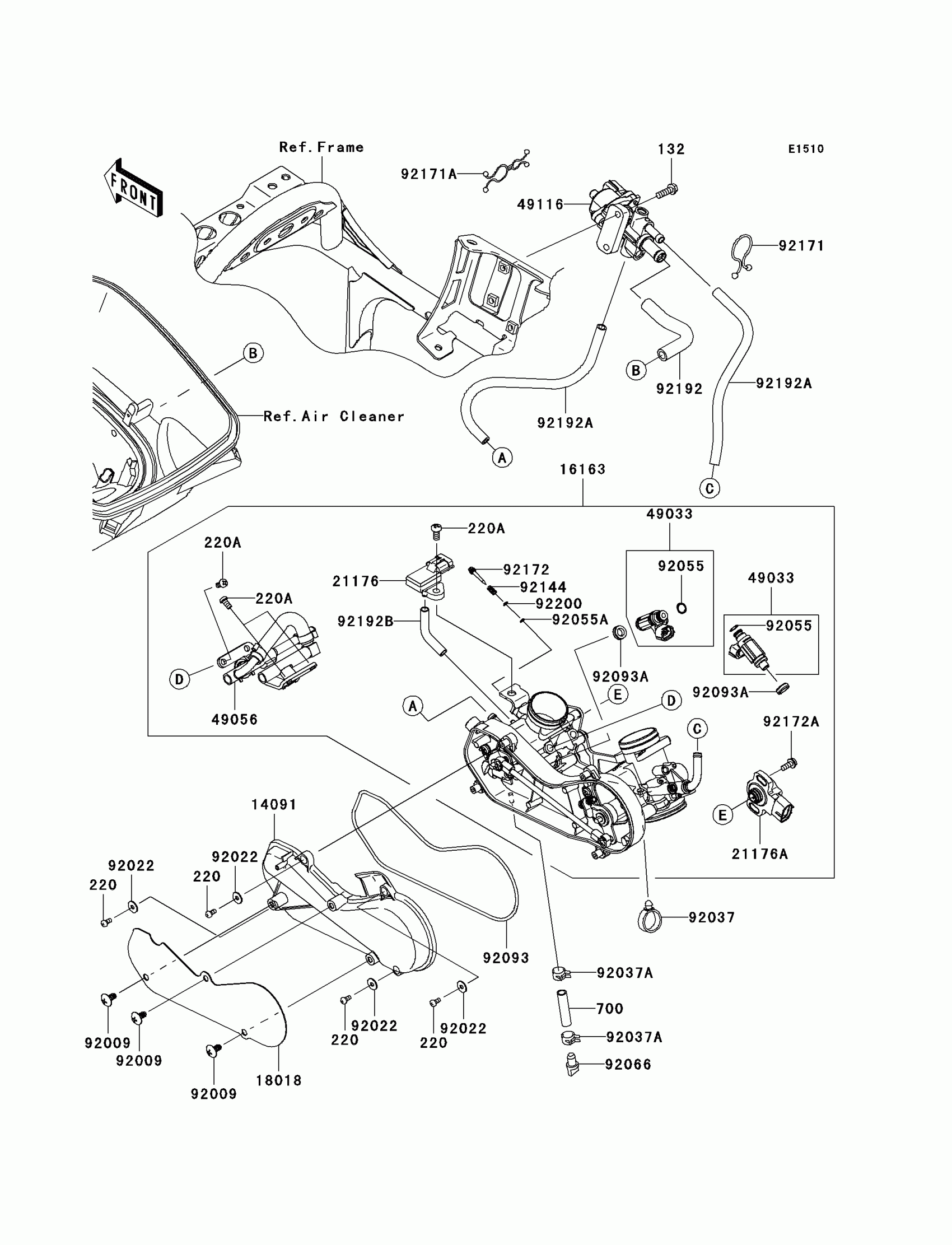

Kawasaki Brute Force 750 4x4i Realtree APG HD Throttle Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X18

132BD0618

$3.10

220

SCREW-PAN-CROS,4X8

220AA0408

$0.73

220A

SCREW-PAN-CROS,6X12

220AA0612

$1.10

700

TUBE-PVC

700Q0740

$7.90

14091

COVER

14091-0737

$24.19

16163

THROTTLE-ASSY,36EIS

16163-0125

Unavailable

18018

PLATE-HEAT GUARD

18018-0010

$4.90

21176

SENSOR,PRESSURE

21176-0058

$144.21

21176A

SENSOR,TPS

21176-0100

$222.67

49033

NOZZLE-INJECTION

49033-1060

$137.70

49056

PIPE-INJECTION

49056-0021

$371.44

49116

VALVE-ASSY,ISC

49116-0021

$188.10

92009

SCREW,6X12

92009-1480

$2.59

92022

WASHER,5.2X13X1

92022-1380

$3.43

92037

CLAMP,HOSE

92037-1827

$5.93

92037A

CLAMP

92037-2113

$0.97

92055

RING-O,INJECTION NOZZLE

92055-1622

$1.64

92055A

RING-O,AIR SCREW

92055-1658

$4.75

92066

PLUG,DRAIN

92066-1211

$6.75

92093

SEAL

92093-0082

$4.70

92093A

SEAL

92093-0127

$8.38

92144

SPRING,THROTTLE STOP SCREW

92144-1674

$4.54

92171

CLAMP

92171-1185

$2.03

92171A

CLAMP

92171-1438

$3.29

92172

SCREW

92172-0156

$14.39

92172A

SCREW

92172-0254

$2.42

92192

TUBE

92192-0437

$7.41

92192A

TUBE

92192-0439

$7.27

92192B

TUBE,3.2X7.4X50

92192-0578

$3.87

92200

WASHER,PILOT AIR SCREW

92200-1564

$2.12
