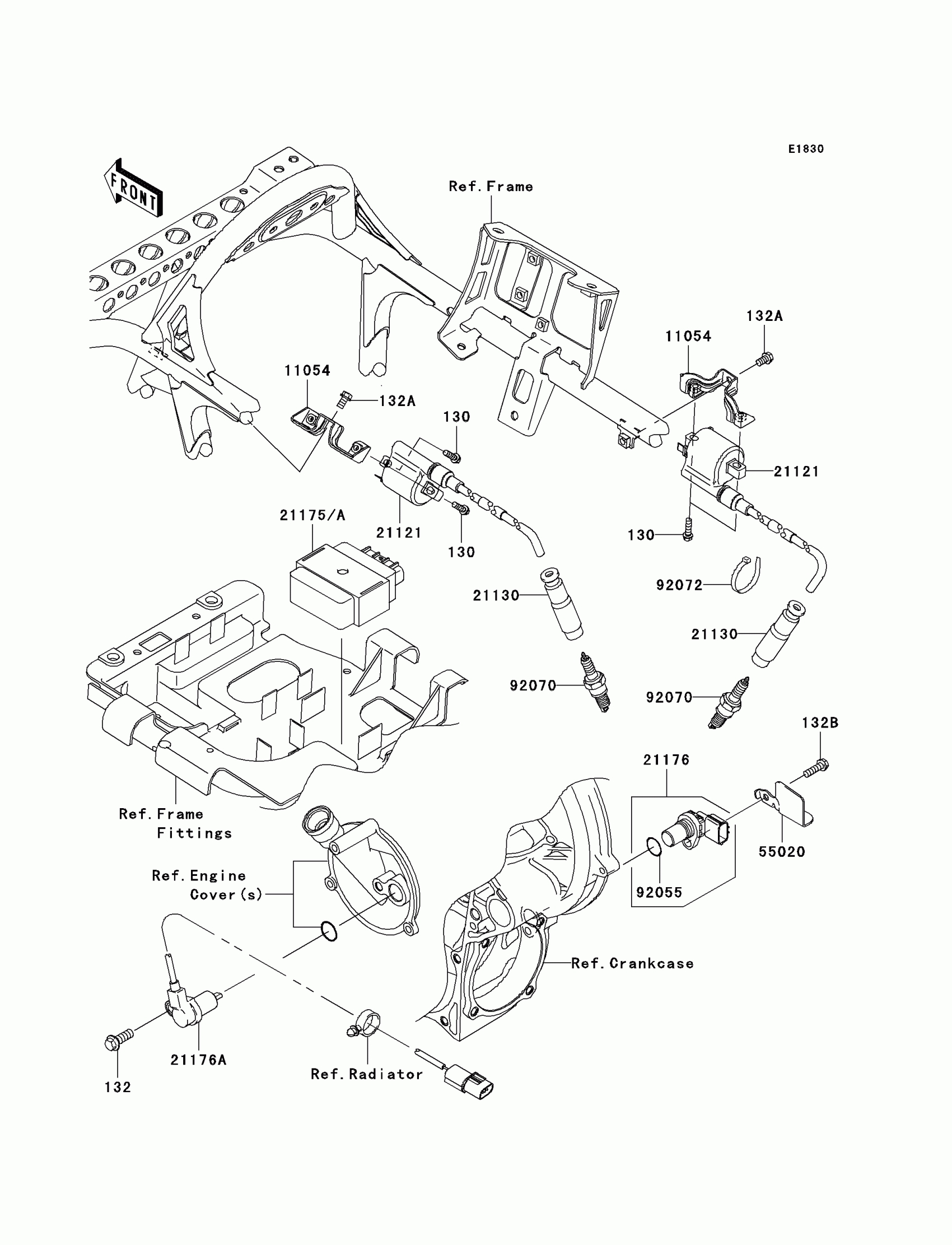

Kawasaki Brute Force 750 4x4i Realtree APG HD Ignition System Diagram

Description

Price

130

BOLT-FLANGED,5X18

130BB0518

$1.71

132

BOLT-FLANGED-SMALL,8X22

132BA0822

$2.20

132A

BOLT-FLANGED-SMALL,6X10

132BD0610

$4.14

132B

BOLT-FLANGED-SMALL,6X20

132BD0620

$3.28

11054

BRACKET

11054-1328

$6.78

21121

COIL-IGNITION

21121-0039

$70.70

21130

CAP-SPARK PLUG

21130-1071

$34.23

21175A

CONTROL UNIT-ELECTRONIC

21175-0216

Unavailable

21176

SENSOR,SPEED

21176-1104

$116.50

21176A

SENSOR,REVERSE

21176-1109

$112.10

55020

GUARD

55020-0247

Unavailable

92055

RING-O

92055-1718

$2.00

92070

PLUG-SPARK,CR7E(NGK)

92070-1209

$6.44

92072

BAND,L=188

92072-1239

$1.51
