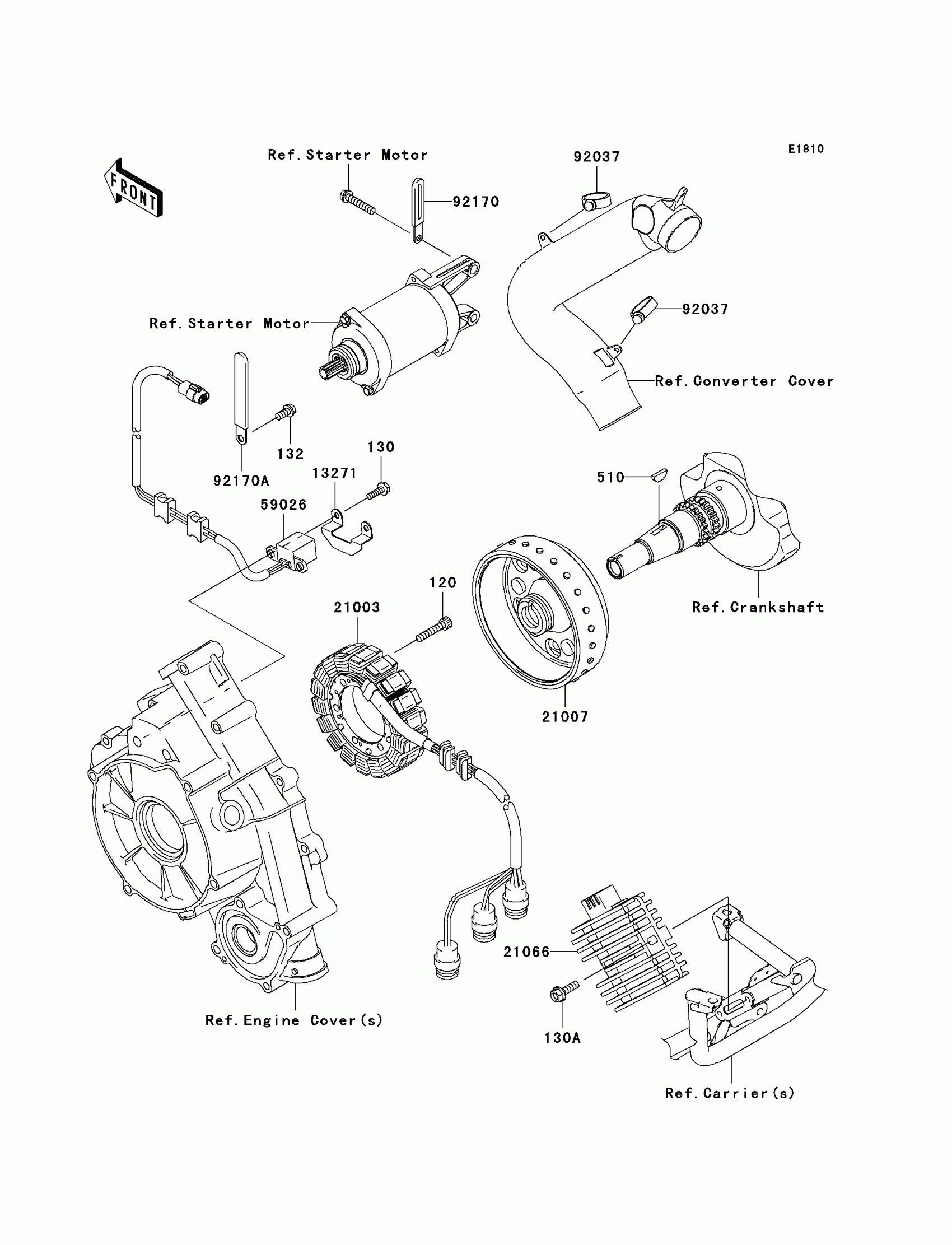

Kawasaki Brute Force 750 4x4i Realtree APG HD Generator Diagram

Description

Price

120

BOLT-SOCKET,6X30

120CB0630

$2.39

130

BOLT-FLANGED,5X16

130BA0516

$0.85

130A

BOLT-FLANGED,6X20

130BB0620

$0.50

132

BOLT-FLANGED-SMALL,6X12

132BD0612

$1.73

510

KEY-WOODRUFF

510A4200

$2.37

13271

PLATE

13271-1369

$2.37

21003

STATOR

21003-0071

Unavailable

21007

ROTOR

21007-0111

$672.61

21066

REGULATOR-VOLTAGE

21066-0030

$203.63

59026

COIL-PULSING

59026-0005

$105.63

92037

CLAMP,HOSE

92037-1827

$5.93

92170

CLAMP

92170-1514

$3.43

92170A

CLAMP

92170-1925

$1.98
