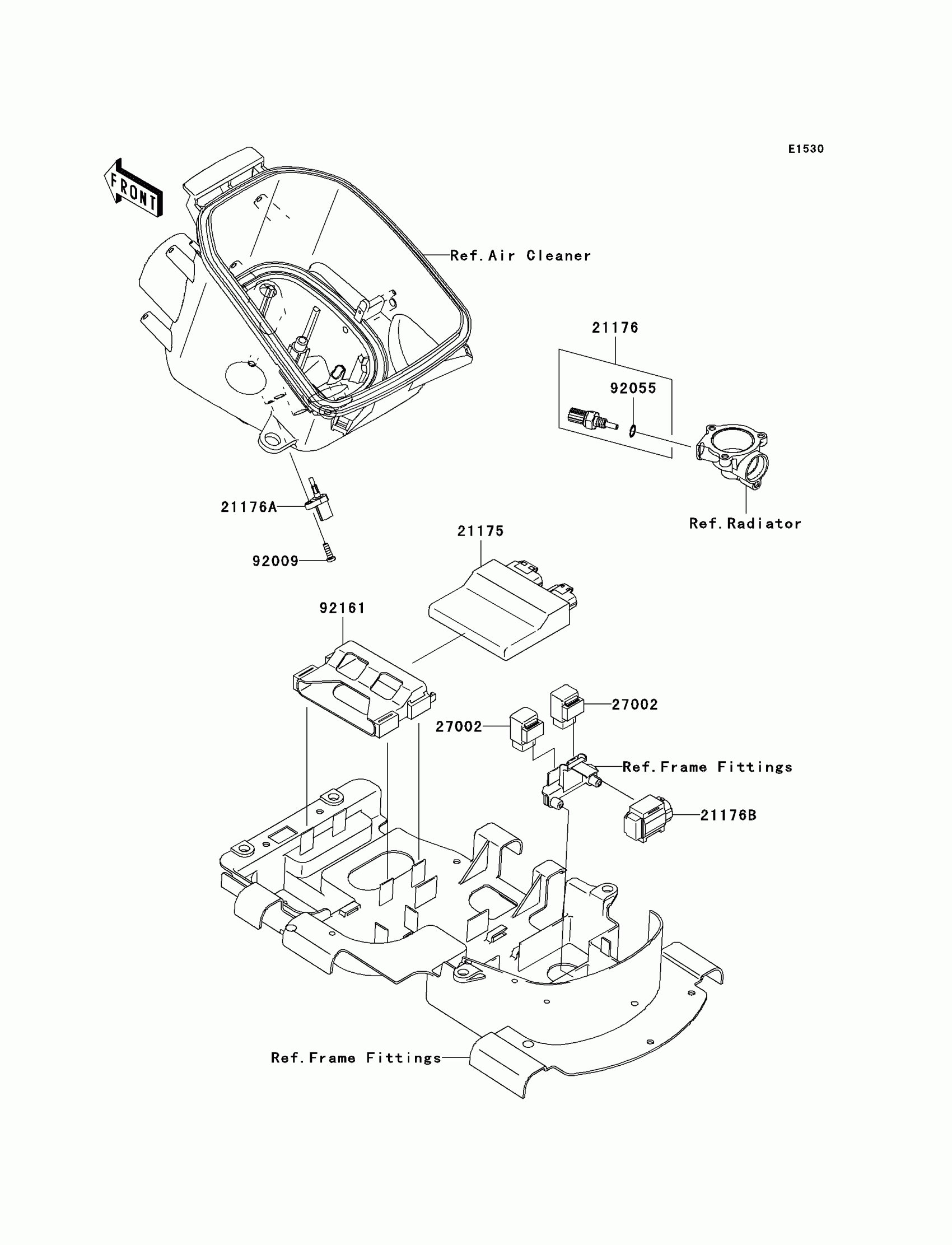

Kawasaki Brute Force 750 4x4i Realtree APG HD Fuel Injection Diagram

#

Description
Price

21175

CONTROL UNIT-ELECTRONIC

21175-0273

$743.36

21176

SENSOR,WATER TEMP

21176-0009

$63.44

21176A

SENSOR,AIR TEMPERATURE

21176-0048

$24.07

21176B

SENSOR,VEHICLE-DOWN

21176-0066

$104.78

27002

RELAY-ASSY

27002-1062

$41.21

92009

SCREW,TAPPING,5X16

92009-1984

$2.12

92055

RING-O,9.5X1.9

92055-0016

$7.06

92161

DAMPER

92161-0465

$7.92
