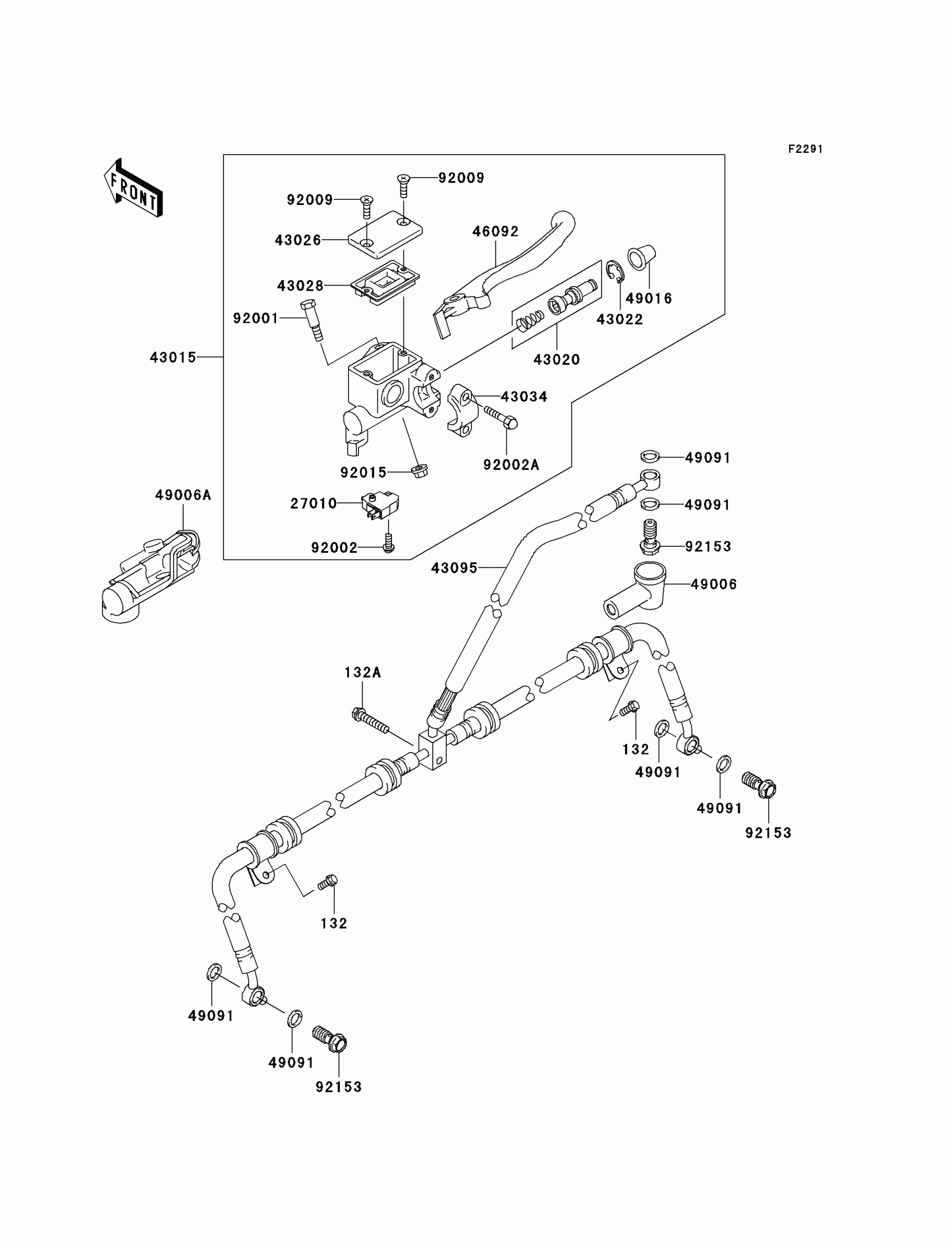

Kawasaki Brute Force 750 4x4i Realtree APG HD Front Master Cylinder Diagram

Description

Price

132

BOLT-FLANGED-SMALL,5X12

132BB0512

$2.92

132A

BOLT-FLANGED-SMALL,6X30

132BB0630

$3.28

27010

SWITCH,BRAKE

27010-0025

$33.39

43015

CYLINDER-ASSY-MASTER,FR

43015-0036

$389.79

43020

PISTON-COMP-BRAKE,FR

43020-1054

$59.90

43022

STOPPER-BRAKE,PISTON

43022-1010

$3.69

43026

CAP-BRAKE

43026-1074

$23.33

43028

DIAPHRAGM

43028-1061

$12.79

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1016

$15.29

43095

HOSE-BRAKE,FR

43095-0078

$172.50

46092

LEVER-GRIP,FRONT BRAKE

46092-1208

$19.94

49006

BOOT,DUST

49006-1040

$9.11

49006A

BOOT

49006-1338

$10.03

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$6.90

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$1.81

92001

BOLT,FRONT BRAKE LEVER

92001-1728

$11.26

92002

BOLT,SCREW,4X12

92002-1323

$3.12

92002A

BOLT

92002-1894

$4.37

92009

SCREW,4MM

92009-1458

$2.59

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$4.37

92153

BOLT,OIL,L=23

92153-0627

$4.35
