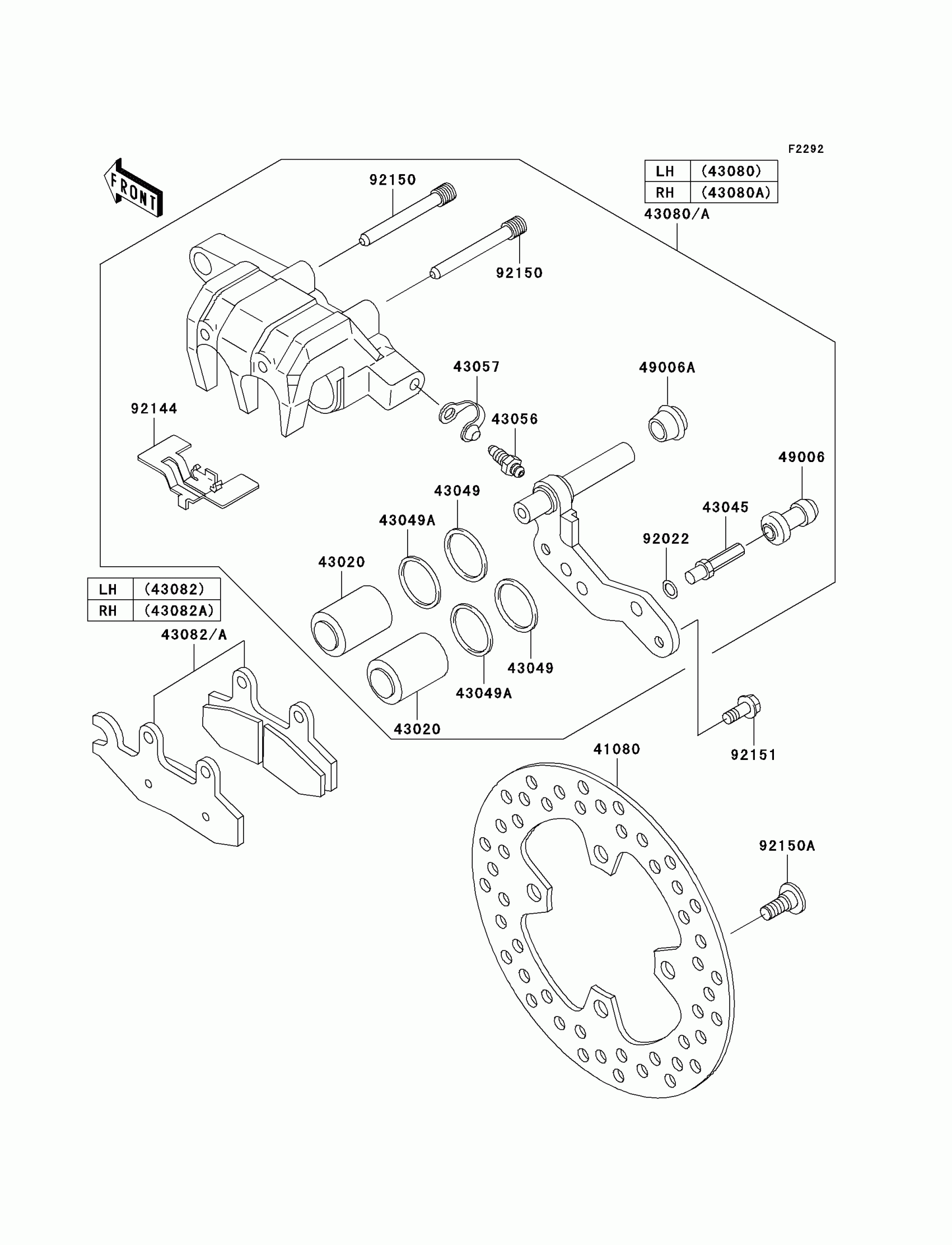

Kawasaki Brute Force 750 4x4i Realtree APG HD Front Brake Diagram

Description

Price

41080

DISC,FR

41080-1513

Unavailable

43020

PISTON-COMP-BRAKE

43020-1101

$54.04

43045

SHAFT-CALIPER

43045-1010

$19.49

43049

PACKING

43049-1063

$6.39

43049A

PACKING

43049-1064

$4.88

43056

BREATHER

43056-1055

Unavailable

43057

CAP-BREATHER

43057-1001

$3.89

43080

CALIPER-SUB-ASSY,FR,LH,BLACK

43080-0019-DJ

$426.93

43080A

CALIPER-SUB-ASSY,FR,RH,BLACK

43080-0020-DJ

$426.93

43082

PAD-ASSY-BRAKE,FR,LH

43082-0022

$64.38

43082A

PAD-ASSY-BRAKE,FR,RH

43082-0023

$64.38

49006

BOOT,CALIPER

49006-1088

$9.20

49006A

BOOT,CALIPER

49006-1242

$4.34

92022

WASHER,WAVE

92022-1373

$3.53

92144

SPRING,PAD

92144-1319

$7.63

92150

BOLT

92150-1144

$7.86

92150A

BOLT,SOCKET,8X20

92150-1800

$6.06

92151

BOLT,FLANGED,8X19

92151-1793

$2.02
