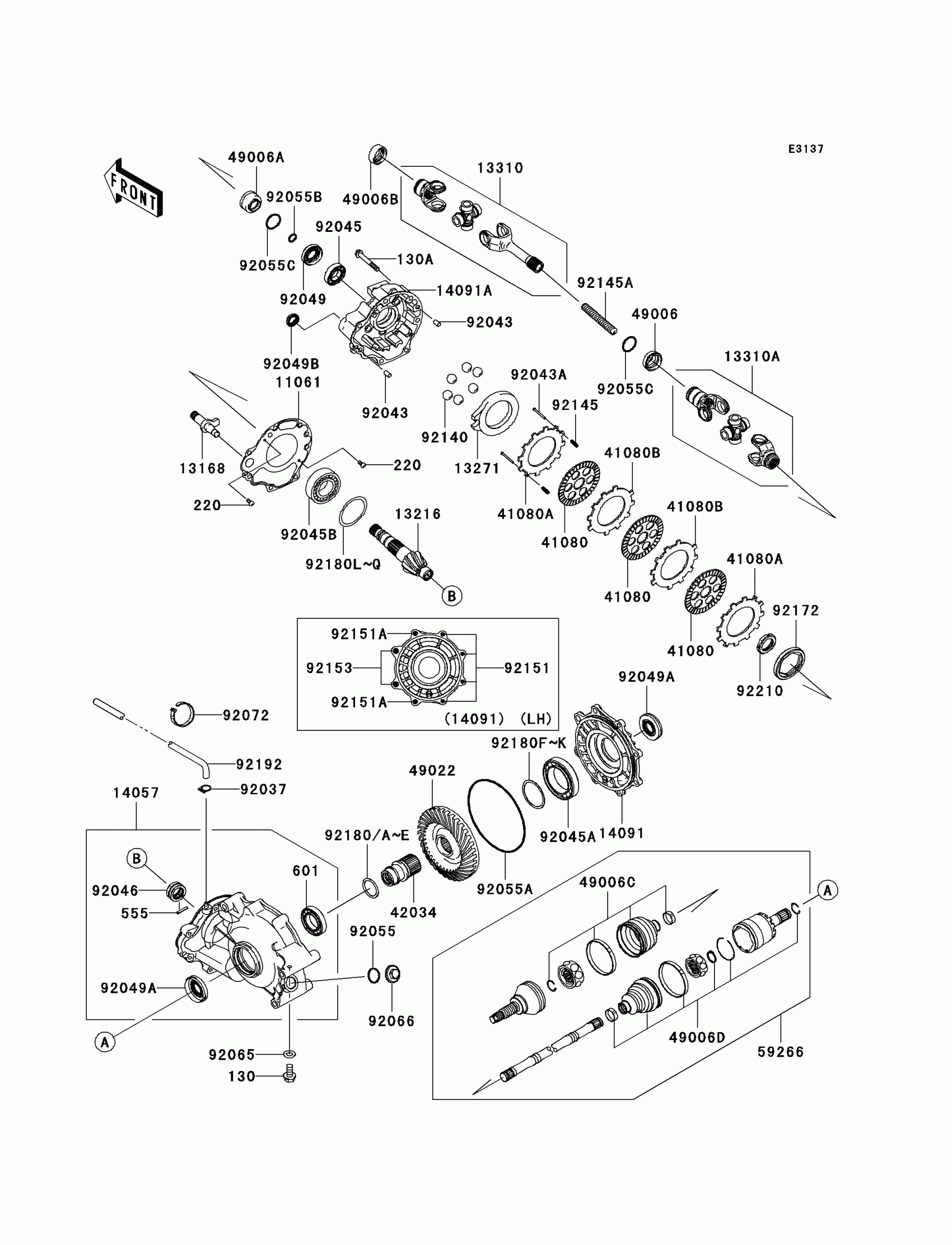

Kawasaki Brute Force 750 4x4i Realtree APG HD Drive Shaft-Rear Diagram

#

Description
Price

11061

GASKET,SOFT METAL

11061-0059

$29.88

13168

LEVER,BRAKE

13168-0042

$39.27

13216

GEAR-COMP

13216-0017

Unavailable

13271

PLATE,CAM

13271-0539

Unavailable

13310

SHAFT-ASSY,ENGINE SIDE

13310-0013

Unavailable

13310A

SHAFT-ASSY,GEAR-ASSY SIDE

13310-0014

$232.34

14057

CASE-COMP-GEAR

14057-0002

Unavailable

14091

COVER,RH

14091-0142

$70.53

14091A

COVER,FR

14091-0143

$113.97

41080

DISC,FRICTION

41080-1482

$45.10

41080A

DISC,PRESSURE

41080-1483

$14.78

41080B

DISC,SEPARATER

41080-1484

$14.78

42034

COUPLING

42034-0006

$80.49

49006

BOOT

49006-0007

$3.26

49006A

BOOT

49006-0008

$3.26

49006B

BOOT

49006-0021

$14.73

49006C

BOOT,UJ

49006-0064

$96.45

49006D

BOOT,DOJ

49006-0065

$96.45

49022

GEAR-BEVEL,35T

49022-0009

Unavailable

59266

JOINT-BALL

59266-0023

$668.65

92037

CLAMP-HOSE

92037-1104

$1.27

92043

PIN,8X14

92043-1567

$1.88

92043A

PIN,3X35

92043-1617

$2.00

92045

BEARING-BALL,#6005

92045-0077

Unavailable

92045A

BEARING-BALL,55X90X18

92045-0078

Unavailable

92045B

BEARING-BALL,BX30-1C3 UR3

92045-0099

Unavailable

92046

BEARING-NEEDLE,AH502504A

92046-1280

$64.90

92049

SEAL-OIL,HTGY 24X45X9.5

92049-0028

$9.46

92049A

SEAL-OIL,SDD7 25X57X7 HS

92049-0029

$9.46

92049B

SEAL-OIL,TC17X28X6

92049-1537

$9.36

92055

RING-O

92055-0122

$3.11

92055A

RING-O,158.5X3.70

92055-1631

$12.32

92055B

RING-O,18X24X3

92055-1633

$4.90

92055C

RING-O,30X35X2.5

92055-1693

$4.90

92065

GASKET,8.5X16X1

92065-023

$2.74

92066

PLUG

92066-1303

$10.27

92072

BAND,L=186

92072-056

$3.97

92140

BALL,D/O#12

92140-1064

$1.98

130

BOLT-FLANGED,8X16

130BA0816

$1.03

130A

BOLT-FLANGED,8X60

130CD0860

$3.36

220

SCREW-PAN-CROS,4X8

220AA0408

$0.73

555

PIN-SPRING

555A0428

$1.85

601

BEARING-BALL,#6007

601A6007

$32.82

92145

SPRING,RR BRAKE

92145-1301

$1.59

92145A

SPRING,PROPELLER SHAFT

92145-1304

$2.61

92151

BOLT,8X30

92151-1908

$2.29

92151A

BOLT,10X35

92151-1909

$2.63

92153

BOLT,12X35

92153-0311

$3.75

92172

SCREW,SET,75X10

92172-0341

$90.10

92180

SHIM,35.2X44.0X1.2

92180-0161

$7.27

92180A

SHIM,35.2X44.0X1.0

92180-0162

$7.27

92180B

SHIM,35.2X44.0X0.8

92180-0163

$7.27

92180C

SHIM,35.2X44.0X0.5

92180-0164

$7.27

92180D

SHIM,35.2X44.0X0.2

92180-0165

$7.27

92180E

SHIM,35.2X44.0X0.15

92180-0166

$7.27

92180F

SHIM,55X64X0.15

92180-1417

$5.08

92180G

SHIM,55X64X0.20

92180-1418

$5.08

92180H

SHIM,55X64X0.50

92180-1419

$4.59

92180I

SHIM,55X64X0.80

92180-1420

$5.08

92180J

SHIM,55X64X1.00

92180-1421

$5.08

92180K

SHIM,55X64X1.20

92180-1422

$5.08

92180L

SHIM,60X72X0.15

92180-1423

$7.54

92180M

SHIM,60X72X0.20

92180-1424

$6.09

92180N

SHIM,60X72X0.50

92180-1425

$7.54

92180O

SHIM,60X72X0.80

92180-1426

$6.09

92180P

SHIM,60X72X1.00

92180-1427

$7.54

92180Q

SHIM,60X72X1.20

92180-1428

$7.54

92192

TUBE,BREATHER,L=1680MM

92192-0210

$17.25

92210

NUT,30MM

92210-1294

$41.60
