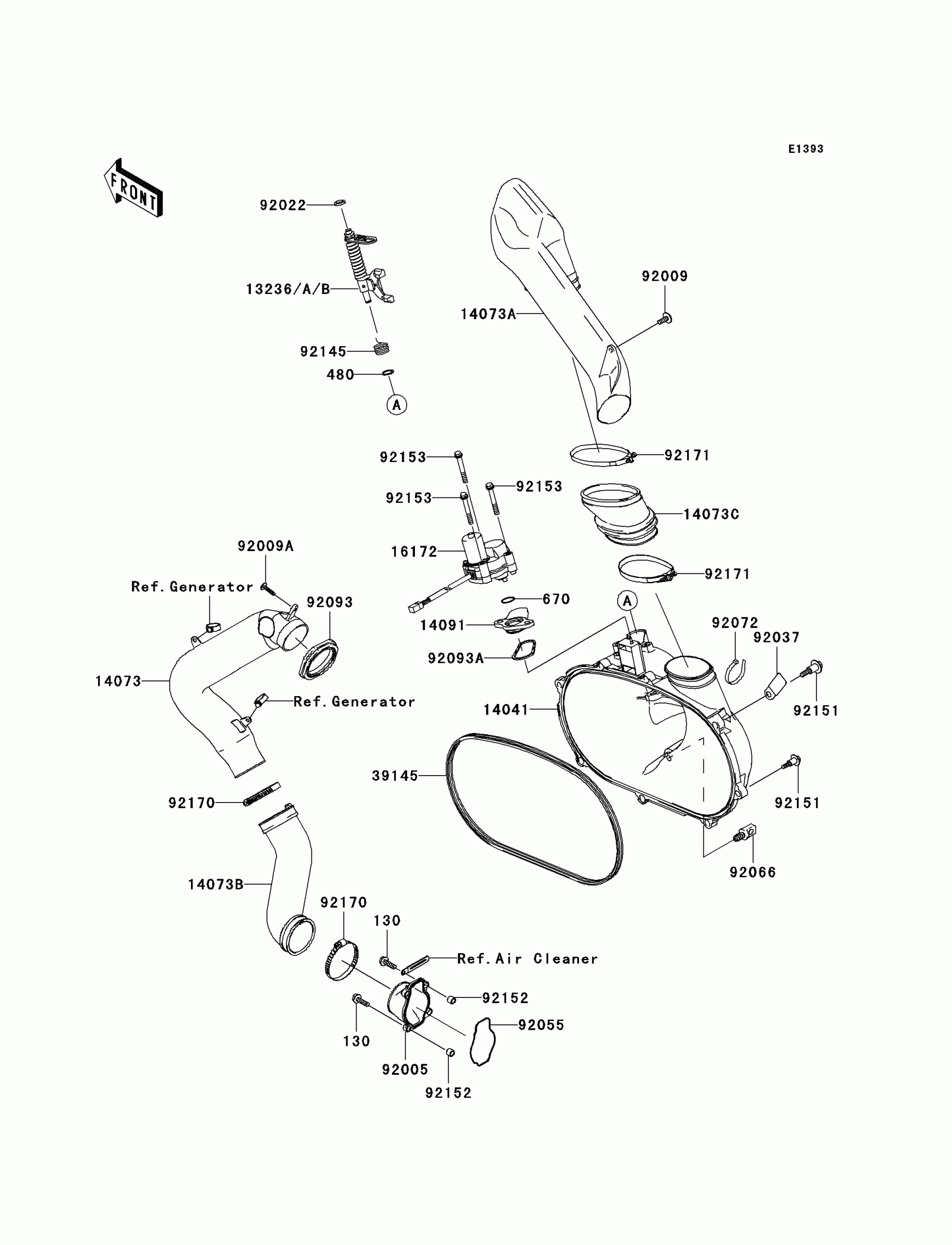

Kawasaki Brute Force 750 4x4i Realtree APG HD Converter Cover Diagram

Description

Price

130

BOLT-FLANGED,6X20

130CD0620

$1.51

480

CIRCLIP-TYPE-C,10MM

480J1000

$0.66

670

O RING

670D3022

$2.29

13236

LEVER-COMP,YELLOW

13236-0046

$134.44

13236A

LEVER-COMP,GREEN

13236-0047

$134.44

13236B

LEVER-COMP,PAINT LESS

13236-0048

$134.44

14041

COVER-COMP

14041-0004

Unavailable

14073

DUCT,INTAKE

14073-0025

$21.83

14073A

DUCT,EXHAUST

14073-0026

$31.19

14073B

DUCT,INTAKE JOINT

14073-0027

$20.81

14073C

DUCT,EXHAUST JOINT

14073-0028

$12.72

14091

COVER

14091-1421

Unavailable

16172

ACTUATOR

16172-0006

Unavailable

39145

TRIM-SEAL

39145-1135

Unavailable

92005

FITTING

92005-1387

$11.68

92009

SCREW,6X16

92009-1694

$3.12

92009A

SCREW,TAPPING,5X20

92009-1993

$0.98

92022

WASHER,10.2X16X1

92022-1829

$3.43

92037

CLAMP

92037-1780

$5.71

92055

RING-O

92055-1630

$8.32

92066

PLUG,DRAIN,11X19

92066-1580

$4.97

92072

BAND,L=188

92072-1239

$1.51

92093

SEAL

92093-0016

$6.03

92093A

SEAL

92093-1548

$9.73

92145

SPRING

92145-1567

$2.27

92151

BOLT,FLANGED,6X30

92151-1686

$7.48

92152

COLLAR

92152-1332

$3.33

92153

BOLT,6X47

92153-0678

$2.47

92170

CLAMP

92170-1764

$9.09

92171

CLAMP

92171-0208

Unavailable
