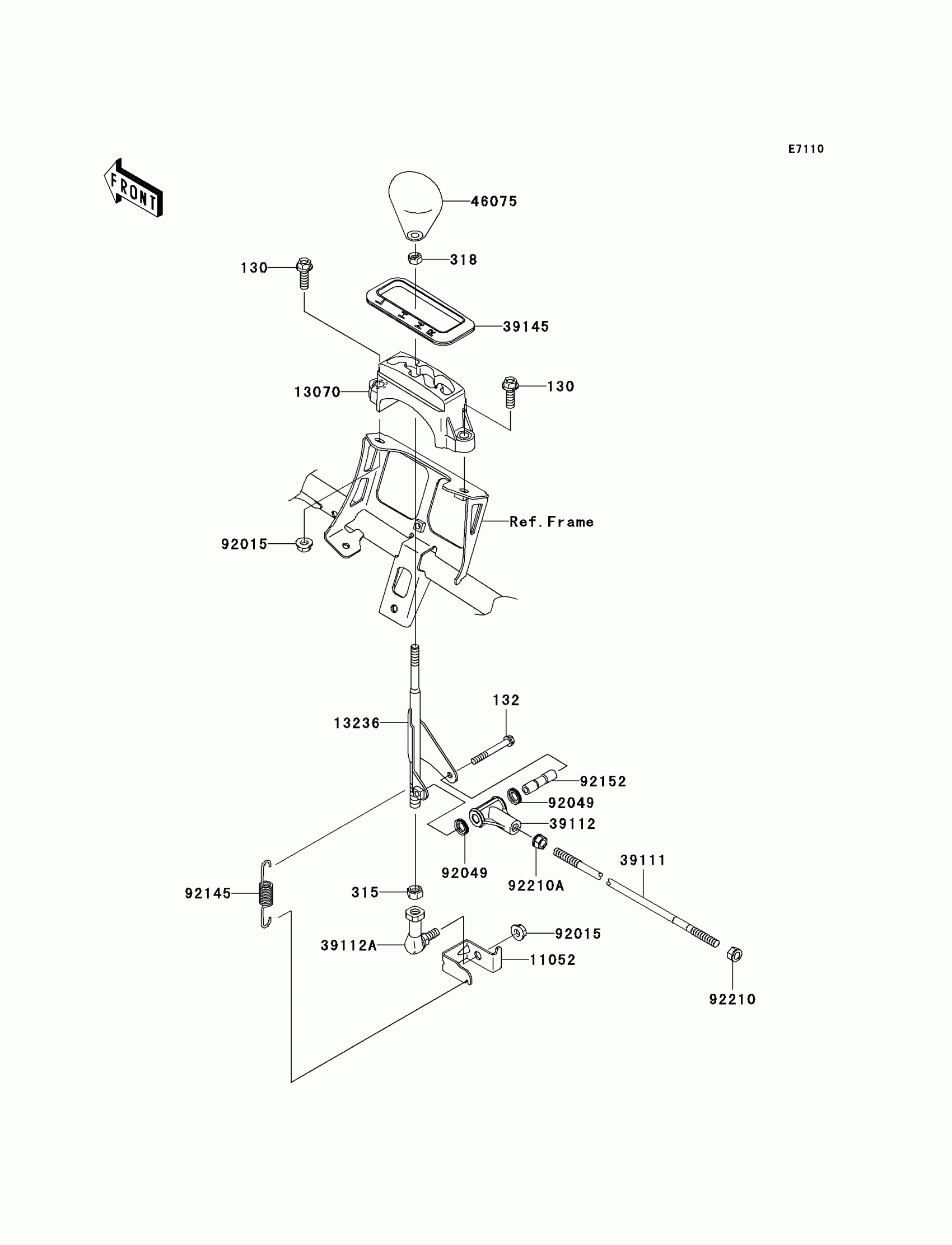

Kawasaki Brute Force 750 4x4i Realtree APG HD Control Diagram

Description

Price

130

BOLT-FLANGED,8X25

130CD0825

$2.20

132

BOLT-FLANGED-SMALL,6X50

132BB0650

$4.24

315

NUT-HEX-FINE,10MM

315AA1000

$0.63

318

NUT-HEX-SMALL,8MM

318BA0800

$1.20

11052

BRACKET,CONTROL

11052-1476

$5.39

13070

GUIDE,CONTROL SHAFT

13070-1396

$47.70

13236

LEVER-COMP,SHIFT

13236-0034

$35.20

39111

ROD-TIE,SHIFT

39111-1174

$20.88

39112

RODEND-TIE

39112-1079

$25.83

39112A

RODEND-TIE,CONTROL PIVOT

39112-1084

Unavailable

39145

TRIM-SEAL,CONTROL GUIDE

39145-1121

$4.46

46075

GRIP,SHIFT

46075-0046

$27.63

92015

NUT,8MM

92015-1432

$5.21

92049

SEAL-OIL

92049-1458

$9.27

92145

SPRING

92145-0130

$4.07

92152

COLLAR,RODEND-TIE

92152-1222

$8.19

92210

NUT,8MM

92210-1242

$2.00

92210A

NUT,LH,THREAD 8MM

92210-1284

$2.29
