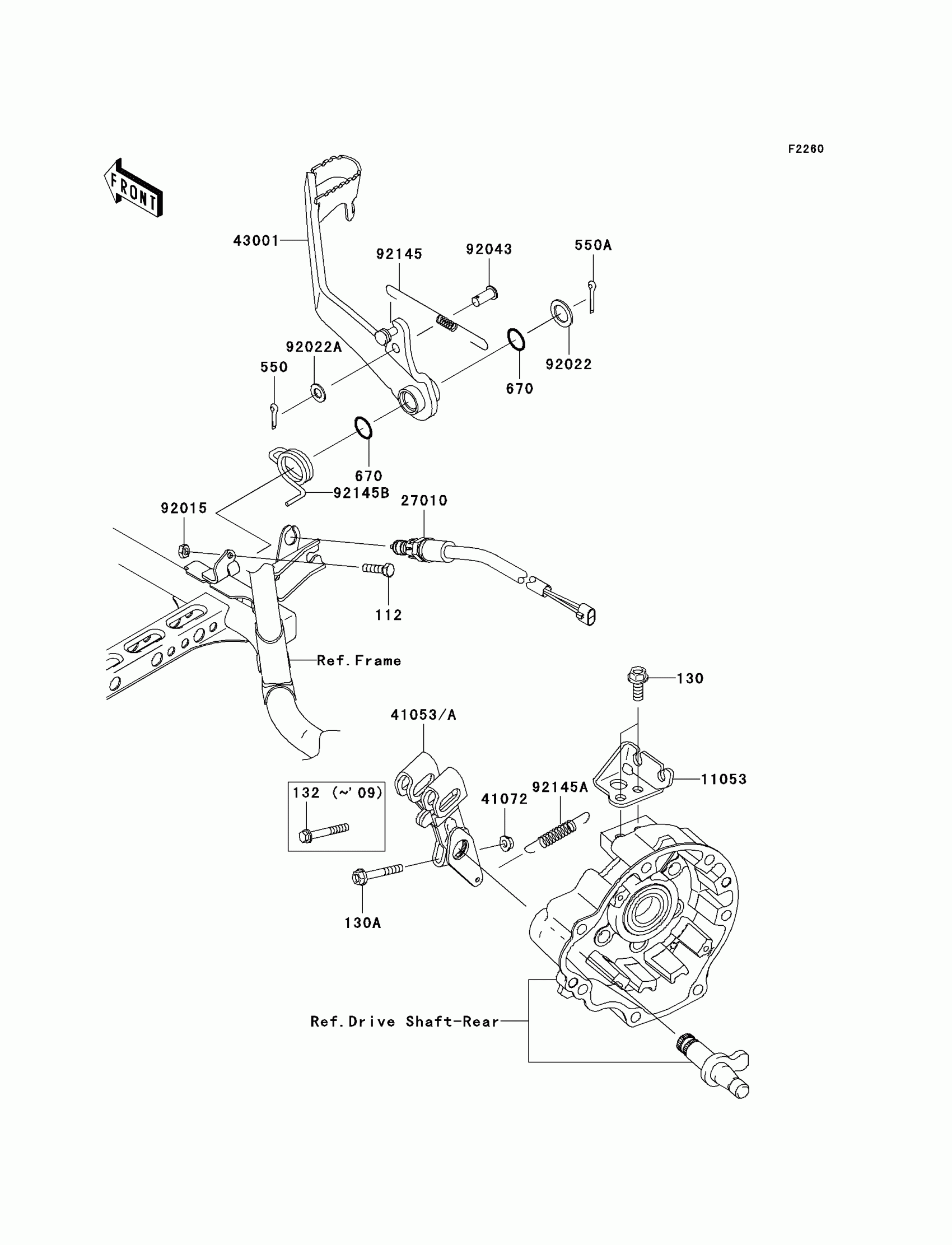

Kawasaki Brute Force 750 4x4i Realtree APG HD Brake Pedal Diagram

Description

Price

112

BOLT-UPSET,6X22

112AA0622

$4.10

130

BOLT-FLANGED,8X20

130BB0820

$0.83

130A

BOLT-FLANGED,6X40

130CA0640

$2.29

550

PIN-COTTER,2.0X15

550AA2015

$0.94

550A

PIN-COTTER,2.0X22

550AA2022

$2.08

670

O RING,15MM

670B2015

$1.25

11053

BRACKET,BRAKE CABLE

11053-0642

$5.51

27010

SWITCH,BRAKE

27010-1494

$51.47

41053A

LEVER-BRAKE CAM

41053-0017

$54.21

41072

NUT,6MM

41072-007

$3.12

43001

LEVER-BRAKE,PEDAL

43001-0092

$65.08

92015

NUT,6MM

92015-1410

$3.53

92022

WASHER,15.5X24X1.6

92022-1049

$5.71

92022A

WASHER,8.5X16X1.2

92022-1582

$0.84

92043

PIN,8X16

92043-1013

Unavailable

92145

SPRING,REAR BRAKE SWITCH

92145-0144

$3.49

92145A

SPRING,BRAKE LEVER RETURN

92145-1313

$3.94

92145B

SPRING,BRAKE PEDAL RETURN

92145-1421

$4.78
