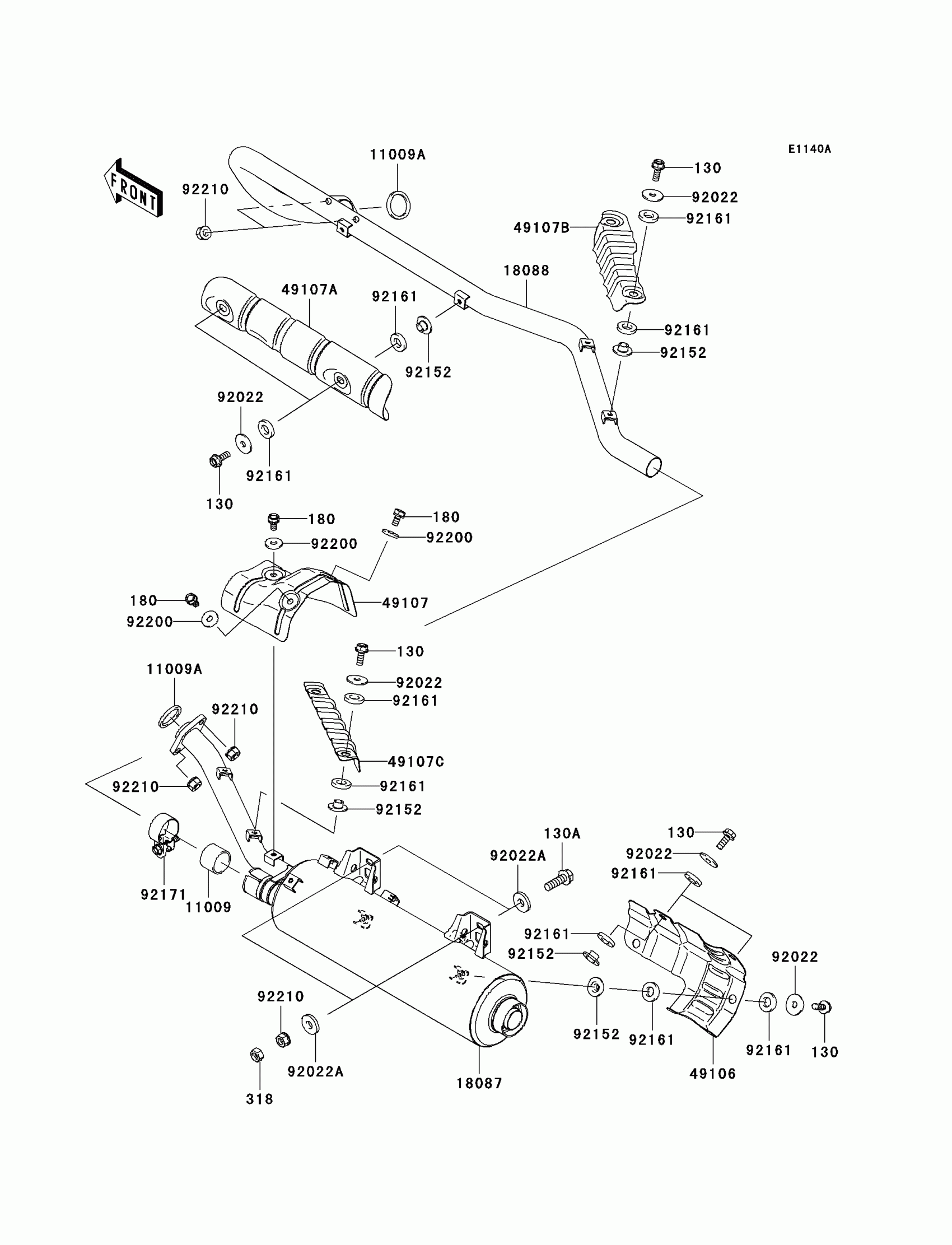

Kawasaki Brute Force 750 4x4i Muffler(s)(JKAVFDB1 6B503807-) Diagram

Description

Price

130

BOLT-FLANGED,6X16

130Y0616

Unavailable

130A

BOLT-FLANGED,8X25

130Z0825

Unavailable

180

BOLT-UPSET-WS,6X12

180Y0612

$1.86

318

NUT-HEX-SMALL,8MM

318G0800

Unavailable

11009

GASKET,MUFFLER CONNECTING

11009-1865

Unavailable

11009A

GASKET,EXHAUST HOLDER

11009-1894

$6.39

18087

MUFFLER

18087-0098

$301.86

18088

PIPE-EXHAUST

18088-0146

Unavailable

49106

COVER-MUFFLER

49106-0048

$19.41

49107

COVER-EXHAUST PIPE,RR

49107-0050

Unavailable

49107A

COVER-EXHAUST PIPE,FR

49107-0065

$24.24

49107B

COVER-EXHAUST PIPE,MIDDLE LH

49107-0066

$14.93

49107C

COVER-EXHAUST PIPE,MIDDLE RH

49107-0067

$14.93

92022

WASHER,6.5X22X1.6

92022-237

$3.12

92022A

WASHER,8.5X22X3.2

92022-276

$7.91

92152

COLLAR

92152-0423

$3.11

92161

DAMPER

92161-0319

$3.11

92171

CLAMP

92171-1330

$20.72

92200

WASHER,6.5X18X2.0

92200-2035

$0.49

92210

NUT,8MM

92210-1242

$2.00
