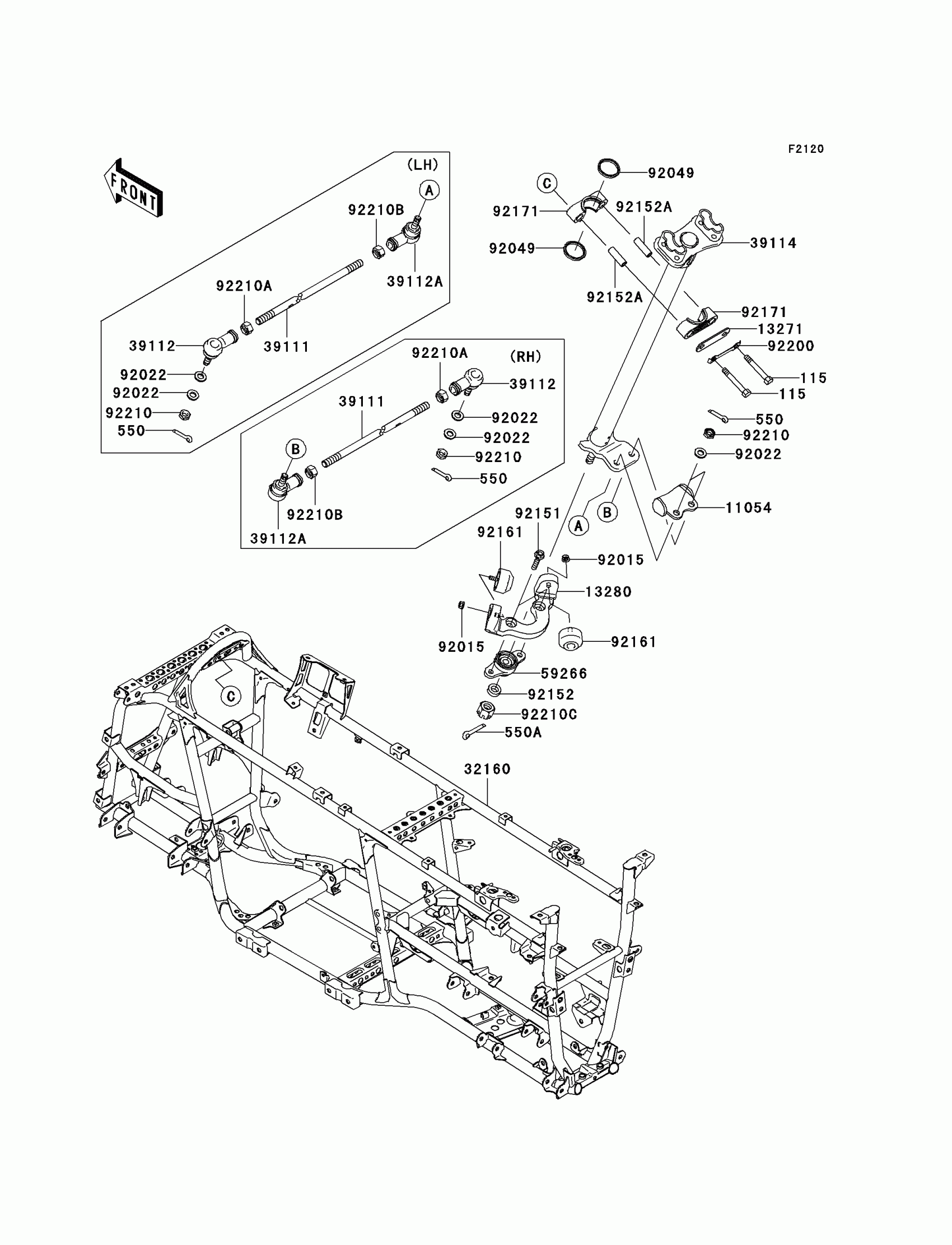

Kawasaki Brute Force 750 4x4i Hardwoods Green HD Frame Diagram

Description

Price

115

BOLT-SMALL-UPSET,8X55

115S0855

Unavailable

550

PIN COTTER 2.0X15

550D2015

Unavailable

550A

PIN-COTTER,3.0X25

550D3025

Unavailable

11054

BRACKET,STEERING SHAFT

11054-0589

$36.23

13271

PLATE,STEERING,CLAMP

13271-7506

$1.66

13280

HOLDER,STEERING SHAFT

13280-0200

$61.29

32160

FRAME-COMP

32160-0135

Unavailable

39111

ROD-TIE

39111-0023

$14.20

39112

RODEND-TIE,RIGHT HANDED

39112-0009

$36.07

39112A

RODEND-TIE,LEFT HANDED

39112-0010

$36.07

39114

SHAFT-COMP-STRG

39114-0006

$234.66

59266

JOINT-BALL

59266-0016

$149.55

92015

NUT,LOCK,FLANGED,6MM

92015-1603

$3.72

92022

WASHER,10.2X20X1.5

92022-3742

$3.33

92049

SEAL-OIL,SR31.8X37.5X3.8LR

92049-7501

$3.97

92151

BOLT,8X35

92151-3763

$2.42

92152

COLLAR,12X21.3X7

92152-1351

$12.24

92152A

COLLAR,9.1X13.95X42

92152-7501

$6.09

92161

DAMPER

92161-0385

$17.76

92171

CLAMP,STEERING

92171-7501

$6.09

92200

WASHER,STEERING CLAMP

92200-7503

$5.17

92210

NUT,LOCK,10MM

92210-1184

$4.78

92210A

NUT,RIGHT HANDED

92210-1385

$5.39

92210B

NUT,LEFT HANDED

92210-1386

$5.39

92210C

NUT,12MM

92210-7501

$2.96
