2005 Kawasaki Brute Force 750 4x4i Front Brake Diagram

← All diagrams

Find the part on the Front Brake diagram for your 2005 Kawasaki Brute Force 750 4x4i, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

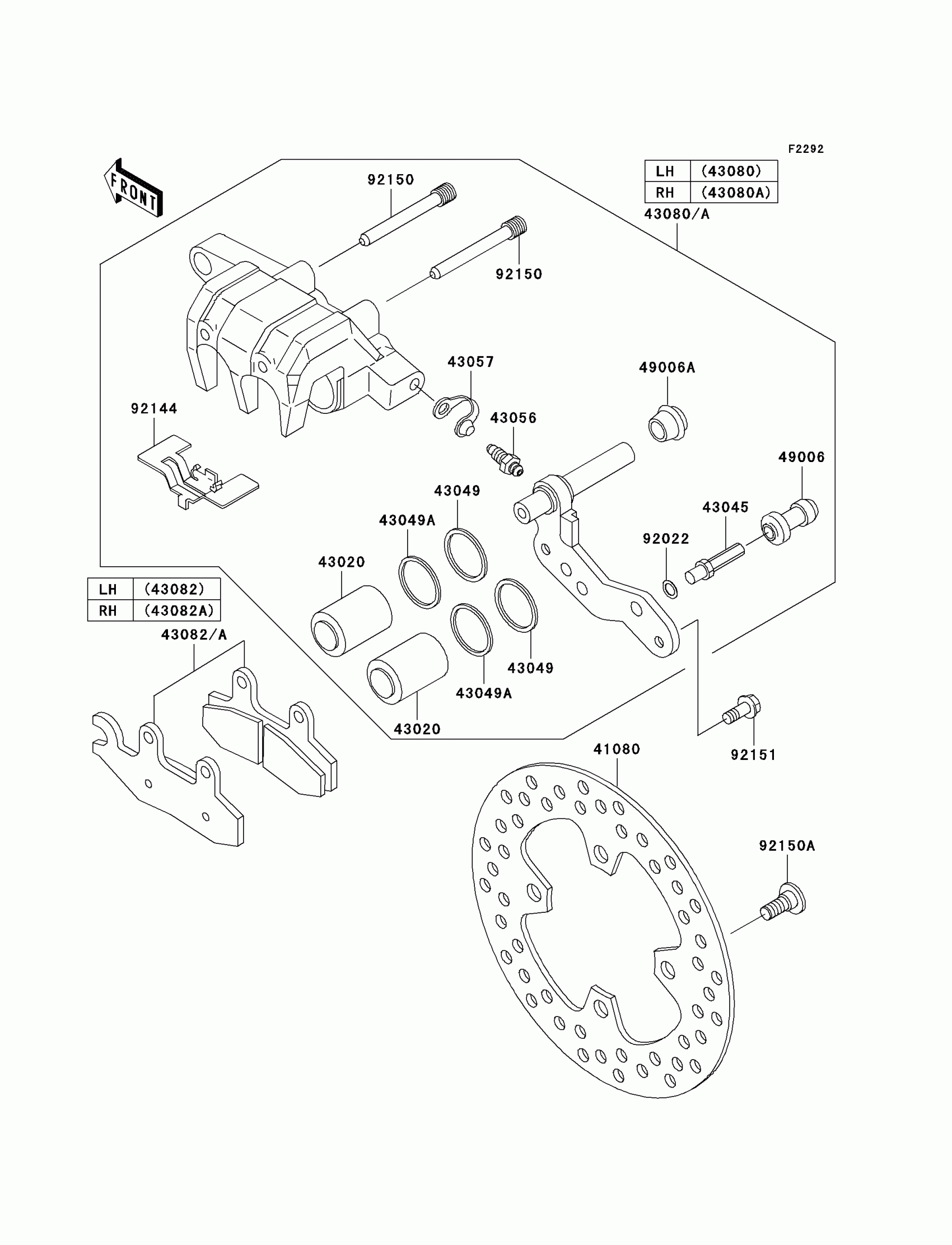

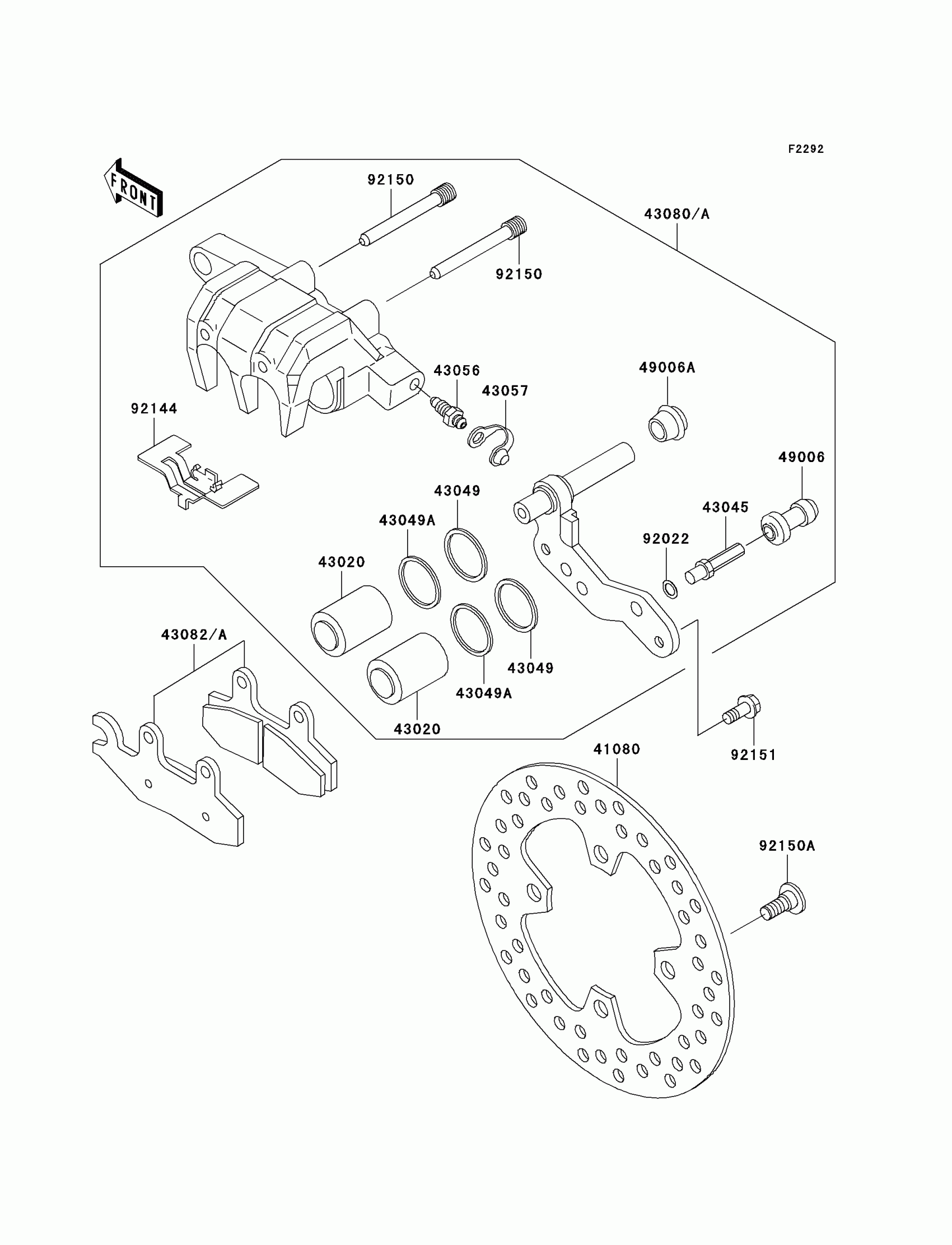

2005 Kawasaki Brute Force 750 4x4i Front Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41080

DISC,FR

41080-1513

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-1101

1
Out of stock

43045

SHAFT-CALIPER

43045-1010

1
Out of stock

43049

PACKING

43049-1063

1
Out of stock

43049A

PACKING

43049-1064

1
Out of stock

43056

BREATHER

43056-1055

1
Out of stock

43057

CAP-BREATHER

43057-1001

1
Out of stock

43080

CALIPER-SUB-ASSY,FR,LH,BLACK

43080-0019-DJ

1
Out of stock

43080A

CALIPER-SUB-ASSY,FR,RH,BLACK

43080-0020-DJ

1
Out of stock

43082

PAD-ASSY-BRAKE,FR,LH

43082-0022

1
Out of stock

43082A

PAD-ASSY-BRAKE,FR,RH

43082-0023

1
Out of stock

49006

BOOT,CALIPER

49006-1088

1
Out of stock

49006A

BOOT,CALIPER

49006-1242

1
Out of stock

92022

WASHER,WAVE

92022-1373

1
Out of stock

92144

SPRING,PAD

92144-1319

1
Out of stock

92150

BOLT

92150-1144

1
Out of stock

92150A

BOLT,SOCKET,8X20

92150-1800

1
Out of stock

92151

BOLT,FLANGED,8X19

92151-1793

1
Out of stock
