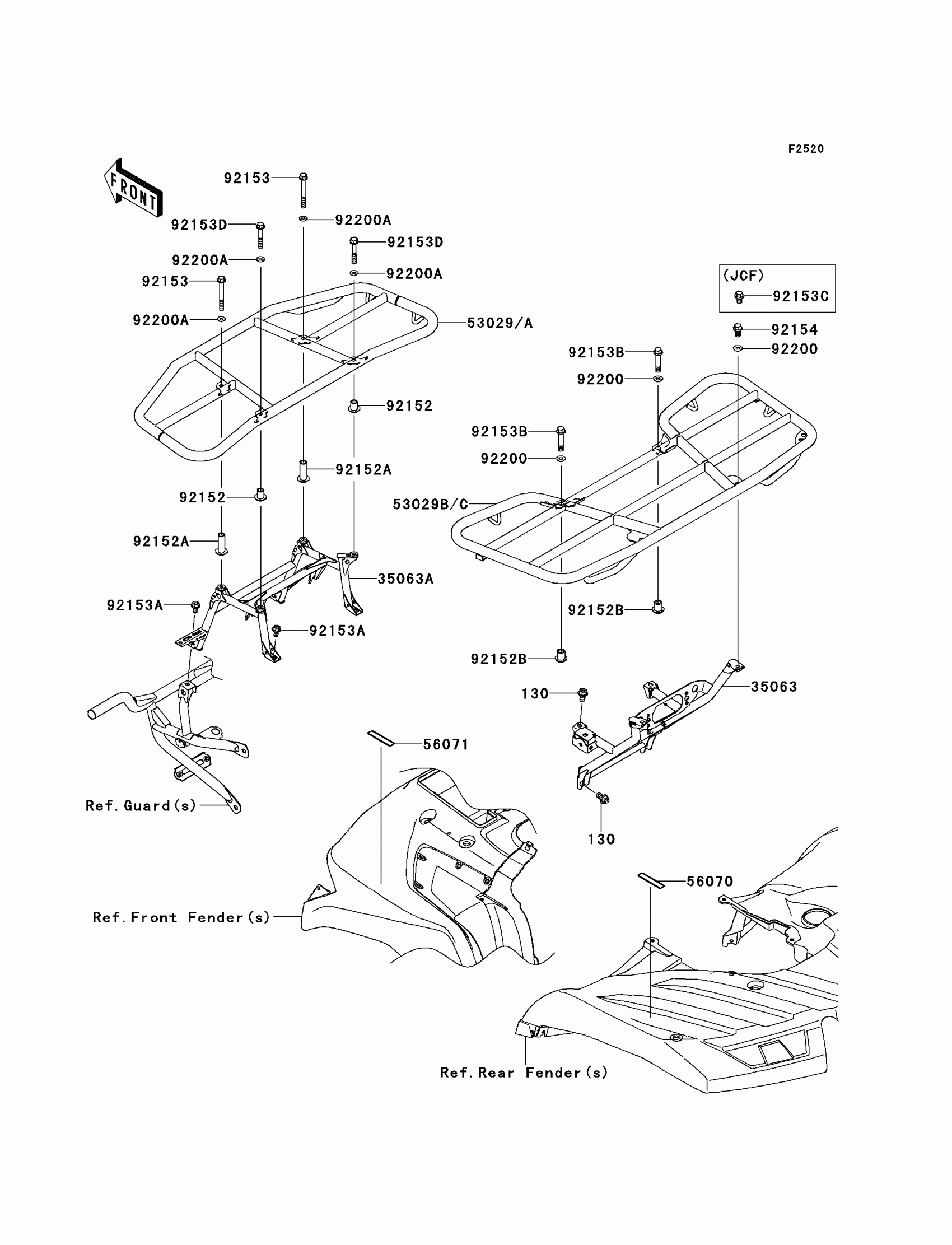

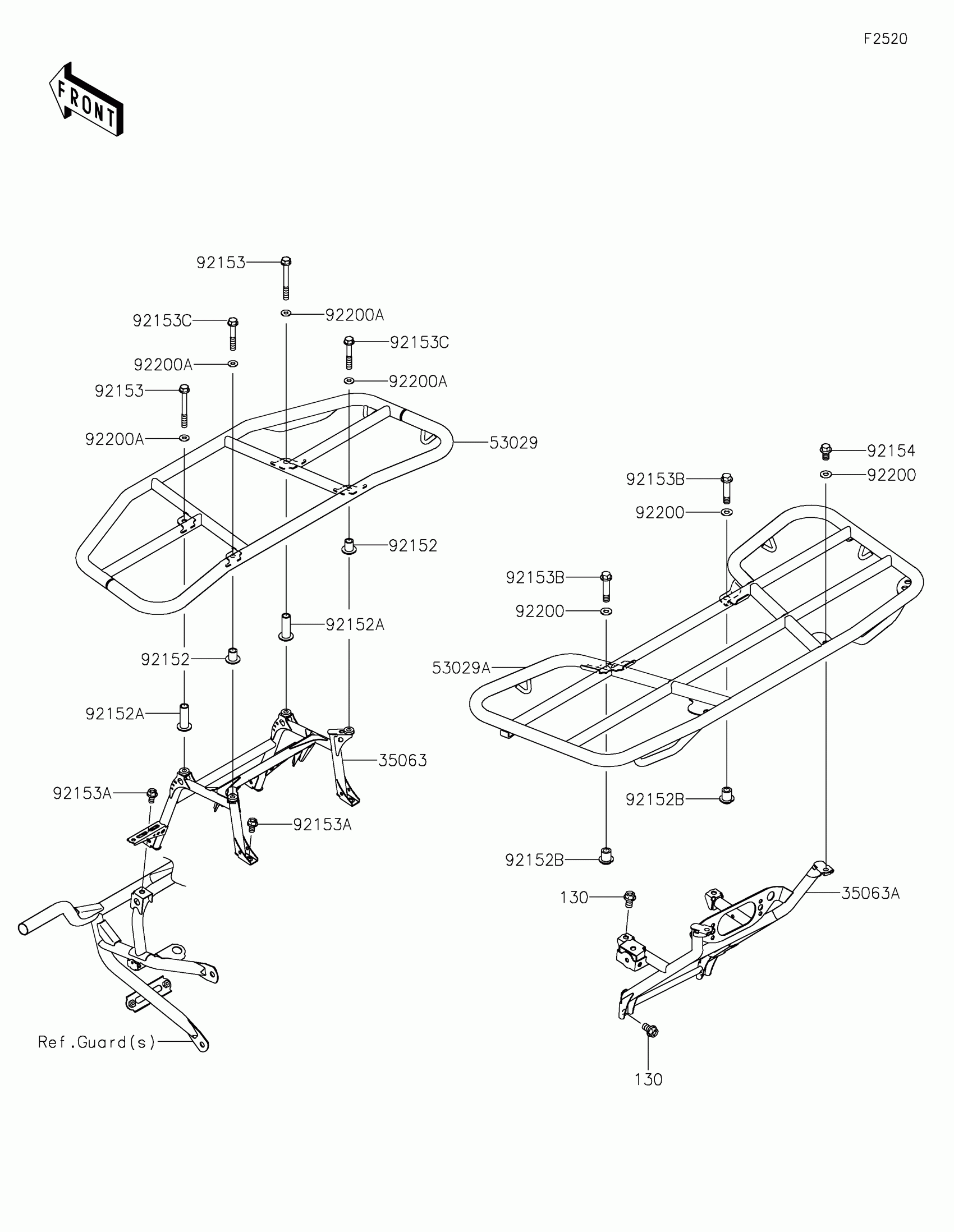

Kawasaki BRUTE FORCE® 750 4x4i EPS Carrier(s) Diagram

Description

Price

130

BOLT-FLANGED,10X16

130CA1016

$2.31

35063

STAY,RR CARRIER,T.BLACK

35063-0809-388

$64.14

35063A

STAY,FR CARRIER

35063-0826

$55.22

53029A

CARRIER,FR,T.M.GRAY

53029-0093-16Y

$202.99

53029C

CARRIER,RR,T.M.GRAY

53029-0094-16Y

$294.69

56070

LABEL-WARNING,MAXIMUM LOAD

56070-0041

$5.10

56071

LABEL-WARNING,MAX LOAD 40KG

56071-0200

$4.95

92152

COLLAR

92152-0823

Unavailable

92152A

COLLAR

92152-0896

$11.31

92152B

COLLAR

92152-0897

$6.52

92153

BOLT,FLANGED,8X70

92153-0748

$2.98

92153A

BOLT,FLANGED,8X14

92153-0931

$2.09

92153B

BOLT,FLANGED,10X44

92153-1374

$3.54

92153D

BOLT,FLANGED,8X50

92153-1755

$5.86

92154

BOLT,FLANGED,10X16

92154-0916

$4.04

92200

WASHER,10.3X23X1.6

92200-0724

$2.84

92200A

WASHER,8.5X20X1.6

92200-0774

$2.31
