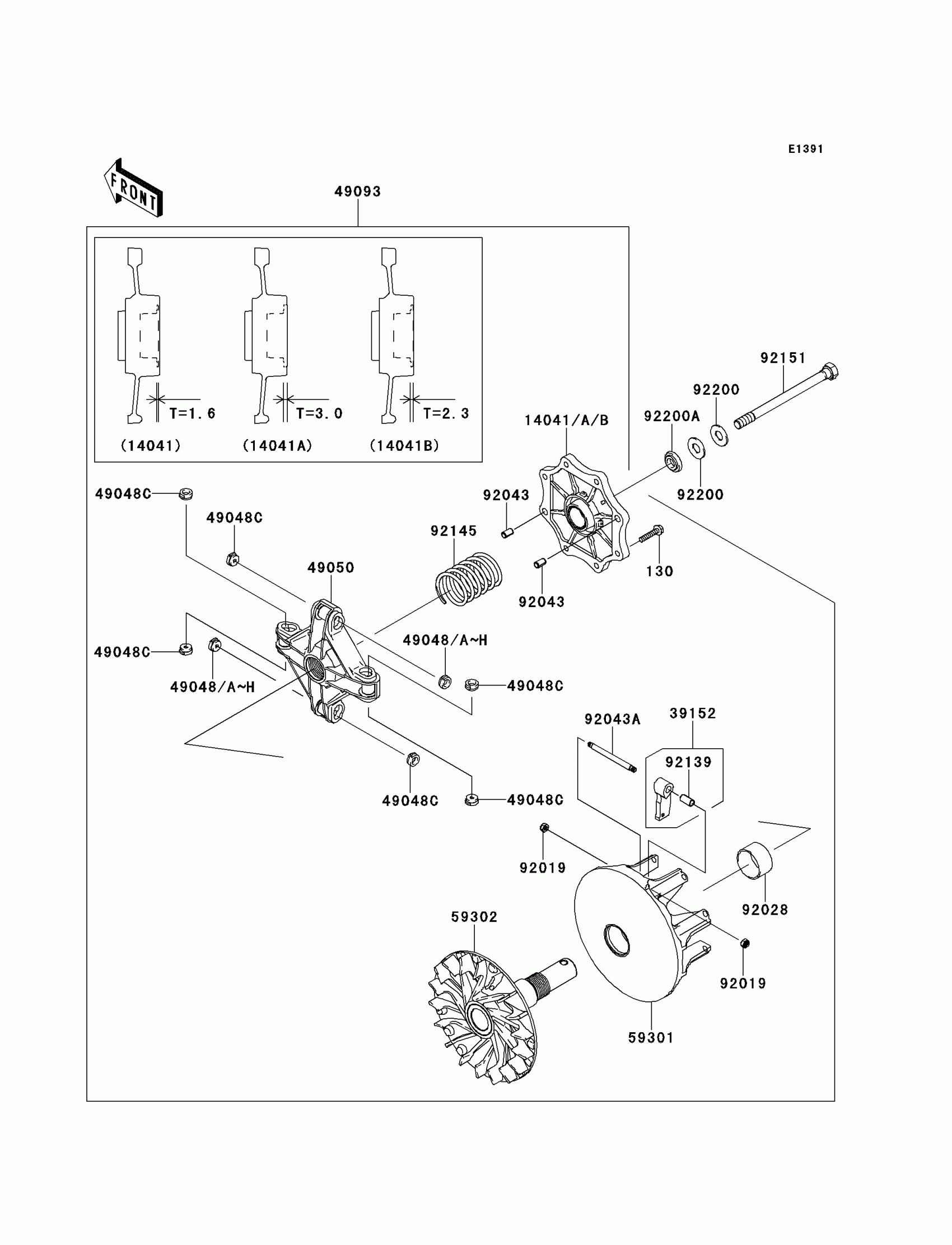

Kawasaki BRUTE FORCE® 750 4x4i Drive Converter(-VF750DE082073) Diagram

Description

Price

14041

COVER-COMP,RED

14041-0035

$119.10

14041A

COVER-COMP,BLUE

14041-0036

$119.10

14041B

COVER-COMP,STD

14041-0037

$119.10

39152

WEIGHT-RAMP

39152-0034

$56.68

49048

SHOE,T=7.2

49048-1087

$11.66

49048A

SHOE,T=7.3

49048-1088

$11.42

49048B

SHOE,T=7.4

49048-1089

$11.66

49048C

SHOE,T=7.5

49048-1090

$11.66

49048D

SHOE,T=7.6

49048-1091

$11.66

49048E

SHOE,T=7.7

49048-1092

$11.66

49048F

SHOE,T=7.8

49048-1093

$13.78

49048G

SHOE,T=7.9

49048-1094

$13.78

49048H

SHOE,T=8.0

49048-1095

$11.66

49050

SPIDER

49050-0010

$142.93

49093

CONVERTER-ASSY-DRIVE

49093-0040

$1,028.85

59301

SHEAVE-MOVABLE

59301-0007

$240.16

59302

SHEAVE-COMP,FIXED

59302-0078

$344.81

92019

NUT,LOCK,6MM

92019-008

$3.36

92028

BUSHING

92028-1975

$10.14

92043

PIN,6.2X8X14

92043-1263

$0.49

92043A

92043-1688

$10.77

92139

BUSHING

92139-0215

$8.10

92145

SPRING

92145-0794

$23.44

92151

BOLT,12X165

92151-1393

$22.45

92200

WASHER,SPRING

92200-1504

$3.33

92200A

WASHER

92200-1634

$7.20

130

BOLT-FLANGED,6X30

130CA0630

$2.05
