Description

Price

130

BOLT-FLANGED,8X12

130BA0812

$0.92

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$1.12

481

CIRCLIP-TYPE-C,24MM

481J2400

$2.58

481A

CIRCLIP-TYPE-C,52MM

481J5200

$3.92

11053

BRACKET,STABILIZER

11053-1833

Unavailable

13272

PLATE,RR ARM

13272-0919

$2.03

39007

ARM-SUSP,RR,UPP,LH

39007-0170

$85.04

39007A

ARM-SUSP,RR,UPP,RH

39007-0171

$85.04

39007B

ARM-SUSP,RR,LWR,LH

39007-0337

$89.09

39007C

ARM-SUSP,RR,LWR,RH

39007-0338

$89.09

39186

KNUCKLE,RR

39186-0099

$202.97

42036

SLEEVE,10X17X85.6

42036-1190

$26.83

42036A

SLEEVE

42036-1376

$11.64

46102

ROD,STABILIZER,LH

46102-0100

$44.03

46102A

ROD,STABILIZER,RH

46102-0101

$44.03

55020

GUARD,REAR ARM,LH,F.BLACK

55020-0166-6Z

Unavailable

55020A

GUARD,REAR ARM,RH,F.BLACK

55020-0167-6Z

Unavailable

59266

JOINT-BALL

59266-0013

$60.17

59437

STABILIZER

59437-0001

$110.38

92009

SCREW,6X12

92009-1480

$2.59

92022

WASHER PLAIN

92022-024

$2.92

92028

BUSHING

92028-1466

$8.16

92045

BEARING-BALL,DAC2552W-7CS31

92045-0102

Unavailable

92046

BEARING-NEEDLE

92046-1046

$24.62

92049

SEAL-OIL,KNUCKLE

92049-1198

$18.30

92049A

SEAL-OIL,MHA17245.7F

92049-1223

$7.04

92092

BUSHING-RUBBER

92092-0004

$6.58

92150

BOLT,FLANGED,10X105

92150-1624

$7.86

92152

COLLAR,10X17X14.5

92152-1455

$7.20

92153

BOLT,FLANGED,10X70

92153-0666

$3.81

92161

DAMPER

92161-0265

$4.46

92210

NUT,LOCK,FLANGED,10MM

92210-0276

$2.15

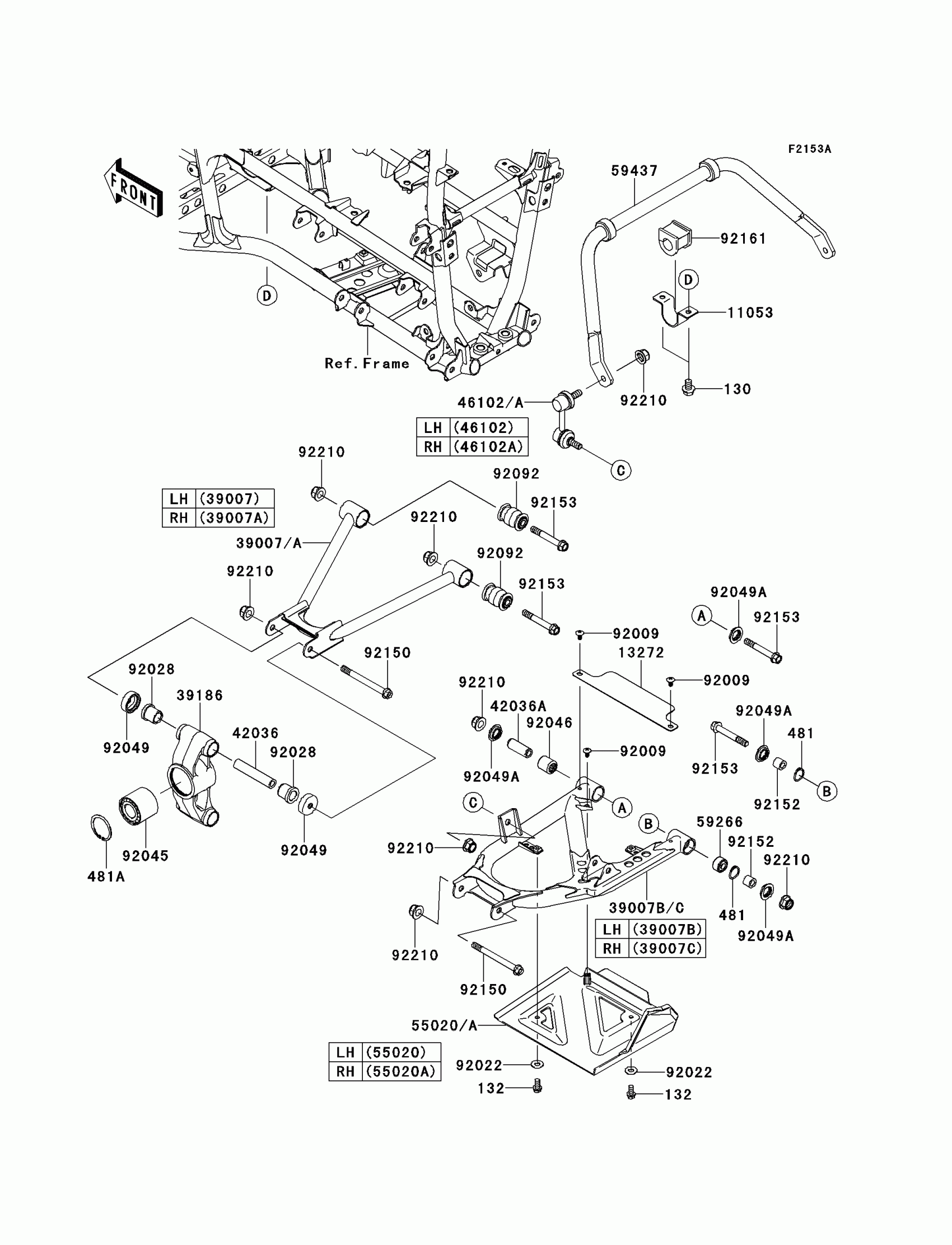

Kawasaki BRUTE FORCE® 650 4x4i Rear Suspension(FCF-FDF) Diagram

BRACKET,STABILIZER

GUARD,REAR ARM,LH,F.BLACK

GUARD,REAR ARM,RH,F.BLACK

BEARING-BALL,DAC2552W-7CS31
