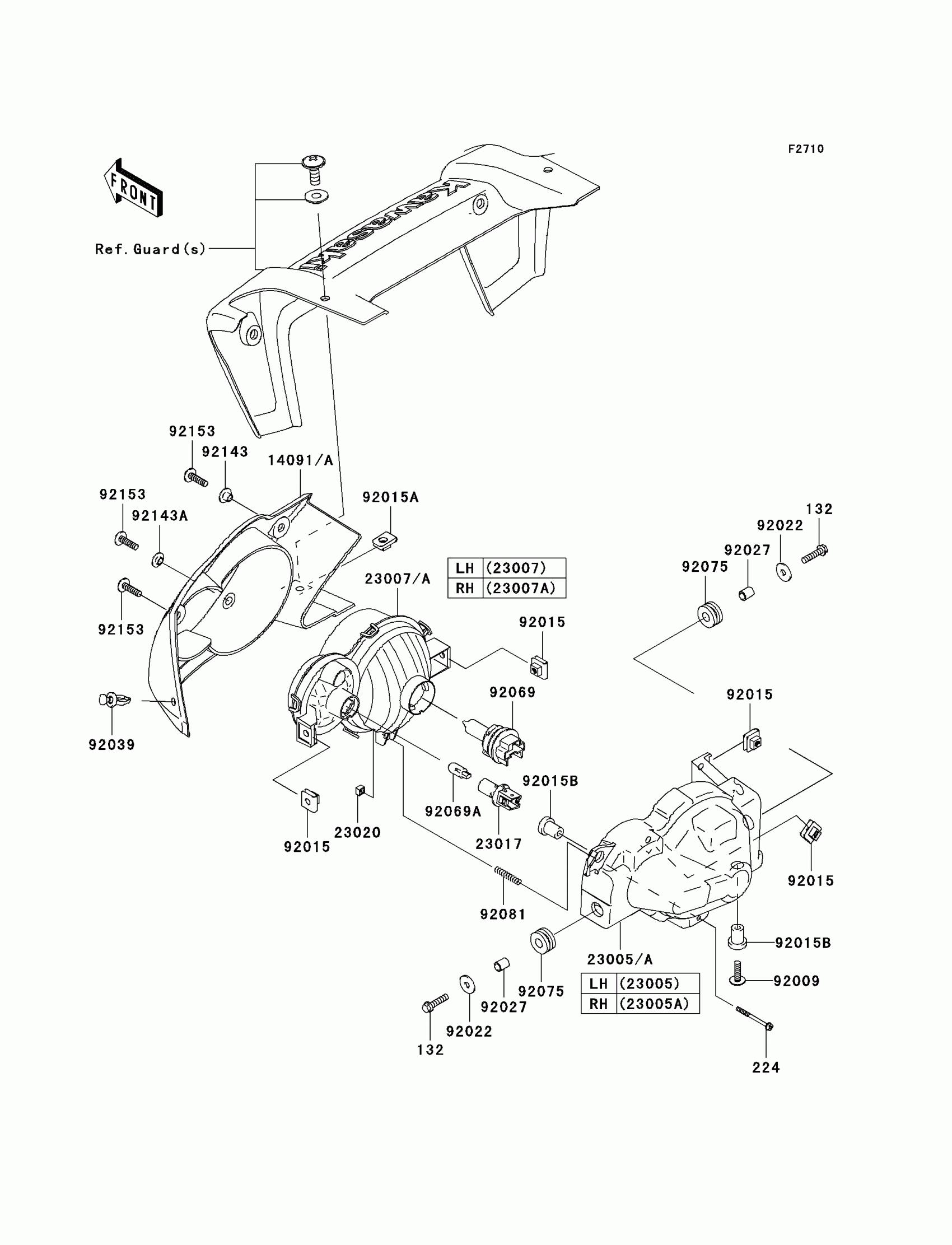

Kawasaki Brute Force 650 4x4i Hardwoods Green HD Headlight(s)(G6F-G9F) Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X25

132BA0625

$2.29

224

SCREW-PAN-WP-CROS,4X45

224AA0445

$1.54

14091

COVER,HEAD LAMP,LH,F.BLACK

14091-0132-6Z

$17.02

14091A

COVER,HEAD LAMP,RH,F.BLACK

14091-0133-6Z

$17.02

23005

BODY-COMP-HEAD LAMP,LH

23005-0006

$31.74

23005A

BODY-COMP-HEAD LAMP,RH

23005-0007

$31.74

23007

LENS-COMP,HEAD LAMP,LH

23007-0024

$97.12

23007A

LENS-COMP,HEAD LAMP,RH

23007-0025

$97.12

23017

SOCKET,HEAD LAMP

23017-0001

$33.67

23020

NUT,4MM,FOCUS ADJUST

23020-018

$3.69

92009

SCREW

92009-1664

$3.57

92015

NUT,6MM

92015-1094

$6.82

92015A

NUT,6MM

92015-1602

$5.84

92015B

NUT,RUBBER,6MM

92015-1692

$5.84

92022

WASHER,6.5X20X1.6

92022-125

$1.25

92027

COLLAR,6.8X10X12

92027-162

$5.21

92039

RIVET

92039-1229

$0.80

92069

BULB,12V 40/40W

92069-0005

$30.97

92069A

BULB,12V 5W

92069-0006

$7.49

92075

DAMPER,10X24X12

92075-1690

$3.97

92081

SPRING,FOCUS ADJUST

92081-1896

$4.16

92143

COLLAR

92143-1057

$3.97

92143A

COLLAR

92143-1087

$3.11

92153

BOLT,SOCKET,6X22

92153-0574

$2.15
