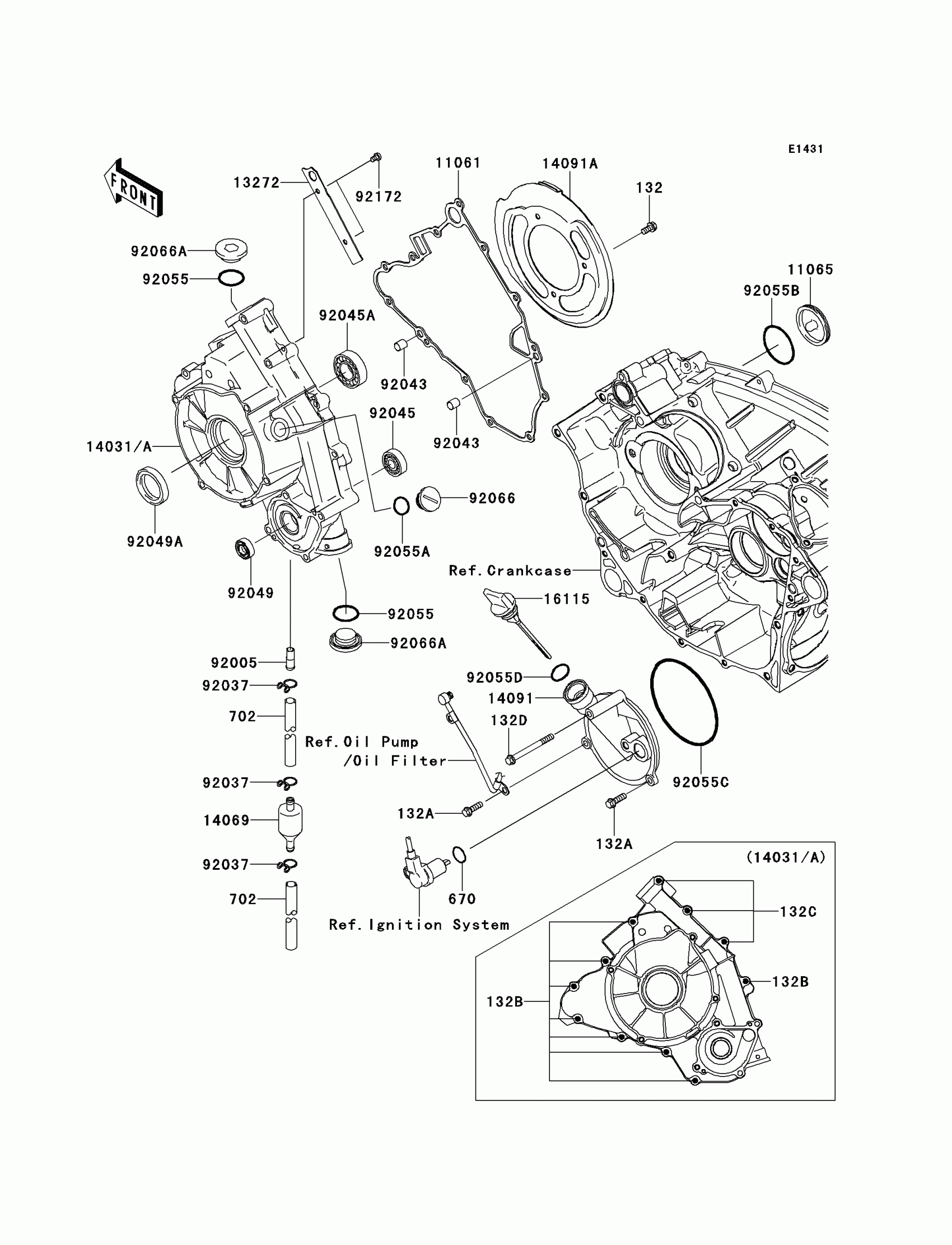

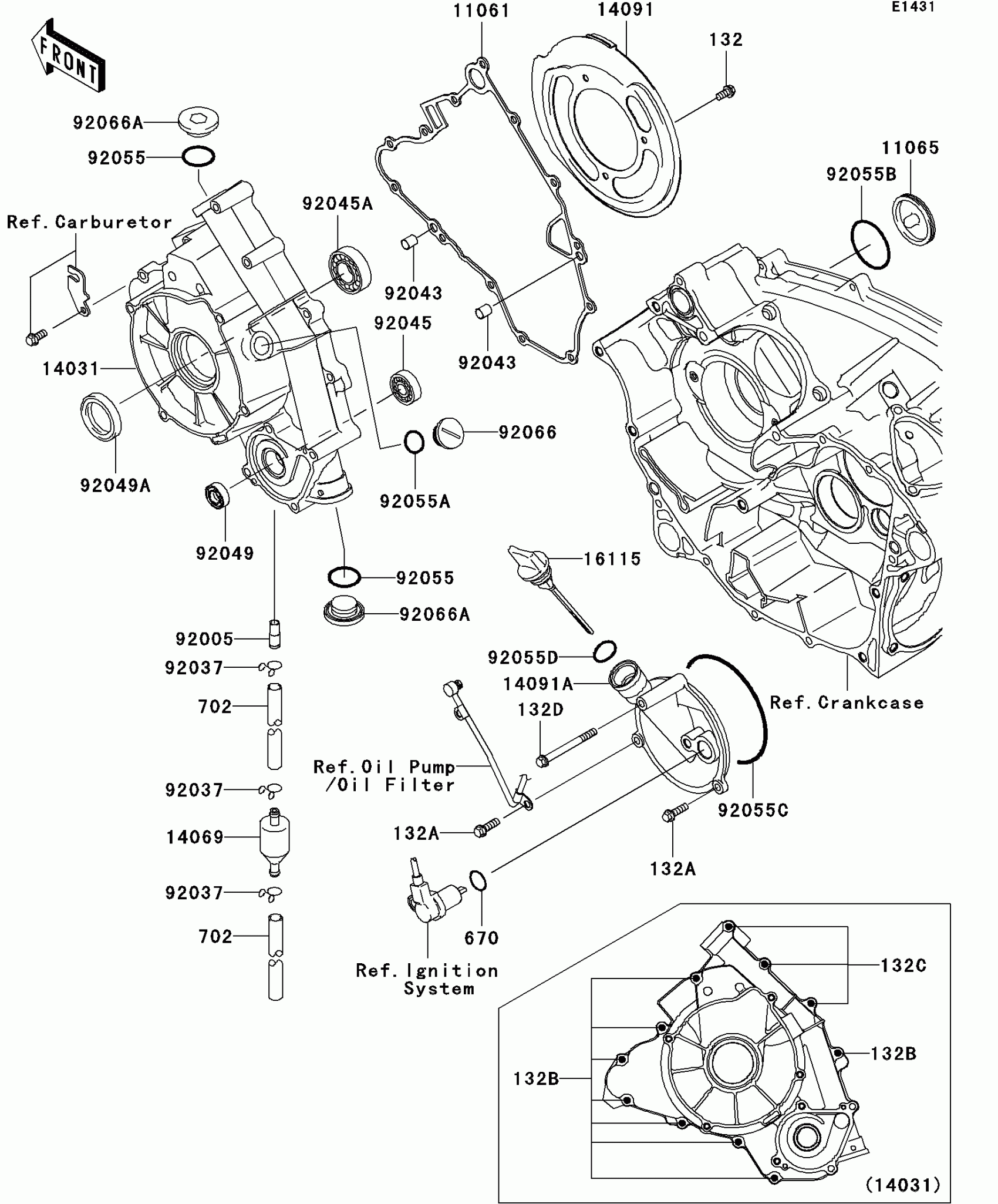

Kawasaki Brute Force® 650 4x4i Engine Cover(s) Diagram

Description

Price

11061

GASKET

11061-1119

$19.59

11065

CAP

11065-1151

$12.86

132

BOLT-FLANGED-SMALL,6X12

132Y0612

Unavailable

132A

BOLT-FLANGED-SMALL,6X20

132Y0620

Unavailable

132B

BOLT-FLANGED-SMALL,6X30

132Y0630

Unavailable

132C

BOLT-FLANGED-SMALL,6X55

132Y0655

Unavailable

132D

BOLT-FLANGED-SMALL

132Y0665

Unavailable

14031

COVER-GENERATOR

14031-0030

Unavailable

14069

BREATHER

14069-1051

$8.09

14091

COVER,BELT CONVERTER

14091-0309

Unavailable

14091A

COVER

14091-1365

$75.02

16115

CAP-OIL FILLER

16115-1072

$11.76

670

O RING,18MM

670D2018

$1.61

702

TUBE-RUBBER,7X10X35

702A07035

$2.71

92005

FITTING

92005-1369

$7.44

92037

CLAMP,TUBE

92037-147

$5.84

92043

PIN,6.2X8X14

92043-1263

$0.49

92045

BEARING-BALL,6901

92045-1246

$26.96

92045A

BEARING-BALL

92045-1403

$21.24

92049

SEAL-OIL,SC 12X22X5

92049-1228

$7.38

92049A

SEAL-OIL,HTC 28X45X7

92049-1576

$11.64

92055

RING-O,25.7X2.4

92055-1136

$3.97

92055A

RING-O,20X2

92055-1146

$6.82

92055B

RING-O,44.7X2.4

92055-1279

$5.84

92055C

RING-O,99.5X2.0

92055-1632

$8.85

92055D

RING-O,20X3

92055-2185

$0.97

92066

PLUG,COVER

92066-0011

$12.60

92066A

PLUG,25X8

92066-0012

$9.28
