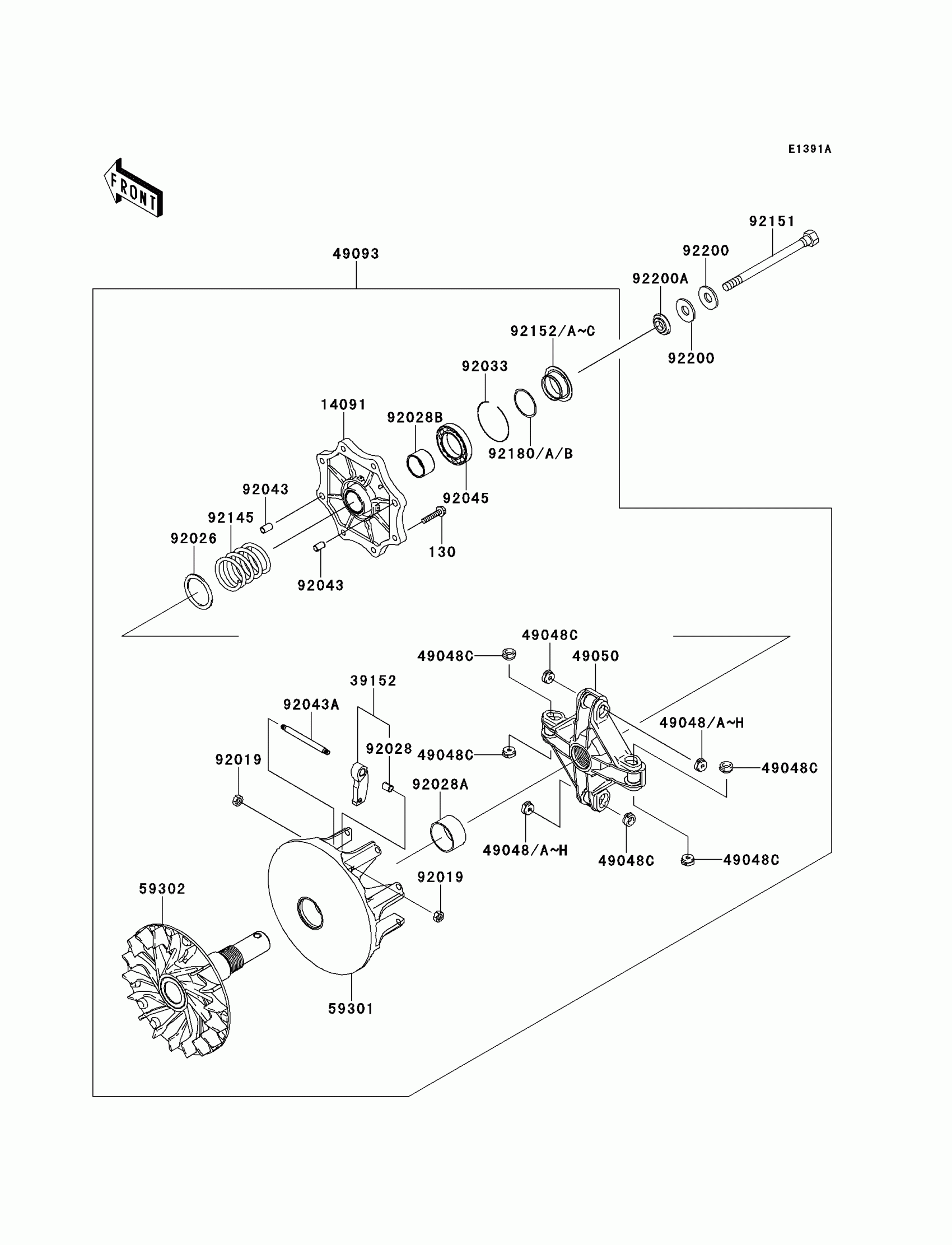

Kawasaki BRUTE FORCE® 650 4x4i Drive Converter(VF650AE000351-) Diagram

Description

Price

130

BOLT-FLANGED,6X30

130CA0630

$2.05

14091

COVER

14091-1804

$55.16

39152

WEIGHT-RAMP

39152-1081

$57.88

49048

SHOE,T=7.2

49048-1087

$11.66

49048A

SHOE,T=7.3

49048-1088

$11.42

49048B

SHOE,T=7.4

49048-1089

$11.66

49048C

SHOE,T=7.5

49048-1090

$11.66

49048D

SHOE,T=7.6

49048-1091

$11.66

49048E

SHOE,T=7.7

49048-1092

$11.66

49048F

SHOE,T=7.8

49048-1093

$13.78

49048G

SHOE,T=7.9

49048-1094

$13.78

49048H

SHOE,T=8.0

49048-1095

$11.66

49050

SPIDER

49050-0010

$142.93

49093

CONVERTER-ASSY-DRIVE

49093-0064

$1,054.67

59301

SHEAVE-MOVABLE

59301-1070

$251.05

59302

SHEAVE-COMP,FIXED

59302-0078

$344.81

92019

NUT,LOCK,6MM

92019-008

$3.36

92026

SPACER,39X49.5X1.0

92026-1603

$6.07

92028

BUSHING

92028-1973

$3.82

92028A

BUSHING

92028-1975

$10.14

92028B

BUSHING

92028-1980

$6.29

92033

RING-SNAP

92033-0063

$2.66

92043

PIN,6.2X8X14

92043-1263

$0.49

92043A

92043-1688

$10.77

92045

BEARING-BALL,6907DDG8C4 S6NS

92045-1453

$34.29

92145

SPRING

92145-1465

$25.10

92151

BOLT,12X165

92151-1393

$22.45

92152

COLLAR,T=1.6

92152-1436

$23.37

92152A

COLLAR,T=3.0

92152-1437

$29.52

92152B

COLLAR,T=2.3

92152-1438

$25.81

92152C

COLLAR,T=3.7

92152-1440

$30.42

92180

SHIM,35X40X0.10

92180-1378

$1.44

92180A

SHIM,35X40X0.20

92180-1379

$1.44

92180B

SHIM,35X40X0.30

92180-1380

$1.44

92200

WASHER,SPRING

92200-1504

$3.33

92200A

WASHER

92200-1634

$7.20
