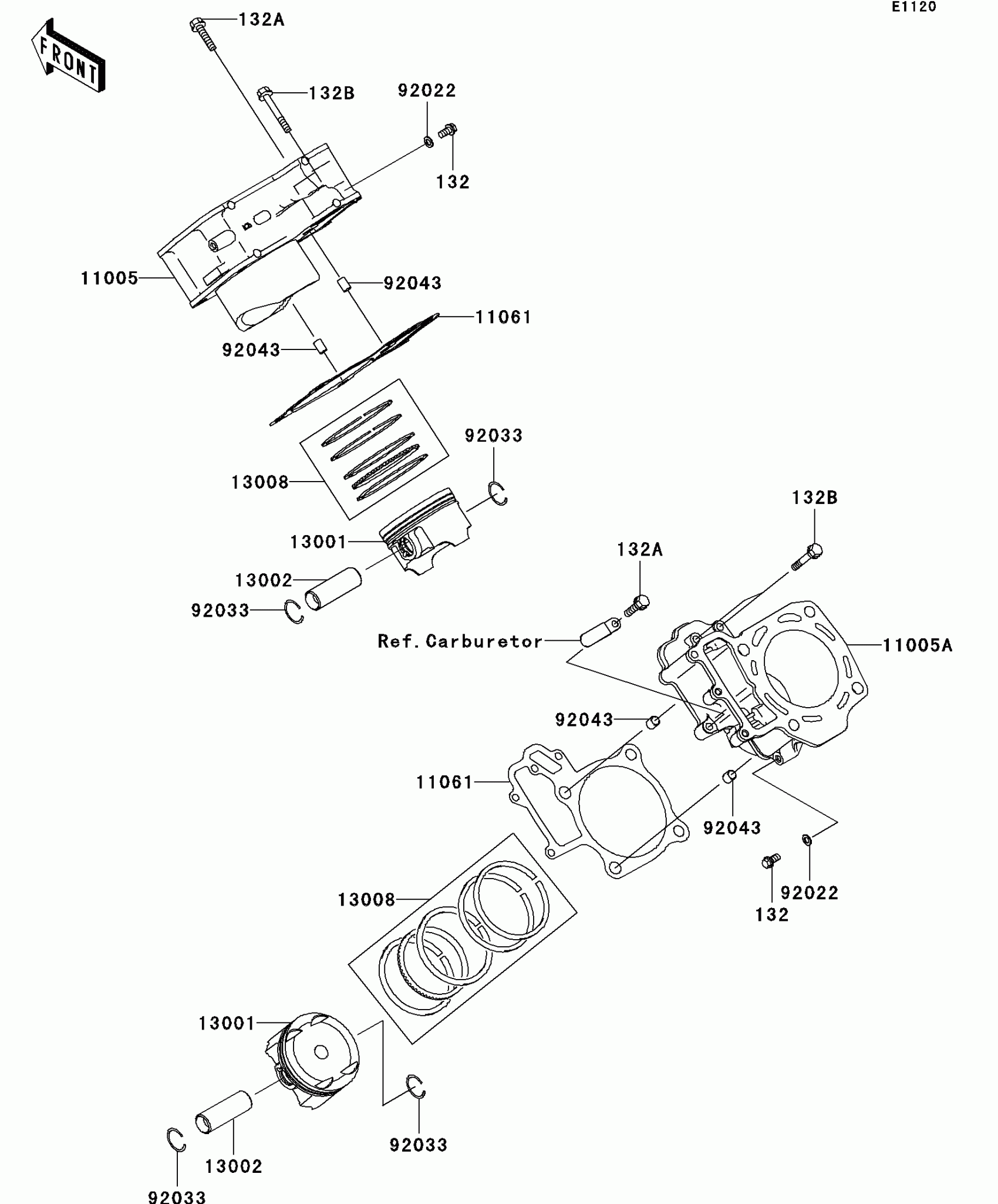

Kawasaki Brute Force® 650 4x4i Cylinder/Piston(s) Diagram

Description

Price

11005

CYLINDER-ENGINE,FR

11005-0059

$615.96

11005A

CYLINDER-ENGINE,RR

11005-0060

$615.96

11061

GASKET,CYLINDER BASE

11061-0063

$14.67

13001

PISTON-ENGINE

13001-1574

$109.28

13002

PIN-PISTON

13002-1060

$17.96

13008

RING-SET-PISTON

13008-1198

$61.17

132

BOLT-FLANGED-SMALL,6X12

132Y0612

Unavailable

132A

BOLT-FLANGED-SMALL,6X30

132Y0630

Unavailable

132B

BOLT-FLANGED-SMALL,6X40

132Y0640

Unavailable

92022

WASHER,6.2X11X1

92022-304

$2.76

92033

RING-SNAP

92033-1207

$1.65

92043

PIN,10.1X12X14

92043-4009

$4.67
