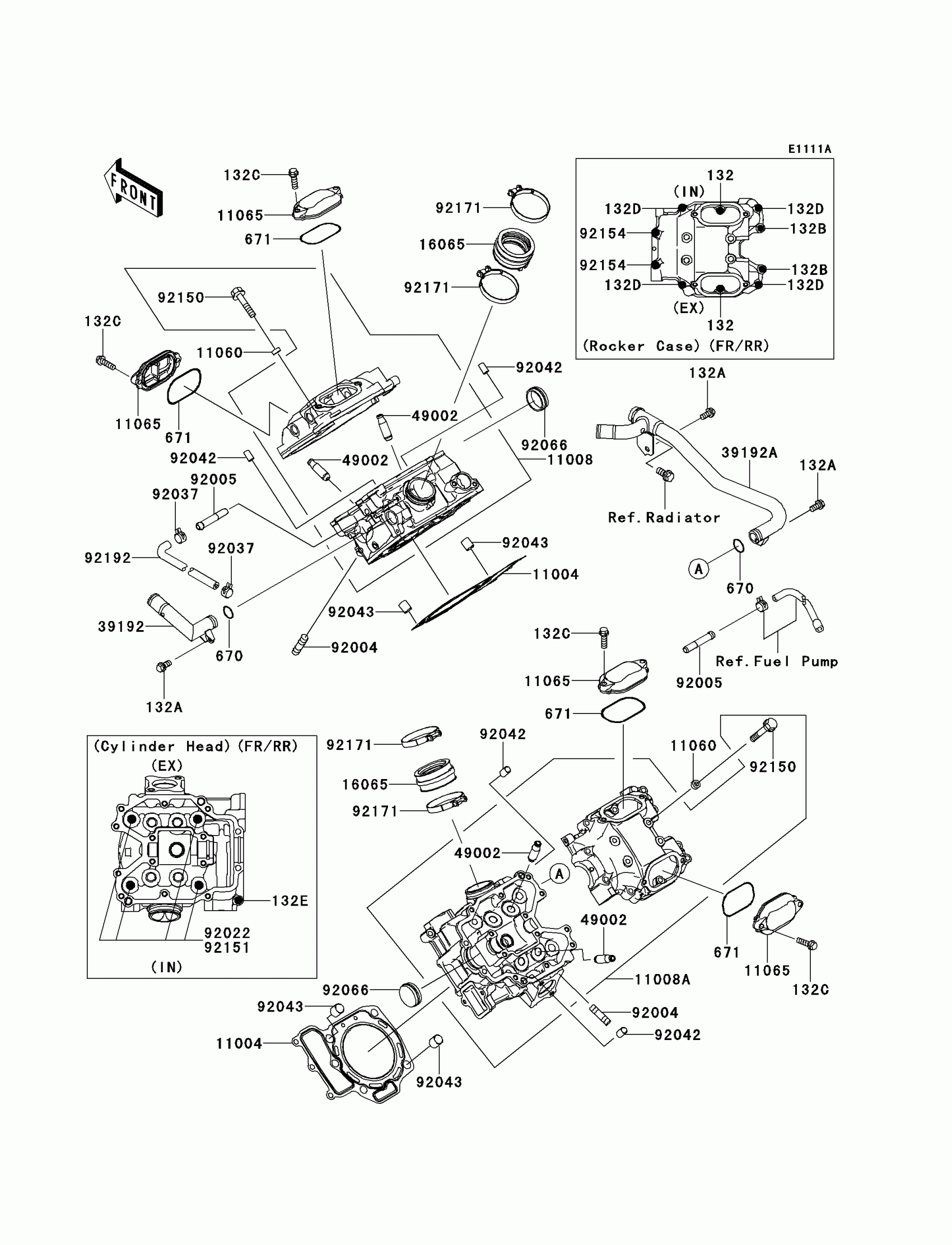

Kawasaki BRUTE FORCE® 650 4x4i Cylinder Head(FDF) Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X25

132BA0625

$2.29

132A

BOLT-FLANGED-SMALL,6X12

132BD0612

$1.73

132B

BOLT-FLANGED-SMALL,6X20

132BD0620

$3.28

132C

BOLT-FLANGED-SMALL,6X25

132BD0625

$4.28

132D

BOLT-FLANGED-SMALL,6X30

132BD0630

$2.92

132E

BOLT-FLANGED-SMALL,6X95

132BD0695

$5.69

670

O RING,16MM

670B2016

$1.20

671

O RING,55MM

671D2555

$2.92

11004

GASKET-HEAD

11004-0047

$31.69

11008

HEAD-COMP-CYLINDER,FR

11008-0766

$1,026.17

11008A

HEAD-COMP-CYLINDER,RR

11008-0767

$1,026.17

11060

GASKET,6.2X12X0.3

11060-1994

$1.98

11065

CAP,ROCKER CASE

11065-0724

$11.23

16065

HOLDER-CARBURETOR

16065-0116

$12.13

39192

PIPE-WATER,FR

39192-0033

$36.81

39192A

PIPE-WATER,RR

39192-0034

$88.66

49002

GUIDE-VALVE

49002-0706

$29.42

92004

STUD,8X22

92004-1217

$4.47

92005

FITTING

92005-1264

$7.44

92022

WASHER,11.5X20.5X1.6

92022-1720

$3.43

92037

CLAMP,TUBE

92037-1461

$3.08

92042

PIN,DOWEL,6.3X8X14

92042-007

$4.51

92043

PIN,10.1X12X14

92043-4009

$4.93

92066

PLUG

92066-1289

$11.37

92150

BOLT,6X55

92150-1302

$5.03

92151

BOLT,FLANGED,10X150

92151-1917

$18.62

92154

BOLT,FLANGED,6X130

92154-0993

$3.93

92171

CLAMP

92171-0722

$12.02

92192

TUBE,4X9X860

92192-0089

$5.32
