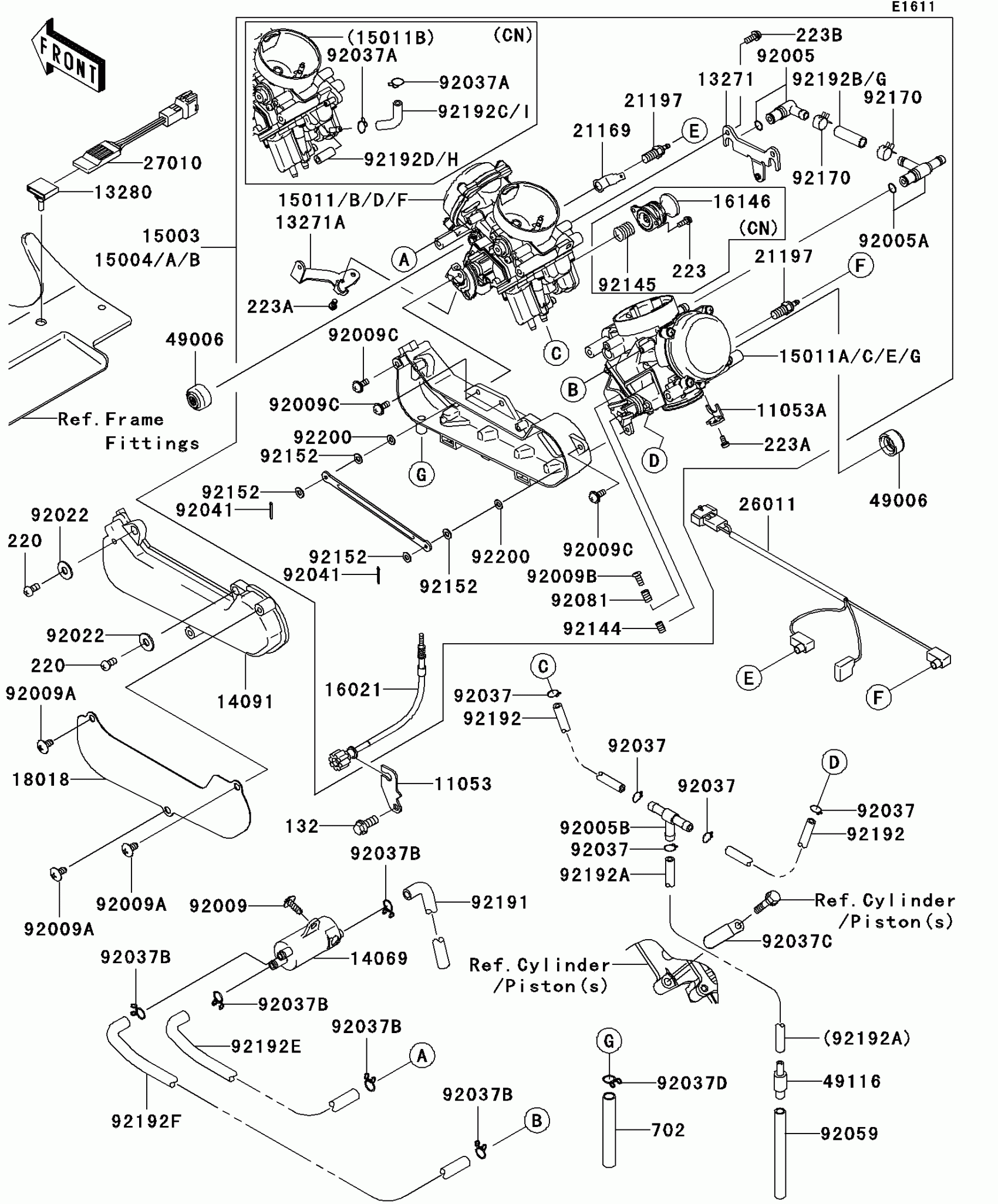

Kawasaki Brute Force® 650 4x4i Carburetor Diagram

#

Description
Price

11053

BRACKET

11053-1299

$4.25

11053A

BRACKET

11053-1606

$7.22

13271

PLATE

13271-0750

$12.95

13271A

PLATE

13271-0751

$11.05

13280

HOLDER,CARBURETOR

13280-1253

$3.88

14069

BREATHER

14069-0002

$18.36

14091

COVER

14091-0360

$6.31

15004A

CARBURETOR-ASSY,CVKR34

15004-0036

$1,382.43

15004B

CARBURETOR-ASSY,CVKR34

15004-0039

$1,282.54

15011D

CARBURETOR,FR

15011-0114

Unavailable

15011E

CARBURETOR,RR

15011-0115

Unavailable

15011F

CARBURETOR,FR

15011-0118

Unavailable

15011G

CARBURETOR,RR

15011-0119

$763.89

16021

SCREW-THROTTLE STOP

16021-0011

$70.48

16146

COVER-ASSY,PRIMING

16146-1225

$52.90

18018

PLATE-HEAT GUARD

18018-0004

$11.07

21169

TERMINAL

21169-0001

$2.25

21197

HEATER

21197-1006

$109.22

26011

WIRE-LEAD

26011-0030

$20.02

27010

SWITCH

27010-0013

$105.63

49006

BOOT,STARTER CABLE

49006-1353

$3.17

49116

VALVE-ASSY

49116-1126

$19.26

92005

FITTING

92005-0029

$23.27

132

BOLT-FLANGED-SMALL,6X14

132Y0614

Unavailable

220

SCREW PAN HEAD 4X8

220B0408

Unavailable

223

SCREW-PAN-WS-CROS

223C0412

$3.43

92005A

FITTING

92005-0030

$23.27

92005B

FITTING,TUBE,T-TYPE

92005-1017

Unavailable

92009

SCREW,TAPPING

92009-1113

$3.12

92009A

SCREW,6X12

92009-1480

$2.59

92009B

SCREW,SYNCHRONIZE

92009-1858

$2.15

92009C

SCREW

92009-1878

Unavailable

92022

WASHER,5.2X13X1

92022-1380

$3.43

92037

CLAMP,TUBE

92037-010

$3.12

92037A

CLAMP,TUBE

92037-1201

$3.65

92037B

CLAMP,TUBE

92037-147

$5.84

92037C

CLAMP,L=45

92037-1539

$4.42

92037D

CLAMP,TUBE

92037-1972

$3.43

92041

COTTER

92041-1061

$3.71

92059

TUBE,7X10X100

92059-1736

$3.54

92081

SPRING

92081-1620

$3.94

92144

SPRING

92144-1451

$9.29

92145

SPRING,PRIMING

92145-1451

$7.76

92152

COLLAR

92152-0268

$1.77

92170

CLAMP,TUBE

92170-1051

$8.75

92191

TUBE,7X11X470

92191-1531

$7.14

92192

TUBE,4.5X8X120

92192-0141

$2.08

92192A

TUBE,4.5X8X370

92192-0142

Unavailable

92192E

TUBE,AIR-VENT,FR

92192-0276

$5.24

92192F

TUBE,AIR-VENT,RR

92192-0277

Unavailable

92192G

TUBE

92192-0606

$13.05

92192H

TUBE

92192-0607

$7.02

92192I

TUBE

92192-0608

$13.07

92200

WASHER,LINK ARM,PLASTIC

92200-1432

Unavailable

223A

SCREW-PAN-WS-CROS,4X8

223D0408

$1.17

223B

SCREW-PAN-WS-CROS

223D0514

Unavailable

702

TUBE-RUBBER

702A09080

$2.49
