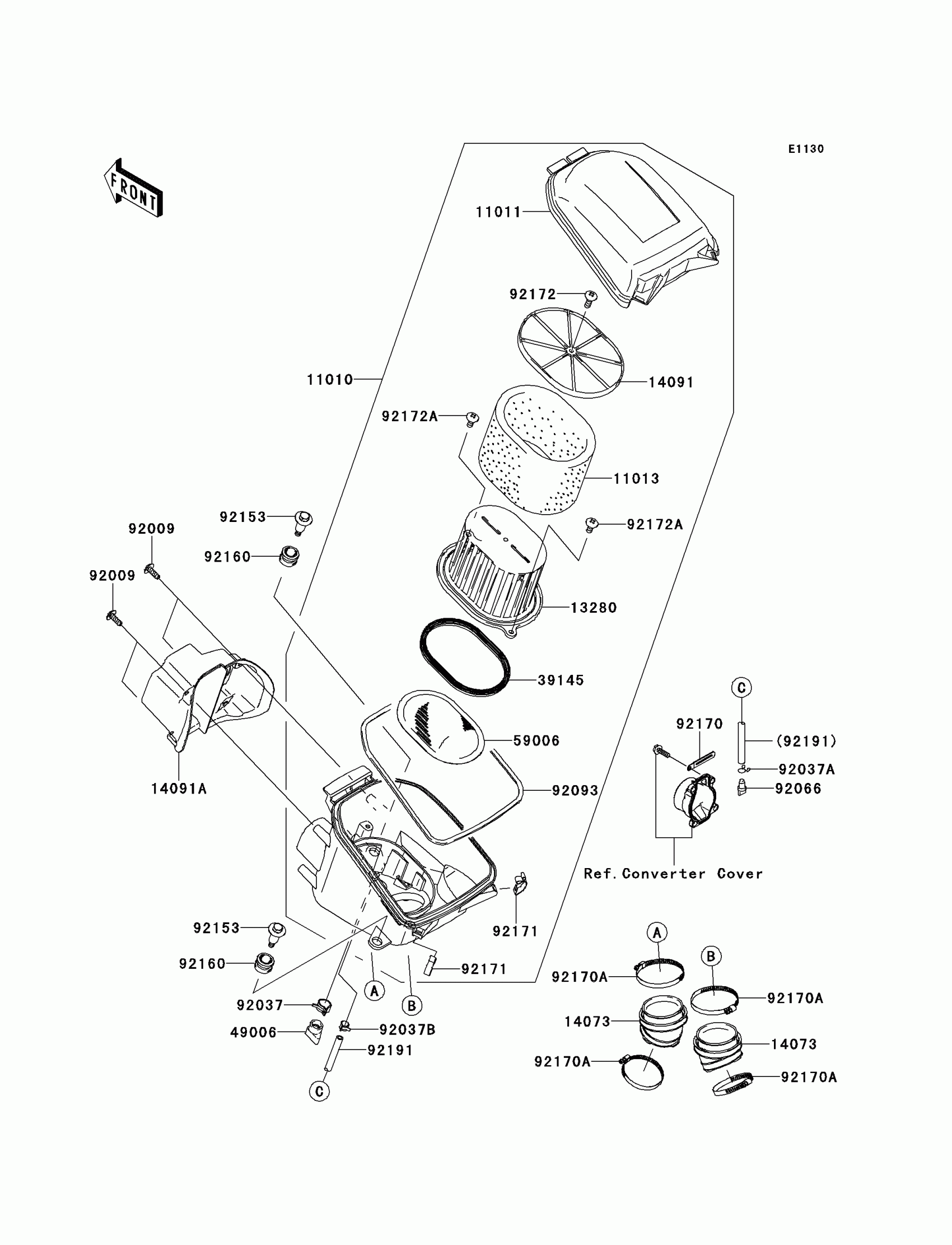

Kawasaki Brute Force® 650 4x4i Air Cleaner Diagram

Description

Price

11010

FILTER-ASSY-AIR,F.BLACK

11010-0125-6Z

Unavailable

11011

CASE-AIR FILTER,UPP,F.BLACK

11011-0017-6Z

Unavailable

11013

ELEMENT-AIR FILTER

11013-0021

$8.68

13280

HOLDER

13280-0048

$32.22

14073

DUCT,JOINT

14073-0030

$7.39

14091

COVER,ELEMENT

14091-0163

$6.38

14091A

COVER,FR

14091-0164

$15.93

39145

TRIM-SEAL

39145-0001

$5.97

49006

BOOT

49006-1292

$6.18

59006

ARRESTER-FLAME

59006-0002

$22.14

92009

SCREW,TAPPING

92009-1113

$3.12

92037

CLAMP,HOSE CLIP

92037-1460

$8.57

92037A

CLAMP,TUBE

92037-147

$5.84

92037B

CLAMP,TUBE

92037-1505

$3.78

92066

PLUG,DRAIN

92066-1211

$6.75

92093

SEAL

92093-0017

$6.26

92153

BOLT,FLANGED,6X28.7

92153-1052

$5.45

92160

DAMPER

92160-1594

$3.72

92170

CLAMP

92170-1514

$3.43

92170A

CLAMP

92170-1763

$4.51

92171

CLAMP

92171-0225

$1.68

92172

SCREW,6X18

92172-0130

$1.54

92172A

SCREW,6X14

92172-0131

$1.54

92191

TUBE,7X11X470

92191-1531

$7.14
