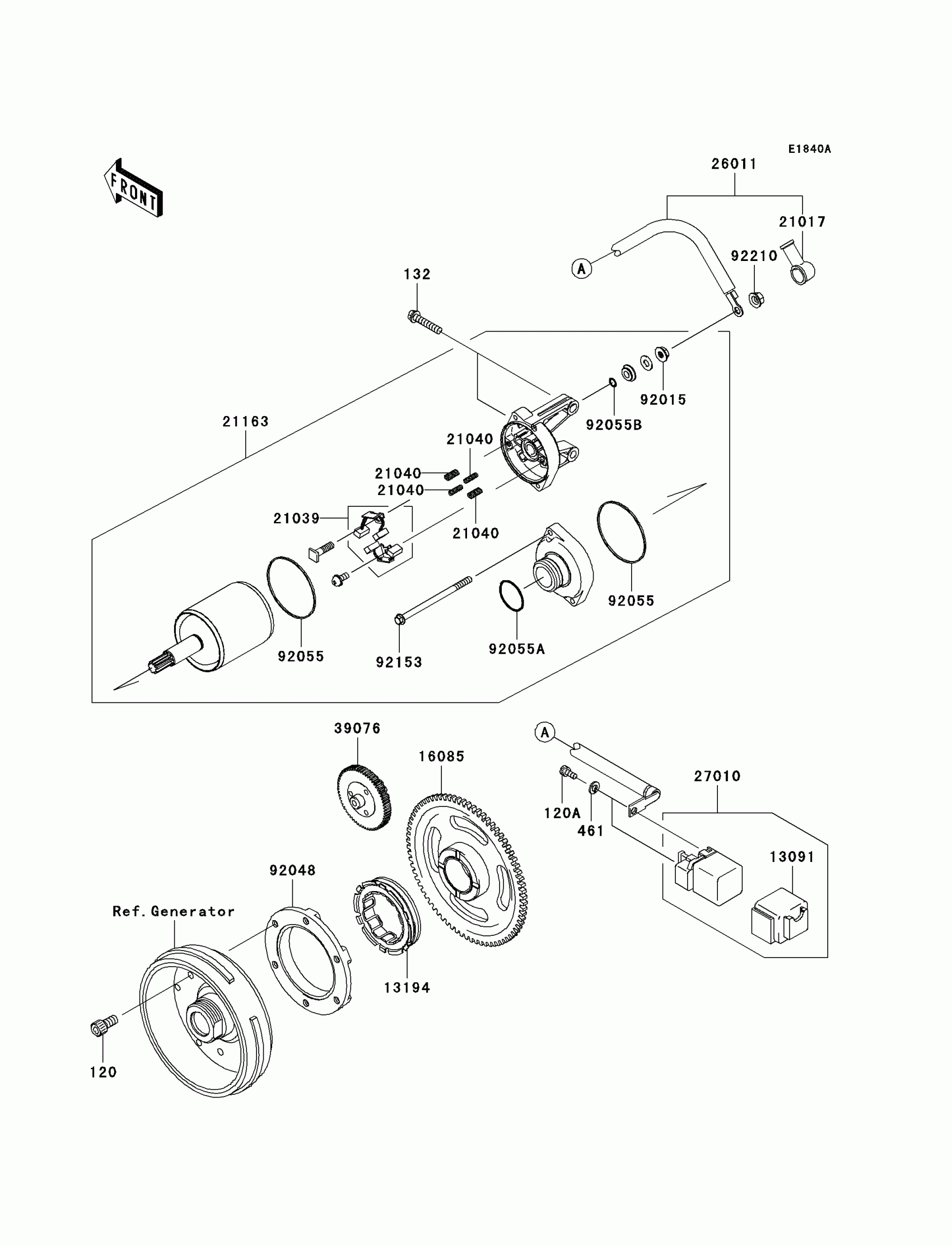

Kawasaki Brute Force® 650 4x4 Starter Motor(D9F/DAF) Diagram

Description

Price

120

BOLT-SOCKET,8X16

120CA0816

$3.53

120A

BOLT-SOCKET,5X10

120CB0510

$1.42

132

BOLT-FLANGED-SMALL,6X30

132BD0630

$2.92

461

WASHER-SPRING,5MM

461DB0500

$1.29

13091

HOLDER

13091-1992

$7.47

13194

CLUTCH-ONEWAY

13194-1094

$123.96

16085

GEAR,STARTER

16085-1238

$122.94

21017

GROMMET,STARTER TERMINAL

21017-017

$7.48

21039

BRUSH,CARBON

21039-0004

$120.17

21040

SPRING-BRUSH

21040-0003

$9.47

21163

STARTER-ELECTRIC

21163-0037

$763.64

26011

WIRE-LEAD,STARTER CABLE

26011-0110

$40.39

27010

SWITCH,MAGNETIC

27010-1376

Unavailable

39076

LIMITER,STARTER

39076-0005

$231.23

92015

NUT,STARTER MOTOR

92015-1476

$3.85

92048

RACE,ONE WAY CLUTCH

92048-0002

$106.45

92055

RING-O

92055-0136

$6.16

92055A

RING-O

92055-1276

$7.86

92055B

RING-O,4.5X2.0

92055-1370

$4.17

92153

BOLT

92153-1850

$11.42

92210

NUT,6MM

92210-0188

$1.81
