2005 Kawasaki Brute Force 650 4x4 Front Master Cylinder Diagram

← All diagrams

Find the part on the Front Master Cylinder diagram for your 2005 Kawasaki Brute Force 650 4x4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

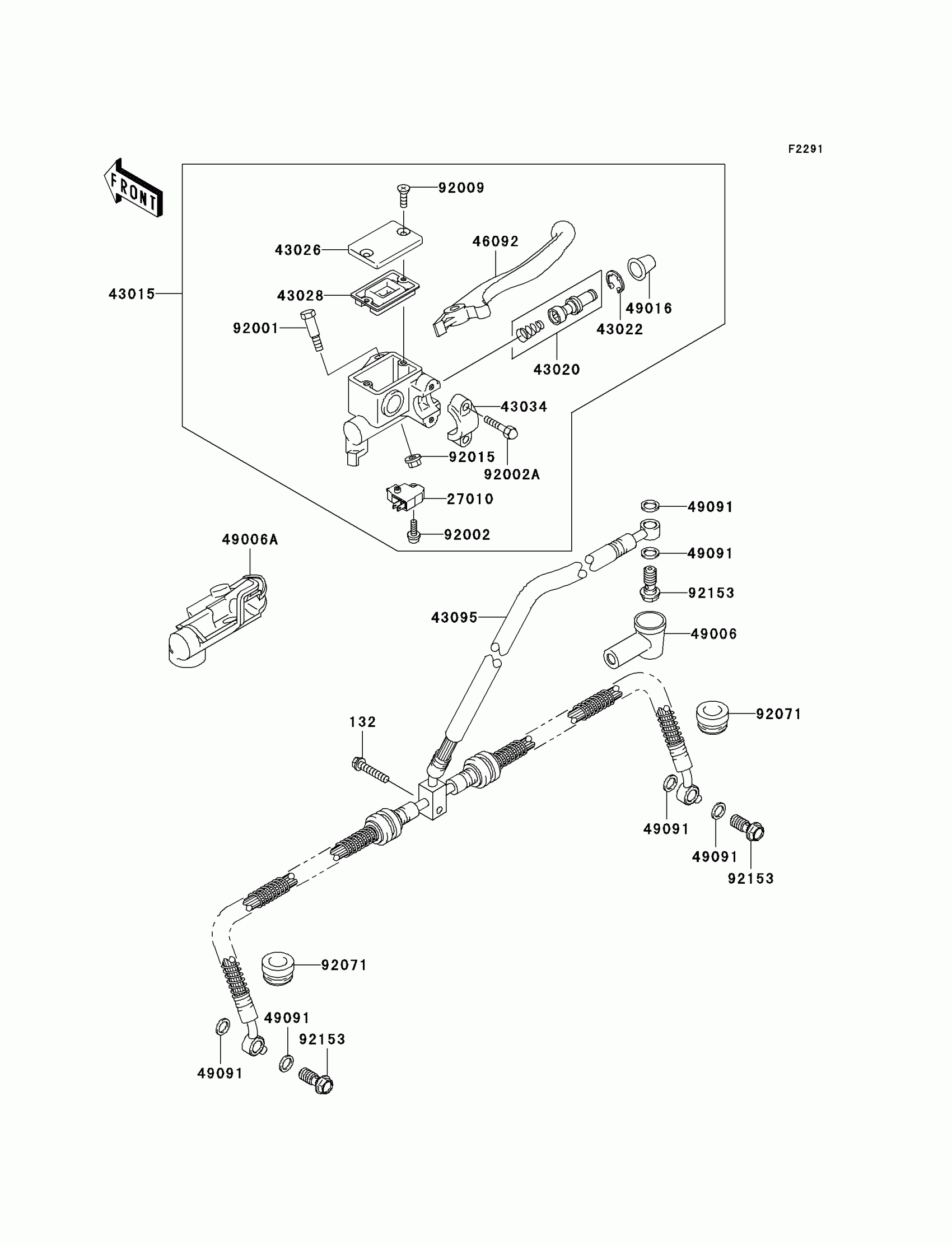

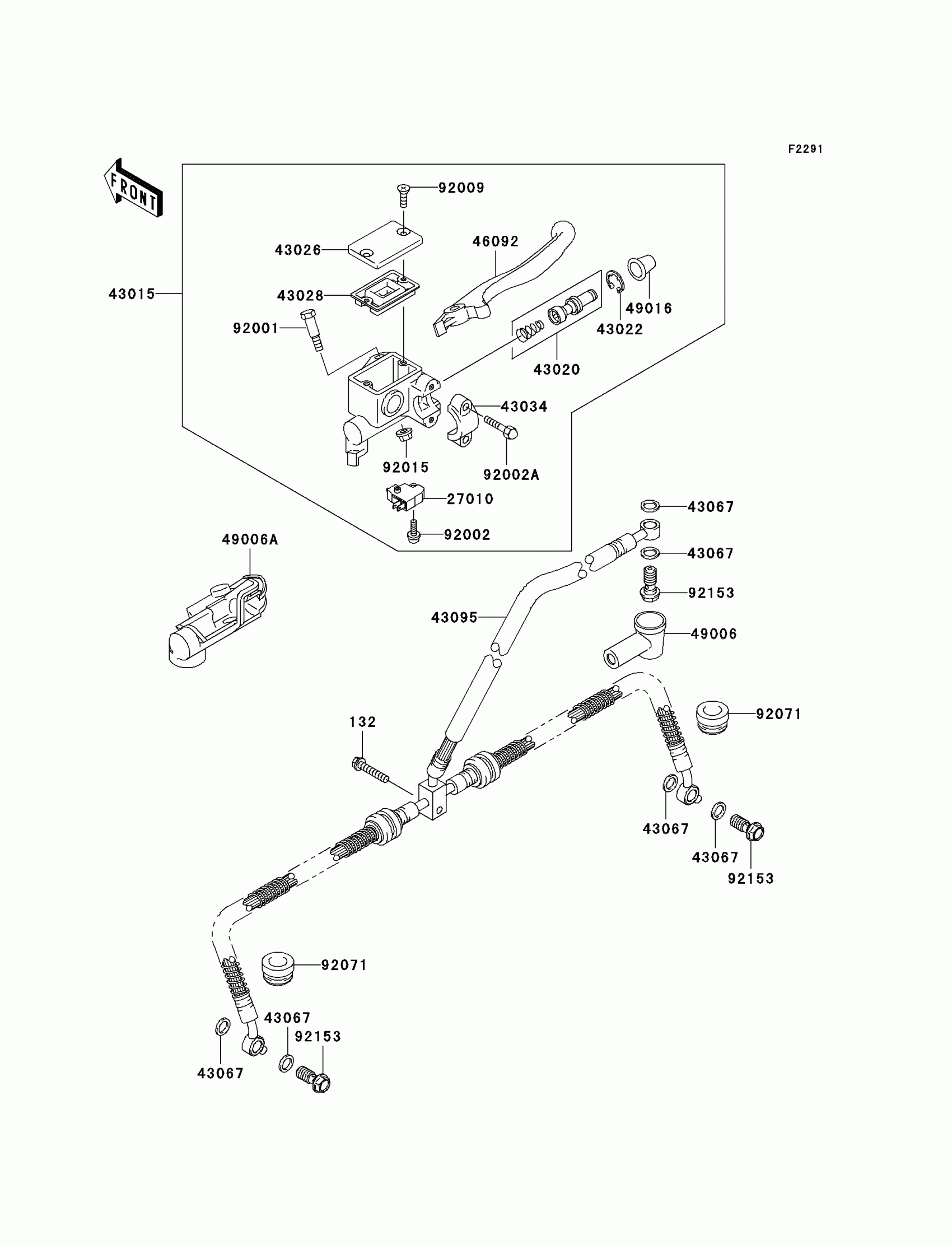

2005 Kawasaki Brute Force 650 4x4 Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL,6X30

132J0630

1
Out of stock

27010

SWITCH,BRAKE

27010-0025

1

$33.39

In stock

43015

1

$396.73

In stock

43020

1

$59.90

In stock

43022

1

$3.69

In stock

43026

CAP-BRAKE

43026-1074

1

$23.33

In stock

43028

DIAPHRAGM

43028-1061

1

$12.79

In stock

43034

1

$15.29

In stock

43067

WASHER,10.5X15X1.5

43067-001

1

$1.81

In stock

43095

HOSE-BRAKE,FR

43095-1401

1

$161.91

In stock

46092

1

$19.94

In stock

49006

BOOT,DUST

49006-1040

1

$9.11

In stock

49006A

BOOT

49006-1338

1

$10.03

In stock

49016

1

$6.90

In stock

92001

1

$11.26

In stock

92002

BOLT,SCREW,4X12

92002-1323

1

$3.12

In stock

92002A

BOLT

92002-1894

1
Out of stock

92009

SCREW,4MM

92009-1458

1
Out of stock

92015

NUT,FLANGED,6MM,BLACK

92015-1233

1
Out of stock

92071

GROMMET

92071-1264

1

$3.46

In stock

92153

BOLT,OIL,L=23

92153-0627

1
Out of stock
