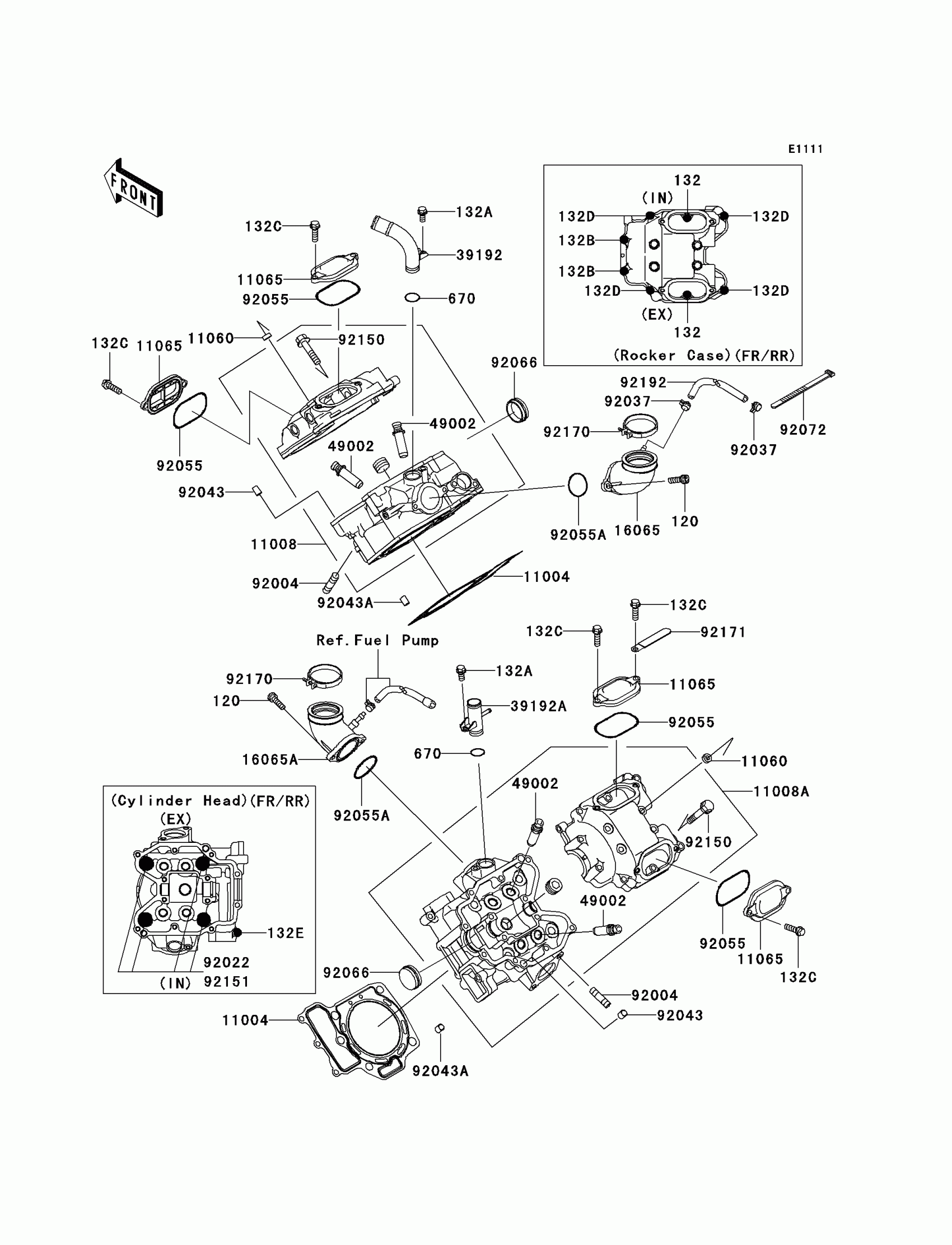

Find the part on the Cylinder Head diagram for your 2005 Kawasaki Brute Force 650 4x4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki Brute Force 650 4x4 Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X20

120Z0620

1
Out of stock

132

BOLT-FLANGED-SMALL,6X25

132H0625

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X12

132Y0612

1
Out of stock

132B

BOLT-FLANGED-SMALL,6X130

132Y06130

1
Out of stock

132C

BOLT-FLANGED-SMALL,6X20

132Y0620

1
Out of stock

132D

BOLT-FLANGED-SMALL,6X30

132Y0630

1
Out of stock

132E

BOLT-FLANGED-SMALL

132Y0695

1
Out of stock

670

O RING,16MM

670B2016

1
Out of stock

11004

GASKET-HEAD

11004-0030

1
Out of stock

11008

HEAD-COMP-CYLINDER,FR

11008-0030

1
Out of stock

11008A

HEAD-COMP-CYLINDER,RR

11008-0031

1
Out of stock

11060

GASKET,6.2X12X0.3

11060-1994

1
Out of stock

11065

CAP,ROCKER CASE

11065-1152

1
Out of stock

16065

HOLDER-CARBURETOR,FR

16065-1370

1
Out of stock

16065A

HOLDER-CARBURETOR,RR

16065-1371

1
Out of stock

39192

PIPE-WATER

39192-1132

1

$19.47

In stock

39192A

PIPE-WATER

39192-1133

1

$27.87

In stock

49002

GUIDE-VALVE

49002-1097

—
Out of stock

92004

STUD,8X22

92004-1217

1
Out of stock

92022

WASHER,11.5X20.5X1.6

92022-1720

1
Out of stock

92043

PIN,6.2X8X14

92043-1263

1
Out of stock

92043A

PIN,10.1X12X14

92043-4009

1
Out of stock

92055

RING-O,38MM

92055-1295

1
Out of stock

92055A

RING-O,55.6X2.4

92055-1644

1
Out of stock

92066

PLUG

92066-1289

1
Out of stock

92068

PLUG,12X25

92068-006

1
Out of stock

92150

BOLT,6X55

92150-1302

1
Out of stock

92151

BOLT,FLANGED,10X150

92151-1917

1
Out of stock

92170

CLAMP

92170-1722

1

$7.18

In stock
