2025 Kawasaki Brute Force 450 Front Fender Diagram

← All diagrams

Find the part on the Front Fender diagram for your 2025 Kawasaki Brute Force 450, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

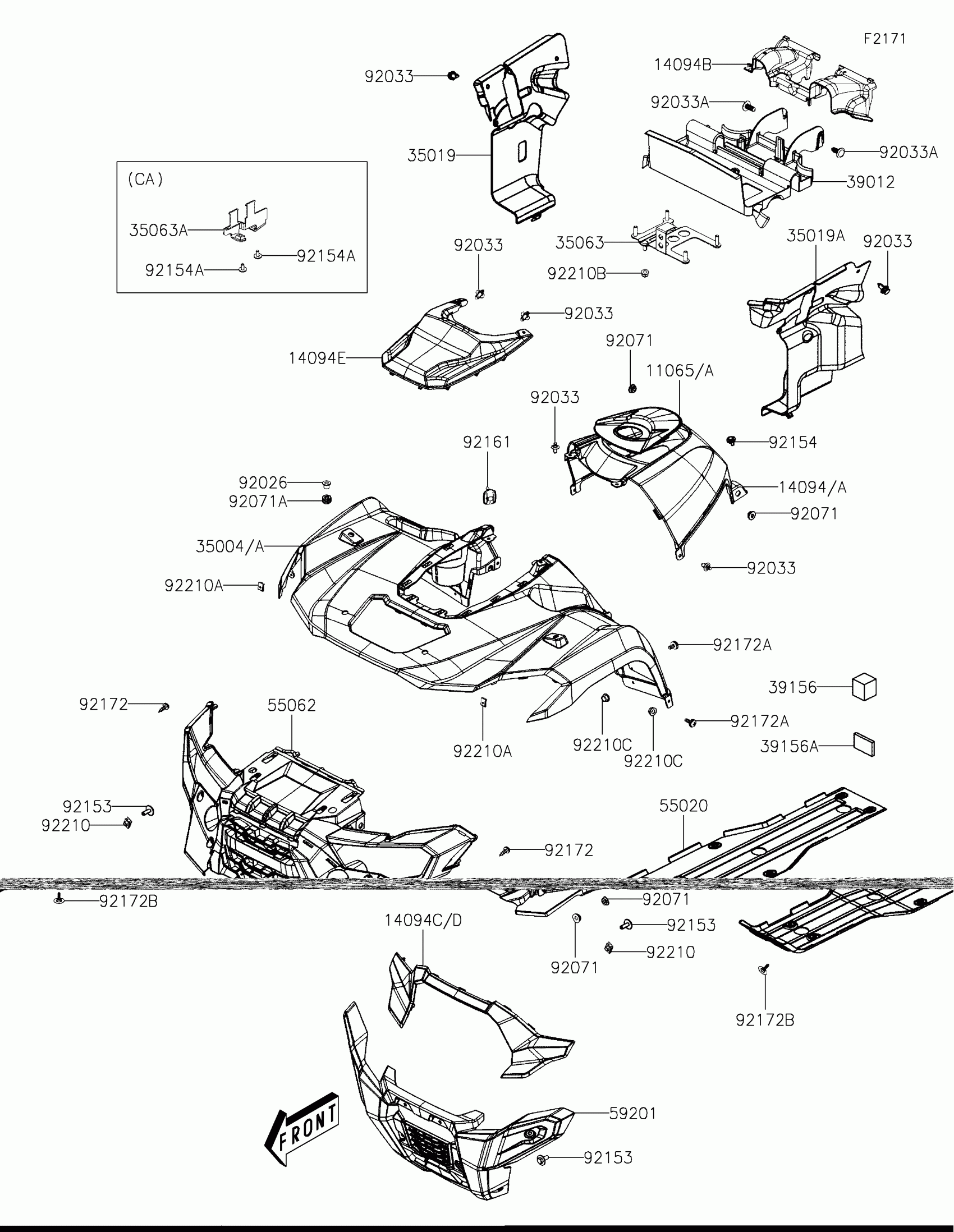

2025 Kawasaki Brute Force 450 Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP,TANK COVER,B.WHITE

11065-Y055-932

1
Out of stock

11065A

CAP,TANK COVER,G.BLUE

11065-Y055-984

1
Out of stock

14094

COVER,FUEL TANK,B.WHITE

14094-Y006-932

1
Out of stock

14094A

COVER,FUEL TANK,G.BLUE

14094-Y006-984

1
Out of stock

14094B

COVER,WATERPROOF,S.BLACK

14094-Y014-933

1
Out of stock

14094C

COVER,FR GRILL,B.WHITE

14094-Y016-932

1
Out of stock

14094D

COVER,FR GRILL,G.BLUE

14094-Y016-984

1
Out of stock

14094E

COVER,TOP,S.BLACK

14094-Y017-933

1
Out of stock

35004

FENDER-FRONT,B.WHITE

35004-Y015-932

1
Out of stock

35004A

FENDER-FRONT,G.BLUE

35004-Y015-984

1
Out of stock

35019

FLAP,RH,S.BLACK

35019-Y008-933

1
Out of stock

35019A

FLAP,LH,S.BLACK

35019-Y009-933

1
Out of stock

35063

STAY,ECU

35063-Y054

1
Out of stock

35063A

STAY,CANISTER

35063-Y057

1
Out of stock

39012

CASE-STORAGE,ELECTRICAL,S.BLK

39012-Y003-933

1
Out of stock

39156

PAD,TANK COVER,RR

39156-Y010

1
Out of stock

39156A

PAD,TANK COVER,FR

39156-Y011

1
Out of stock

55020

GUARD,SKID,S.BLACK

55020-Y022-933

1
Out of stock

55062

COVER-HEAD LAMP,S.BLACK

55062-Y001-933

1
Out of stock

59201

BUMPER,FR,S.BLACK

59201-Y002-933

1
Out of stock

92026

SPACER

92026-Y015

1
Out of stock

92033

RIVET

92033-Y010

1
Out of stock

92033A

RIVET

92033-Y032

1
Out of stock

92071

GROMMET

92071-Y005

1
Out of stock

92071A

GROMMET

92071-Y009

1
Out of stock

92153

BOLT,6X16

92153-Y018

1
Out of stock

92154

BOLT,6X12

92154-Y032

1
Out of stock

92154A

BOLT,5X16

92154-Y085

1
Out of stock

92161

DAMPER,FR FENDER

92161-Y063

1
Out of stock

92172

SCREW,TAPPING,5X12

92172-Y038

1
Out of stock

92172A

SCREW,6X20

92172-Y041

1
Out of stock

92172B

SCREW

92172-Y106

1
Out of stock

92210

NUT,6MM

92210-Y011

1
Out of stock

92210A

NUT,5MM

92210-Y016

1
Out of stock

92210B

NUT,6MM

92210-Y026

1
Out of stock

92210C

NUT

92210-Y031

1
Out of stock
