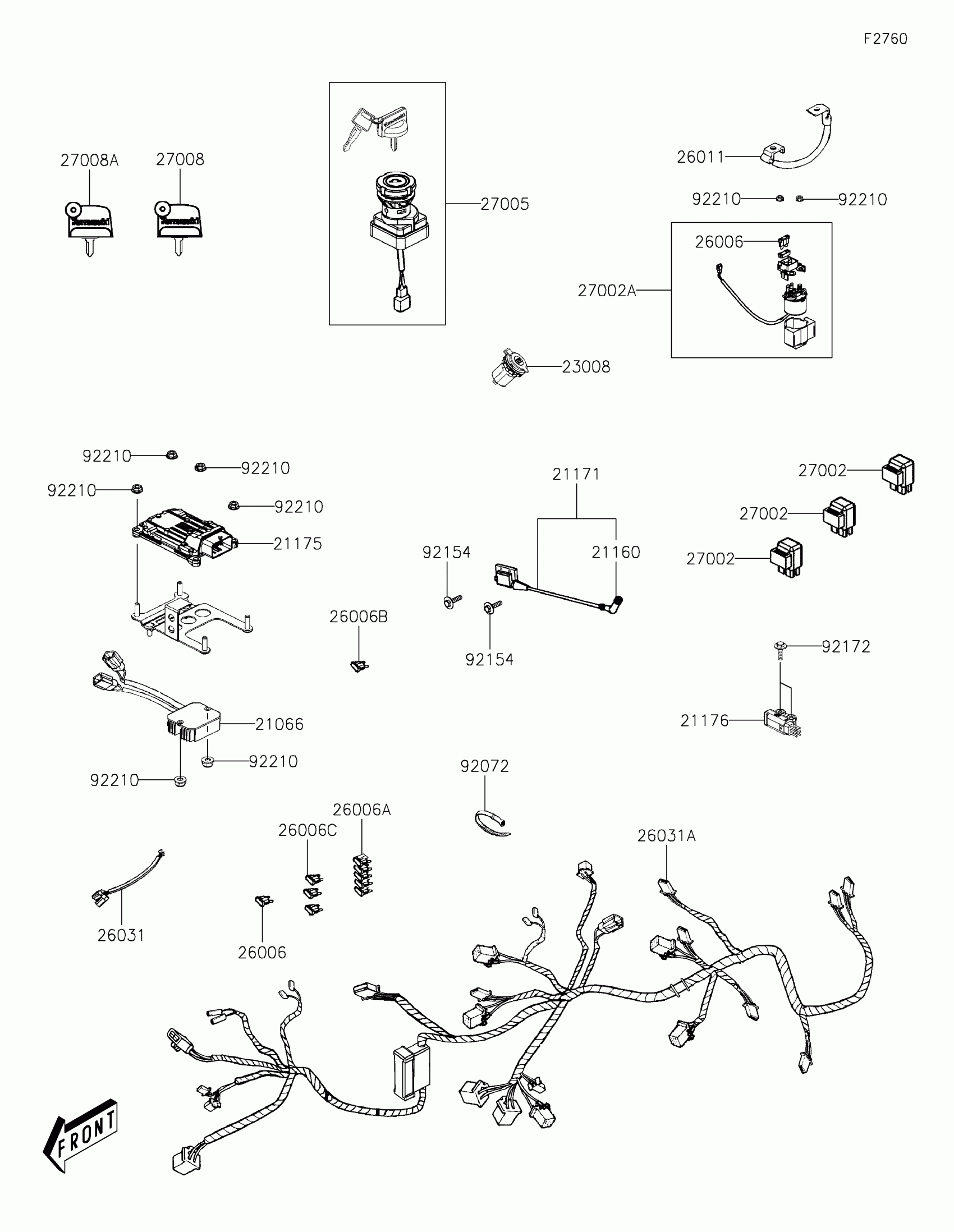

Kawasaki Brute Force 450 Chassis Electrical Equipment Diagram

Description

Price

21066

REGULATOR-VOLTAGE

21066-Y005

$157.59

21160

CAP-ASSY-PLUG

21160-Y001

$30.43

21171

COIL-ASSY-IGNITION

21171-Y005

$75.68

21175

CONTROL UNIT-ELECTRONIC

21175-Y010

$251.79

21176

SENSOR,VEHICLE-DOWN

21176-Y014

$76.04

23008

SOCKET-ASSY,DC12V

23008-Y006

$26.12

26006

FUSE,BLADE,30A

26006-Y004

$2.71

26006A

FUSE,10A

26006-Y007

$6.14

26006B

FUSE,5A

26006-Y013

$5.02

26006C

FUSE,15A

26006-Y014

$5.02

26011

WIRE-LEAD,BATTERY

26011-Y021

$13.85

26031

HARNESS,SUB

26031-Y004

$4.29

26031A

HARNESS,MAIN

26031-Y040

$494.44

27002

RELAY-ASSY,LIGHT

27002-Y004

$31.19

27002A

RELAY-ASSY,START

27002-Y013

$50.03

27005

SWITCH-ASSY-IGNITION

27005-Y005

$53.49

27008

KEY-LOCK,BLANK

27008-Y010

$19.93

27008A

KEY-LOCK,BLANK

27008-Y011

$19.93

92072

BAND

92072-Y003

$1.61

92154

BOLT,4X25

92154-Y240

$4.93

92172

SCREW,4X22

92172-Y104

$4.14

92210

NUT,6MM

92210-Y027

$0.80
