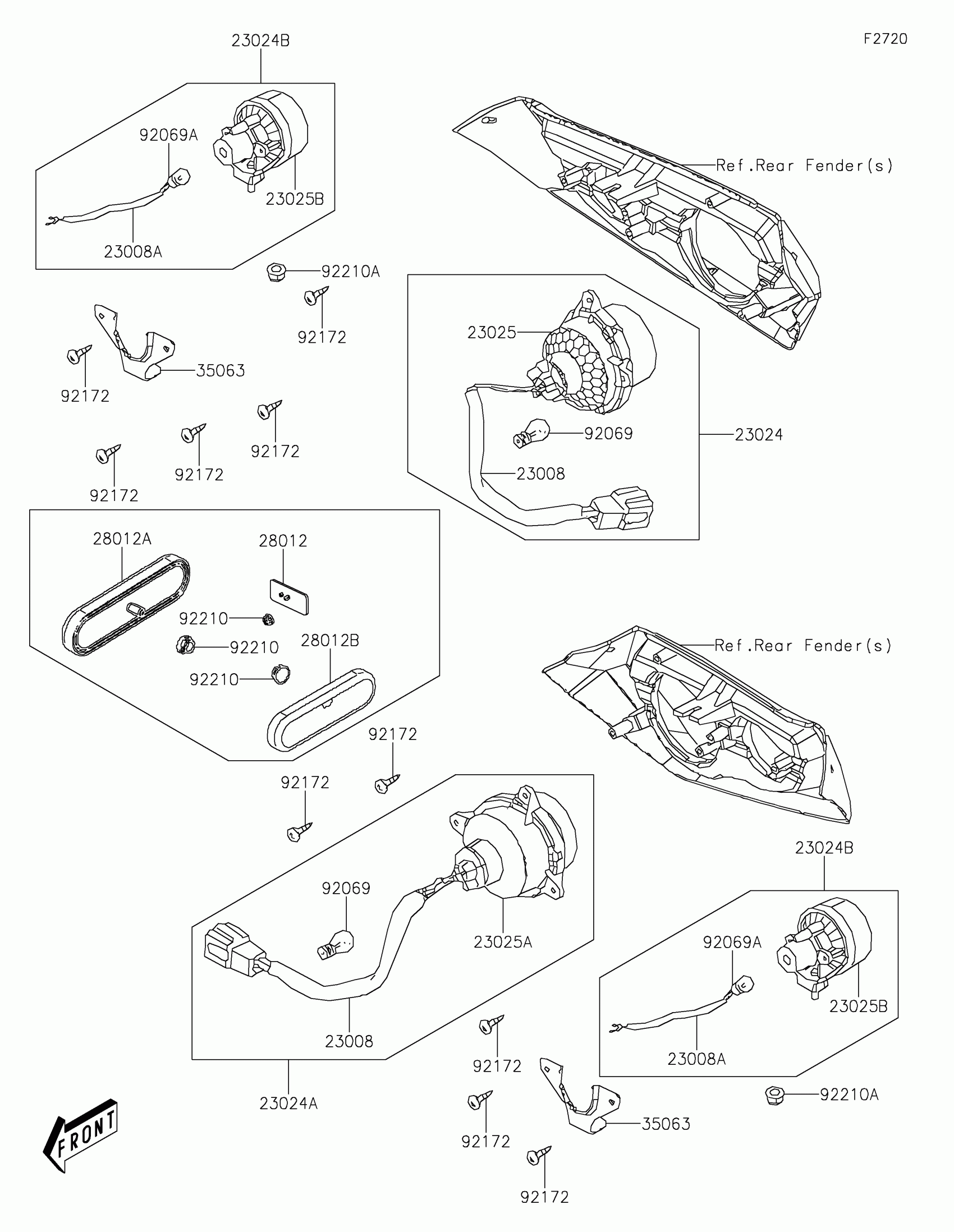

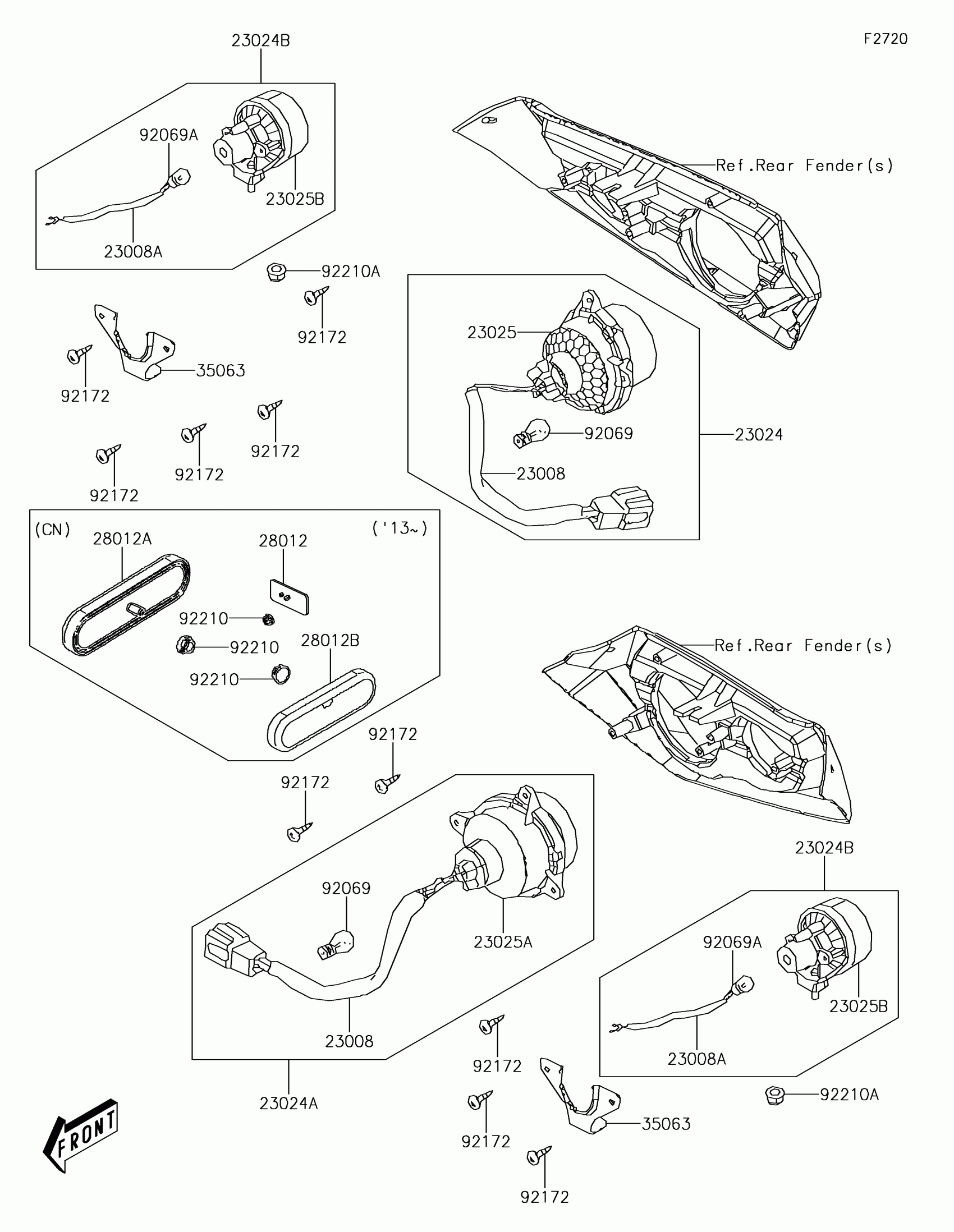

Kawasaki BRUTE FORCE® 300 Taillight(s) Diagram

Description

Price

23008

SOCKET-ASSY,TAIL LAMP

23008-Y004

$18.63

23008A

SOCKET-ASSY

23008-Y005

$15.66

23024

LAMP-ASSY-TAIL,RH

23024-Y001

$65.08

23024A

LAMP-ASSY-TAIL,LH

23024-Y002

$65.08

23024B

LAMP-ASSY-TAIL

23024-Y003

$50.97

23025

LAMP-TAIL,RH

23025-Y003

$36.00

23025A

LAMP-TAIL,LH

23025-Y004

$36.00

23025B

LAMP-TAIL

23025-Y005

$25.07

28012

REFLECTOR-REFLEX

28012-Y003

$5.75

28012A

REFLECTOR-REFLEX

28012-Y005

$8.10

28012B

REFLECTOR-REFLEX

28012-Y006

$6.32

35063

STAY,TAIL LAMP

35063-Y009

$3.27

92069

BULB

92069-Y001

$4.93

92069A

BULB,12V 5W

92069-Y004

$9.02

92172

SCREW,TAPPING,5X16

92172-Y020

$1.23

92210

NUT,FLANGE,5MM

92210-Y033

$0.76

92210A

NUT,FLANGE,5MM

92210-Y053

$0.93
