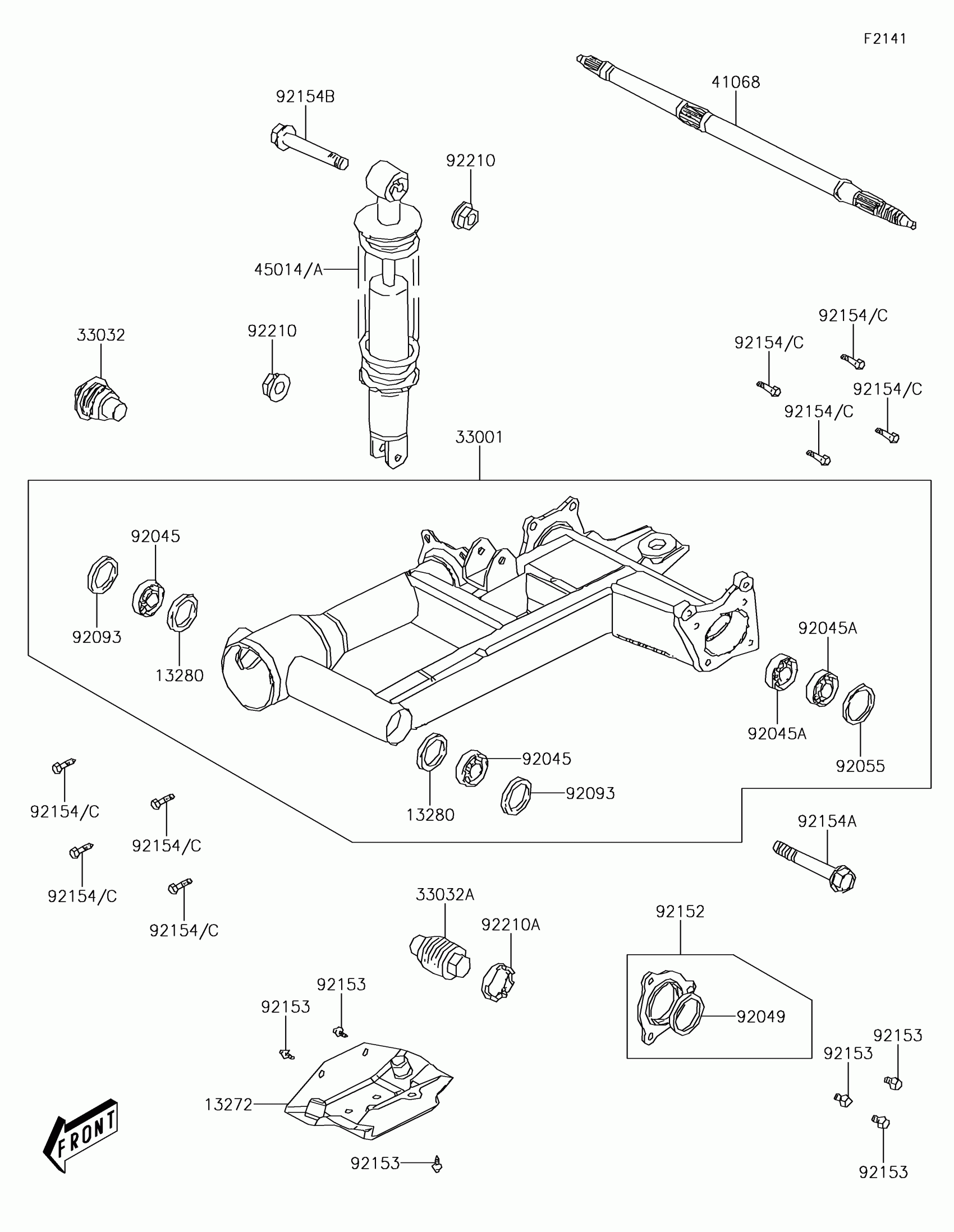

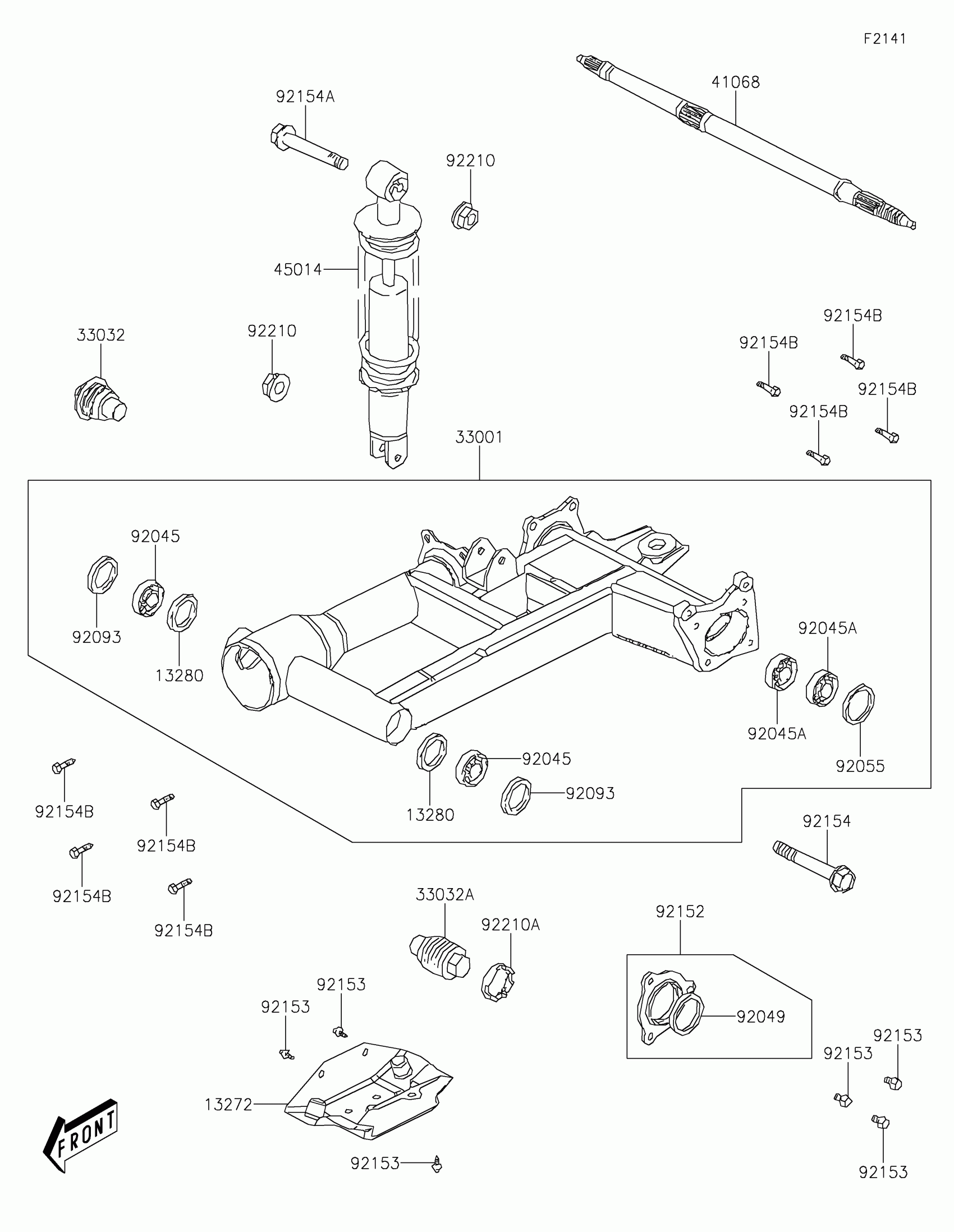

Kawasaki BRUTE FORCE® 300 Swingarm Diagram

Description

Price

13272

PLATE

13272-Y009

$53.95

13280

HOLDER

13280-Y016

$2.82

33001

ARM-COMP-SWING

33001-Y003

$438.85

33032

SHAFT-SWING ARM

33032-Y001

$19.93

33032A

SHAFT-SWING ARM

33032-Y002

$24.10

41068

AXLE,RR

41068-Y002

$231.56

45014A

SHOCKABSORBER,RR,GREEN

45014-Y005-966

$234.49

92045

BEARING-BALL,30203

92045-Y027

$45.08

92045A

BEARING-BALL,6006

92045-Y028

$33.09

92049

SEAL-OIL,38.2X47X6

92049-Y019

$5.51

92055

RING-O,58.4X3

92055-Y030

$3.46

92093

SEAL,DUST,26X40X5

92093-Y014

$5.47

92152

COLLAR

92152-Y024

$45.97

92153

BOLT,FLANGE,8X12

92153-Y031

$1.41

92154A

BOLT,FLANGE,10X53

92154-Y043

$5.61

92154B

BOLT,FLANGE,10X57

92154-Y044

$5.78

92154C

BOLT,FLANGE,10X25

92154-Y139

$3.83

92210

NUT,10MM

92210-Y009

$2.17

92210A

NUT,LOCK

92210-Y051

$13.71
